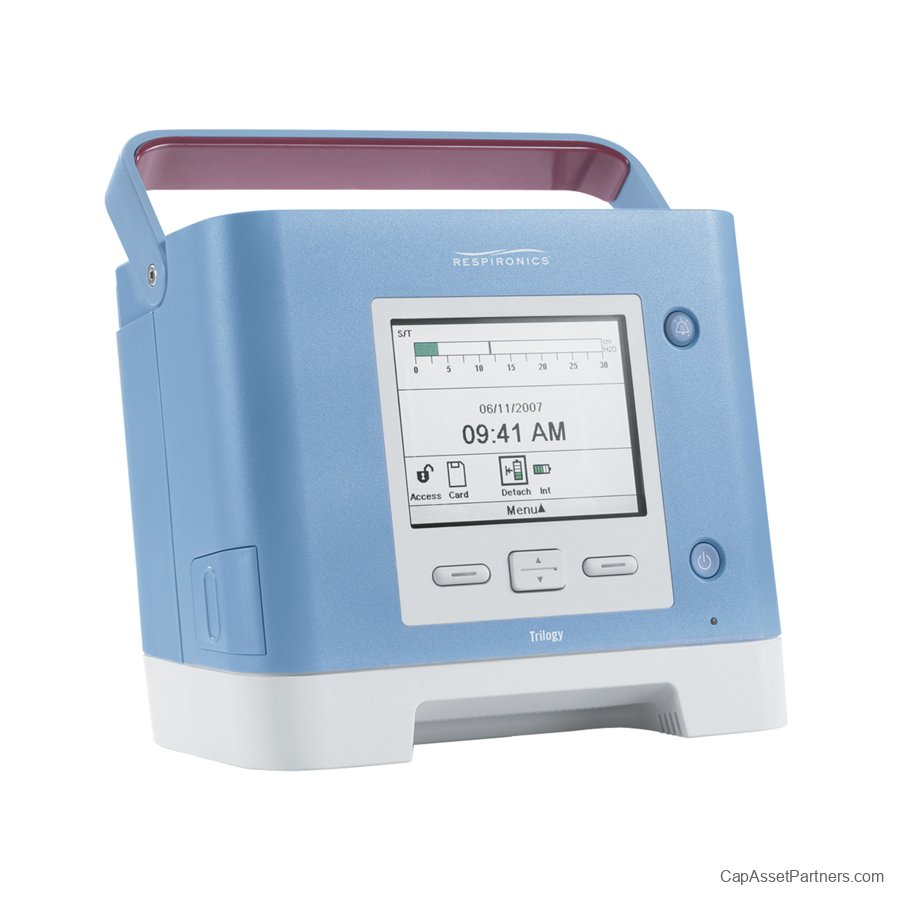

Respironics Trilogy 100 Ventilator

Product Description: Respironics Trilogy 100 Ventilator
The Respironics Trilogy 100 Ventilator is a versatile, portable life-support solution designed to cater to the unique needs of both adult and pediatric patients in diverse settings, including home care and alternative care sites. This state-of-the-art ventilator offers both non-invasive and invasive ventilation support, ensuring optimal patient comfort and care.
One of the standout features of the Trilogy 100 is its dual circuit options, allowing users to choose between a passive circuit with an exhalation port or an active circuit equipped with an exhalation valve and proximal pressure line. This flexibility enhances patient management across various treatment scenarios.
Equipped with an SD card, the Trilogy 100 stores vital ventilation data, making it easy for healthcare providers to monitor patient progress and make necessary adjustments. With the assistance of DirectView software, clinicians can analyze this data for improved ventilation therapy management.
The ventilator's range of compatible accessories, including disposable circuits, leverages advanced technology to optimize patient ventilation, ensuring effective treatment and superior patient care.
Key Features:

• Advanced Ventilation Technologies: When using the passive circuit, the Trilogy 100 incorporates renowned Respironics technologies such as advanced leak compensation for both invasive and non-invasive ventilation modes. The Auto-TRAK algorithm automatically adjusts trigger and cycle thresholds for optimal sensitivity, eliminating the need for constant manual adjustments. The AVAPS (Average Volume Assured Pressure Support) feature also enhances ventilation in pressure modes.

• User-Friendly Interface: The intuitive design of the Trilogy 100 allows for easy navigation, combining high performance with versatility, making it suitable for both hospital and home care environments.

• Long Battery Life: Offering up to 6 to 8 hours of battery capacity, the Trilogy 100 is designed for continuous use, providing caregivers and patients peace of mind during therapy.

• Comprehensive Monitoring: The ventilator provides 72 hours of raw data for breath-by-breath waveform monitoring, along with daily reports of therapy for the past 30 days. Additionally, graphical trend overviews for the past 12 months give valuable insights into crucial metrics such as pressure, breath rate, and tidal volume, assisting healthcare providers in maintaining effective care.

The Respironics Trilogy 100 Ventilator is a reliable partner for respiratory management, enhancing patient comfort and care with its innovative features and advanced technology.

Respironics Trilogy 100 Ventilator Specifications

Environmental

• Temperature: 5°C – 40°C (41°F – 104°F)

• Relative Humidity: 15% – 95%

• Atmospheric Pressure: 110 kPa to 60 kPa (16.0 psi to 8.7 psi)

Physical

• Weight: 11 lbs (5 kg)

• Length: 6.6 in (16.68 cm)

• Width: 11.2 in (28.45 cm)

• Height: 9.3 in (23.52 cm)

Controls

• Circuit Types: Active with PAP, Passive

• Ventilation Modes:

• Volume Control

• Pressure Control

• Bilevel Volume Modes

• AC, SIMV (w/PS), CV

• Pressure Modes:

• CPAP, S, S/T, T, PC-SIMV (w/PS)

• IPAP: 4 – 50 cm H?O

• EPAP:

• Active Circuits: 0 – 25 cm H?O

• Passive Circuits: 4 – 25 cm H?O

• CPAP: 4 – 20 cm H?O (Passive Circuits)

• PEEP:

• Active Circuits: 0 – 25 cm H?O

• Passive Circuits: 4 – 25 cm H?O

• Pressure Support Differential: 0 – 30 cm H?O

Measured Patient Parameters

• Tidal Volume: 50 – 2000 ml

• Breath Rate:

• AC Mode: 0 – 60

• All Other Modes: 1 – 60

• Inspiratory Time: 0.3 – 5.0 secs

• Rise Time: 1 – 6

• Ramp Start Pressure:

• Active Circuits: 0 – 25 cm H?O

• Passive Circuits: 4 – 25 cm H?O

• CPAP Mode: 4 – 19 cm H?O

• Ramp Length: Off, 5 – 45 minutes

• Flex: Off, 1 – 3

Flow and Pressure Metrics

• Flow Trigger Sensitivity: 1 – 9 l/min

• Flow Cycle: 10% – 90%

• Apnea Rate: 4 – 60 BPM

• Minute Ventilation: 0 – 99 l/min

• Leak Rate: 0 – 200 l/min

• Respiratory Rate: 0 – 80 BPM

• Peak Inspiratory Flow: 0 – 200 l/min

• Peak Inspiratory Pressure: 0 – 99 cm H?O

• Mean Airway Pressure: 0 – 99 cm H?O

• Percentage Patient Triggered Breaths: 0 – 100%

• I:E Ratio: 9.9:1 to 1:9.9

Alarms

• Circuit Disconnect: Off, 10 – 60 secs

• Apnea: Off, 10 – 60 secs

• High Tidal Volume: Off, 50 – 2000 ml

• Low Tidal Volume: Off, 50 – 2000 ml

• High Minute Ventilation: Off, 0.1 – 99 l/min

• Low Minute Ventilation: Off, 0.1 – 99 l/min

• High Respiratory Rate: Off, 4 – 80 BPM

• Low Respiratory Rate: Off, 4 – 80 BPM
