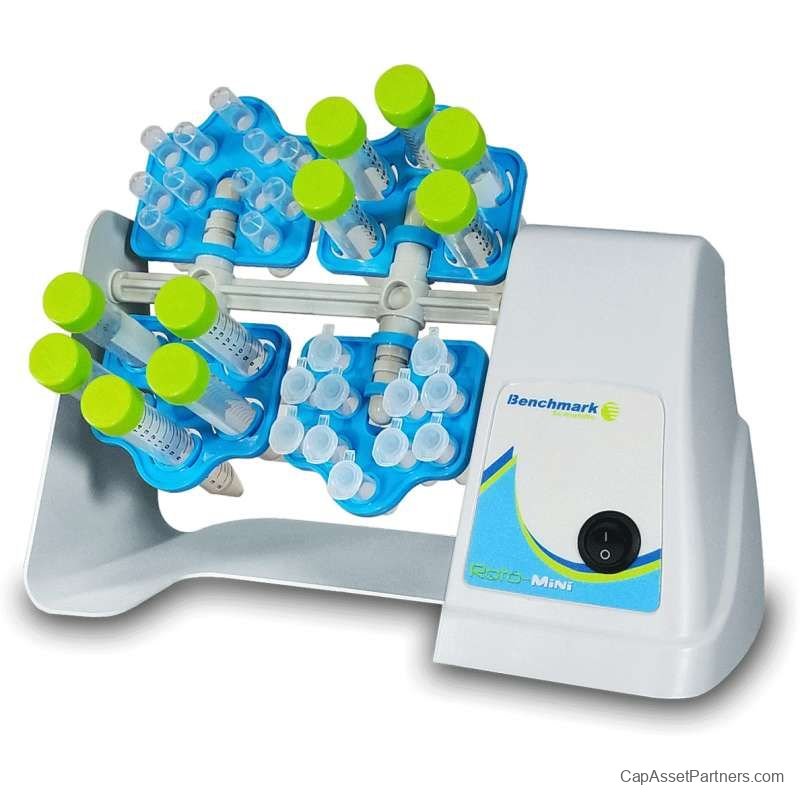

Roto-Mini™ Rotator Series
In Stock!
Lead Times May Vary.
Overview
The Roto-Mini™ Rotator Series is engineered for diverse laboratory applications, including resuspension, protein binding, and nucleic acid purification. Its innovative design accommodates a wide variety of tube sizes, making it an essential tool for any lab setting.
Key Features
- Includes interchangeable tube holders for common tube sizes ranging from 0.5ml to 50ml.
- Adjustable mixing motions: switch between vertical (end over end) and horizontal (rolling or hybridization) mixing.
Plus Configuration Features
The Roto-Mini™ is also available in a “Plus” configuration for enhanced functionality:
- Variable Speed Control: Operating speeds ranging from 5 to 70 rpm.
- Mix Function: Integrates rotating and oscillating movements for increased mixing efficiency.
- Pause Function: Features intermittent stops to optimize mixing periods.
- Rock Function: Provides a gentle rocking motion (see-saw) to enhance solution interaction.
The Plus models come equipped with an additional rocking platform (4.5 x 3 in.) and a specialized holder for 96 x 0.2ml tube/strip/plate combinations, facilitating efficient mixing of PCR vessels in the “Mix” (oscillating) mode.
Specifications
| Specifications |
R2020 |
R2024 |
| Speed |
24 rpm |
5 to 70 rpm |
| Mixing Modes |
Mix, Pause, Rock |
Mix, Pause, Rock |
| Dimensions |
10.8 x 6 x 6.5 in (27.5 x 15.2 x 16.5cm) |
10.8 x 6 x 6.5 in (27.5 x 15.2 x 16.5cm) |
| Weight |
3 lbs (1.4 kg) |
3 lbs (1.4 kg) |
