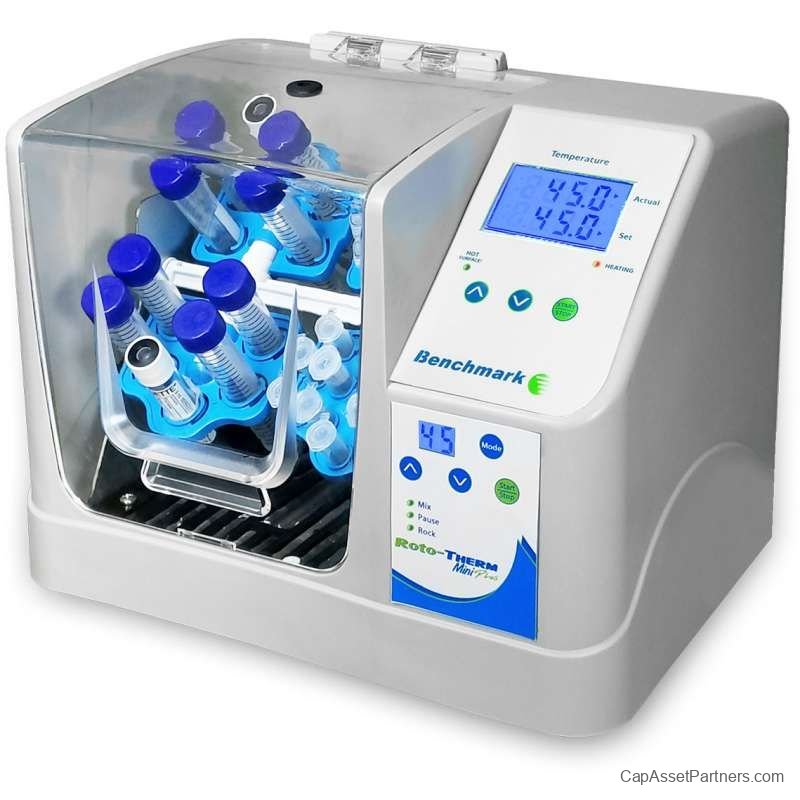

Roto-Therm™ Incubated Tube Rotators
The Roto-Therm™ series of incubated rotating mixers is engineered to provide versatile mixing capabilities required for a broad spectrum of laboratory applications. Whether it's resuspension, protein binding, nucleic acid purification, histochemistry, or hybridization, this innovative equipment meets the demands of modern research.
The unit features interchangeable tube holders, accommodating a variety of common tube sizes from 0.5ml to 50ml. Users can seamlessly adjust the mixing motion, choosing between vertical (end-over-end) mixing and horizontal (rolling or hybridization style) mixing for optimal results.
Designed with temperature sensitivity in mind, the Roto-Therm™ can be digitally programmed to maintain chamber temperatures from ambient +5°C to 60°C. An in-lab calibration function ensures precise temperature control, allowing for accuracy in sensitive experiments.
Key Features:
- Rotated mixing with integrated temperature control
- Includes interchangeable tube holders for standard tube sizes
- Variable speed control options with advanced mixing modes: Mix (Oscillating), Pause, Rock
- Available in 230V options—it’s advisable to inquire for further details
For enhanced functionality, the Roto-Therm™ is also offered in a "Plus" configuration, which includes:
- Variable speed settings ranging from 5 to 70 RPM
- Mix function for combined rotating and oscillating action resulting in increased mixing efficacy
- Pause function allowing for intermittent stops during rotation, optimizing sample treatment
- Rock function providing a gentle back and forth motion for delicate samples
The Plus model additionally includes a rocking platform measuring 4.5 x 3 inches and a 96 x 0.2ml tube/strip/plate holder specifically designed for mixing PCR vessels within the "Mix" (oscillating) mode.
Specifications:
| SKU |
Electrical Information |
Speed |
Temperature Range |
Warranty |
| H2020 |
115V, 50-60Hz, 0.5A |
24 RPM |
Ambient +5°C to 60°C |
2 Years |
| H2024 |
100V, 50-60Hz, 0.5A |
50 - 70 RPM |
Ambient +5°C to 60°C |
2 Years |
Dimensions:
| SKU |
Height |
Width |
Depth |
| H2020 |
9 in |
11.8 in |
8.5 in |
| H2024 |
9 in |
11.8 in |
8.5 in |
