Rugged Rotators

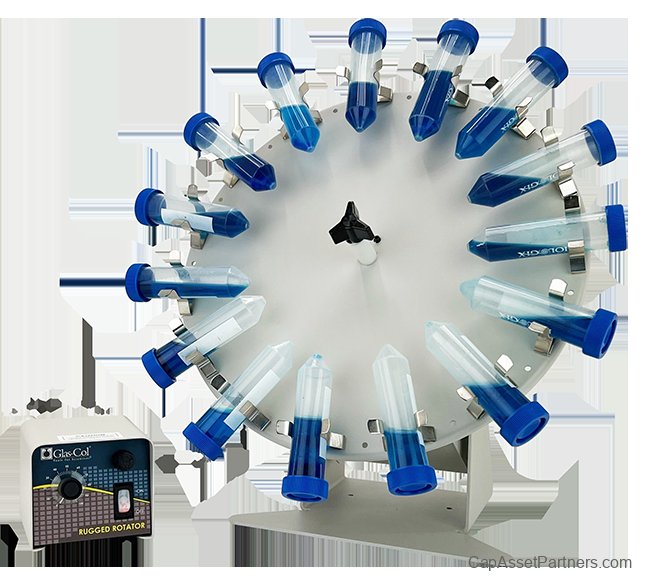

The Rugged Rotator is a versatile benchtop solution specially designed to accommodate various laboratory glassware. With its adjustable variable speed drive, you can easily set the rotation from 0 to 83 revolutions per minute (RPM). This feature allows for precise mixing actions ranging from a gentle slosh to vigorous agitation, making it suitable for diverse laboratory applications.

Key Features:

Variable speed motor for customized mixing action.

Continuous-duty motor designed for demanding schedules and extended operational use.

Unique clamping device enables motor positioning within a 110° arc, keeping containers visible during operation.

Sturdy, compact base with a load weight capacity of 5 lbs., providing well-balanced support for substantial loads.

Convenient cord-attached speed control module allows strategic positioning for safety during operation.

Standard package includes a test tube head with 31 spring clips for tubes ranging from 10mm to 18mm in diameter, and 16 spring clips for tubes from 20mm to 30mm.

Applications:

Embedding for electron microscopy.

Preparation of tissue-culture specimens.

Maintaining blood cell suspensions.

Washing of precipitates.

Disintegrating tablets.

Extracting and dissolving slow-reacting samples.

Homogenizing blood solids with plasma.

Rotating closed containers for dialysis bags.

Specifications:

SKU	Hertz	Max Capacity	Amperage
099A RD4524	50/60 Hz	5 lbs.	1.4A
099A RD4512	50/60 Hz	5 lbs.	1.4A
099A RD5524CE	50/60 Hz	5 lbs.	1.4A

Accessory Information:

SKU	Name	Description	Features
099A RD10	Twin-Disk Test Tube Head	Ideal for embedding tissue for electron microscopy; designed for easy insertion and removal of tubes without scratching glassware.	Accommodates 22 pieces of glassware up to 25mm in diameter or 44 pieces up to 16mm. Adjustable for gentle or active mixing.
099A RD20	Hexagonal Clamping Head	Perfect for securely holding an assortment of glassware up to 2-1/4" in diameter.	Attaches quickly and allows for both axial and end-over-end rotation of the container.
099A RD50	Test Tube Rack Head	Holds a full rack of stoppered test tubes; doubles as a holder for bottles and flasks.	Features polyfoam-lined retaining plate for gentle handling of glassware.
099A RD65	Friction-Drive Test Tube Head	Equipped for operations like blood agitation; allows easy tube access without stopping the motor.	Contains adjustable clips for a range of tube sizes, enhancing usability.
099A RD3018	Erlenmeyer Flask Head	Rotates multiple Erlenmeyer flasks simultaneously; ease of attachment to the Rugged Rotator base.	Long-lasting aluminum design with multiple size compatibility.
099A TC108	Tissue Culture Tube Head	Holds up to 108 mini tissue-culture tubes, maintaining compact dimensions for incubator placement.	Allows angle adjustment for optimal tube content positioning during rotation.
