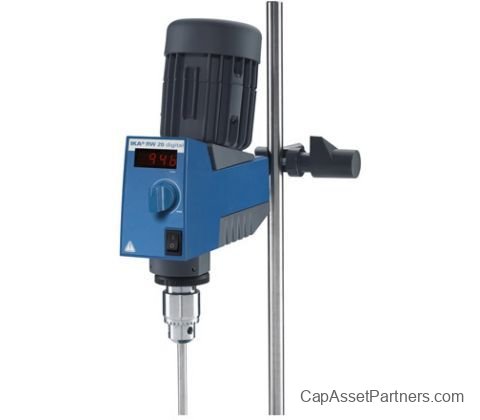

RW 20 Digital Overhead Stirrer

Do you have a RW 20 Digital Overhead Stirrer you want to sell?

We buy used equipment! Learn about selling

Manufactured by: IKA Works Inc.

Revolutionize Your Laboratory with Cutting-Edge Technology

Specifications	RW 20 Digital
Stirring Quantity Max (H2O)	20 l
Motor Rating Input	70 W
Motor Rating Output	35 W
Speed Display	LED
Speed Range	60 - 2000 rpm
Max Viscosity	10000 mPas
Output Max at Stirring Shaft	26 W
Permissible ON Time	100%
Max Torque at Stirring Shaft	150 Ncm
Max Torque at Stirring Shaft at 60 1/min (Overload)	300 Ncm
Max Torque at Stirring Shaft at 100 1/min	150 Ncm
Max Torque at Stirring Shaft at 1000 1/min	24 Ncm
Speed Range I (50 Hz)	60 - 500 rpm
Speed Range II (50 Hz)	240 - 2000 rpm
Speed Range I (60 Hz)	72 - 600 rpm
Speed Range II (60 Hz)	288 - 2400 rpm
Speed Control	stepless
Stirring Element Fastening	chuck
Chuck Range Min. Diameter	0.5 mm
Chuck Range Max. Diameter	10 mm
Hollow Shaft Inner Diameter	10.5 mm
Hollow Shaft (Push-Through When Stopped)	yes
Fastening on Stand	extension arm
Extension Arm Diameter	13 mm
Extension Arm Length	160 mm
Nominal Torque	1.5 Nm
Dimensions (W x H x D)	88 x 294 x 212 mm
Weight	3.1 kg
Permissible Ambient Temperature	5 - 40 °C
Permissible Relative Humidity	80%
Protection Class according to DIN EN 60529	IP 20
Voltage	220 - 240 / 100 - 115 V
Frequency	50/60 Hz
Power Input	72 W
