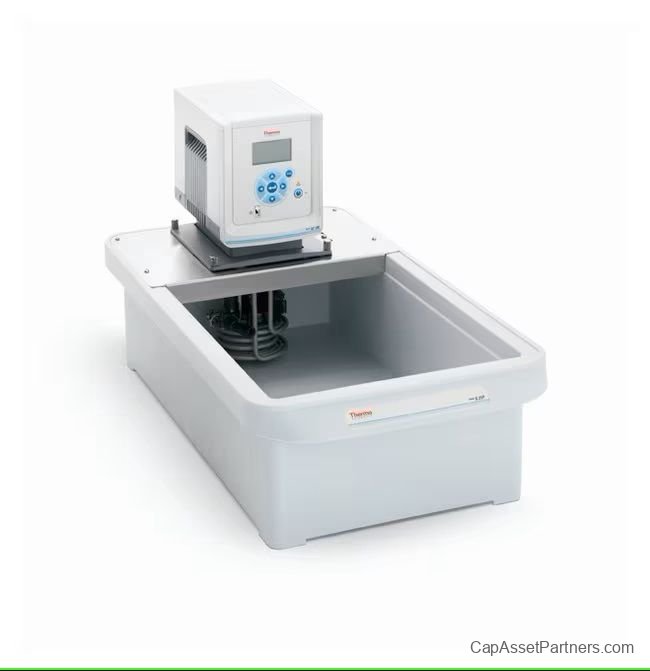

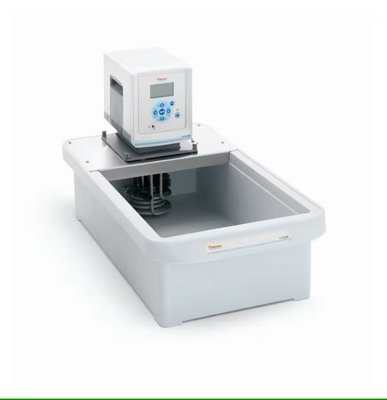

SAHARA PPO S21P Heated Bath Circulators
Enhance your laboratory operations with the SAHARA PPO S21P Heated Bath Circulator, meticulously designed to maintain consistent temperatures from ambient +13°C to 100°C. Boasting a generous maximum bath volume of 21 liters, it caters to diverse circulation needs, ensuring that your applications receive the optimal temperature control they require.
Key Features:
- Temperature Range: Maintains temperatures from ambient +13°C to 100°C
- Material Resilience: Constructed with modified polyphenylene oxide for thermal resistance up to 100°C, rugged and corrosion-resistant for high-temperature applications up to 200°C.
- Controllers: Choose from a selection of eight different controllers tailored to meet your operational requirements.
Environment-Friendly Design:
This system is engineered to save energy, allowing for a reduction of up to 80% in energy costs over its operational lifetime. It is RoHS-compliant (lead- and mercury-free) and uses recycled packaging materials.
Safety and Compliance:
All units are designed to meet UL/CSA compliance standards, ensuring safe operation even in fault conditions. Optional IQ/OQ compliance is available.
User-Friendly Interface:
The intuitive interface of each thermostat features a bright display, making it easy to monitor critical readings. Every system is accompanied by a quick-start guide for seamless setup and operation. Furthermore, the thermostat can be adjusted to be viewed from any side of the bath.
Superior Service Support:
Experience peace of mind with unrivaled service support, ensuring that you have the assistance needed to maximize your equipment's performance.
Specifications:
| Temperature Range |
Ambient +13 to 100°C |
| Max Bath Volume |
21L |
| Net Weight |
14.5 lb. (6.6 kg) |
| Dimensions (L x W x H) |
25.3 x 14.1 x 14.2 in. (64.2 x 35.8 x 36.1 cm) |
Controller Options:
SC 100 Controller:
- Multilingual support and acoustic/optical alarms.
- Five user-settable programs for flexible operation.
- Two adjustable pump speeds to optimize water flow.
SC 150 Controller:
- Includes a USB port and low-liquid level alarm.
- Automatic shut-down capability in case of excessive high temperature, low liquid level, or motor overload.
AC 150 Controller:
- Equipped with a powerful force suction pump for enhanced performance.
AC 200 Controller:
- Features ramp programming with 10 steps and real-time clock.
- USB port for easy data management.
Recommended Applications:
- Sample/Material Testing and Preparation
