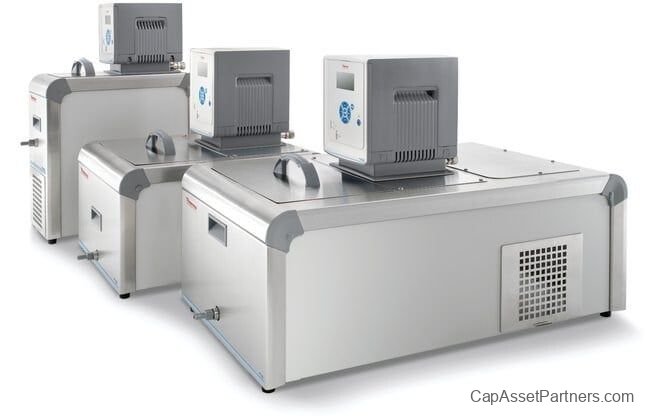

SAHARA S13 Stainless-Steel Heated Bath Circulators
Experience advanced heating efficiency with the SAHARA S13 Stainless-Steel Heated Bath Circulators, designed for both internal and external circulation applications. These circulators efficiently heat liquids from ambient temperatures up to a maximum of 300°C, accommodating a generous bath volume of 12 liters.
Key Features
- Temperature Range: Ambient 13°C to 300°C
- Robust construction with corrosion-resistant stainless steel
- Multiple controller options available for tailored operation
- Designed for high-temperature applications
Environmentally Friendly Design
- • Energy-efficient operation, saving up to 80% on energy costs and significantly reducing overall energy consumption.
- • Free from lead and mercury, ensuring a safer working environment.
- • RoHS-compliant, using recycled packaging materials for eco-friendly disposal.
Safe Operation Features
- • UL/CSA compliant units ensure safe operation even under fault conditions.
User-Friendly Interface
- • All models feature highly intuitive user interfaces with bright displays for monitoring critical parameters.
- • Controllers can rotate for easy viewing from any angle.
- • Each system comes equipped with a quick-start guide for straightforward setup and operation.
Specifications Overview
| Specification |
Value |
| Temperature Range |
Ambient +13 to 300°C |
| Maximum Bath Volume |
12L |
| Available Voltages |
115V, 100V, 230V |
| Certifications/Compliance |
CE/ROHS/WEEE |
| Power Requirements |
115V 60Hz / 100V 50/60Hz / 230V 50Hz |
| Net Weight |
27 lb. (12.3 kg) |
| Exterior Dimensions (L x W x H) |
16.7 x 12.6 x 18 in. (42.8 x 32.1 x 45.6 cm) |
| Recommended Applications |
Viscometers, Spectrophotometers, Refractometers, Metrology |
