Sarns 7000 Heart Lung Bypass

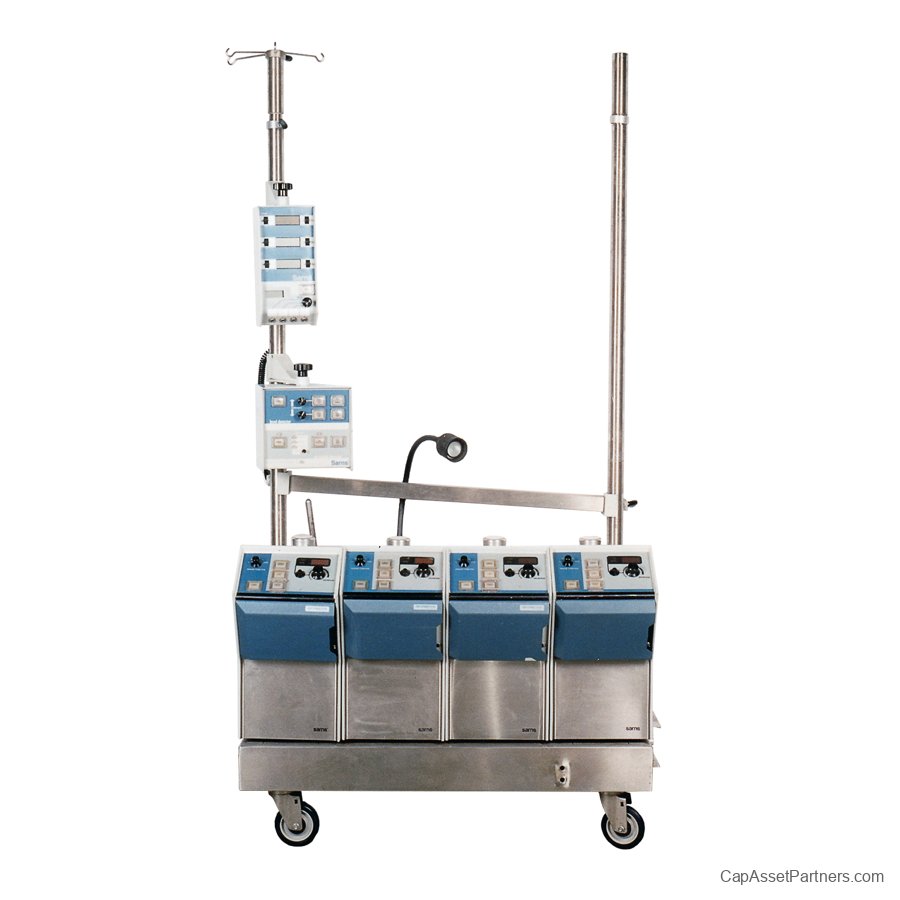

Sarns 7000 Heart Lung Bypass Machine
The Sarns 7000 Heart Lung Bypass Machine is an essential piece of medical equipment designed for use in cardiovascular surgeries. This high-performance system is specifically engineered to support patients by temporarily taking over the functions of the heart and lungs during critical procedures.
Key Features:

• Advanced Technology: The Sarns 7000 is equipped with sophisticated technology that ensures efficient blood circulation and oxygenation, vital for patients undergoing complex cardiac surgeries.

• User-Friendly Interface: Its intuitive controls allow for easy adjustments and monitoring, providing healthcare professionals the ability to focus on patient care without the distraction of complicated settings.

• Enhanced Safety Measures: Designed with numerous safety features, the Sarns 7000 helps to minimize risks and ensure patient safety during operative procedures.

• Versatile Application: Ideal for use in both pediatric and adult cases, this heart-lung machine adapts to a range of surgical environments, making it a reliable choice for medical facilities.

The Sarns 7000 Heart Lung Bypass Machine combines reliability, efficiency, and safety, making it an indispensable tool in modern cardiovascular surgery. Upgrade your facility's capabilities and ensure optimal patient outcomes with this advanced medical equipment.

Sarns 7000 Heart Lung Bypass Specifications

Dimensions (with stand)

• Height: 46.75 inches (118.7 cm) maximum, 34.75 inches (88.3 cm) minimum

• Width: 22.25 inches (56.5 cm)

• Length: 40.25 inches (102 cm)

Power Requirements

• AC: 110-120 VAC, 50/60/400 Hz, sine or square wave, 170/200 Watts and 225/270 Watts with batteries charging.

• DC: 12 VDC, 115 Watts

Internal Battery

• Type: Gel type, sealed and rechargeable

• Voltage: 12 VDC nominal

• Quantity: 2

• Charging Time: Two batteries take 20 minutes to recharge from fully discharged

• Life Expectancy: Minimum 200 full charge/discharge cycles

Chassis Leakage Current

• Current: 100 µA or less

Alarms

• High Temp: Actuates at displayed incubator temperature of 39° ± 0.5 °C

• Sensor: Actuates if high temp alarm sensor is electrically open or shorted

• Power Failure: Actuates if main AC power fails and no DC back-up power is present

• Heater Temp: Actuates if heater temperature exceeds 77°C nominal

• Low DC: Actuates if incubator DC voltage falls below 10.5 VDC nominal

Temperature

• Set Point Range: 21.5°C ± 1.0°C to 38°C

• Rise Time: 30 minutes

• Variability: 0.2°C

• Overshoot: 1.5°C maximum

• Uniformity: 1°C

• Correlation of Displayed Incubator to Actual Incubator Temperature at Temperature Equilibrium: 1°C

• Correlation of Displayed Incubator Temperature to Set Point at Temperature Equilibrium: ± 0.5°C

• Observation Light Output: 10-foot candles at mattress level

Note: The Sarns 7000 Heart Lung Bypass is available refurbished from Avante.
