Sarns 7400 Heart-Lung Bypass Machine

Do you have a Sarns 7400 Heart-Lung Bypass Machine you want to sell?

We buy used equipment! Learn about selling

Manufactured by: Drager

Category: Heart-Lung Bypass

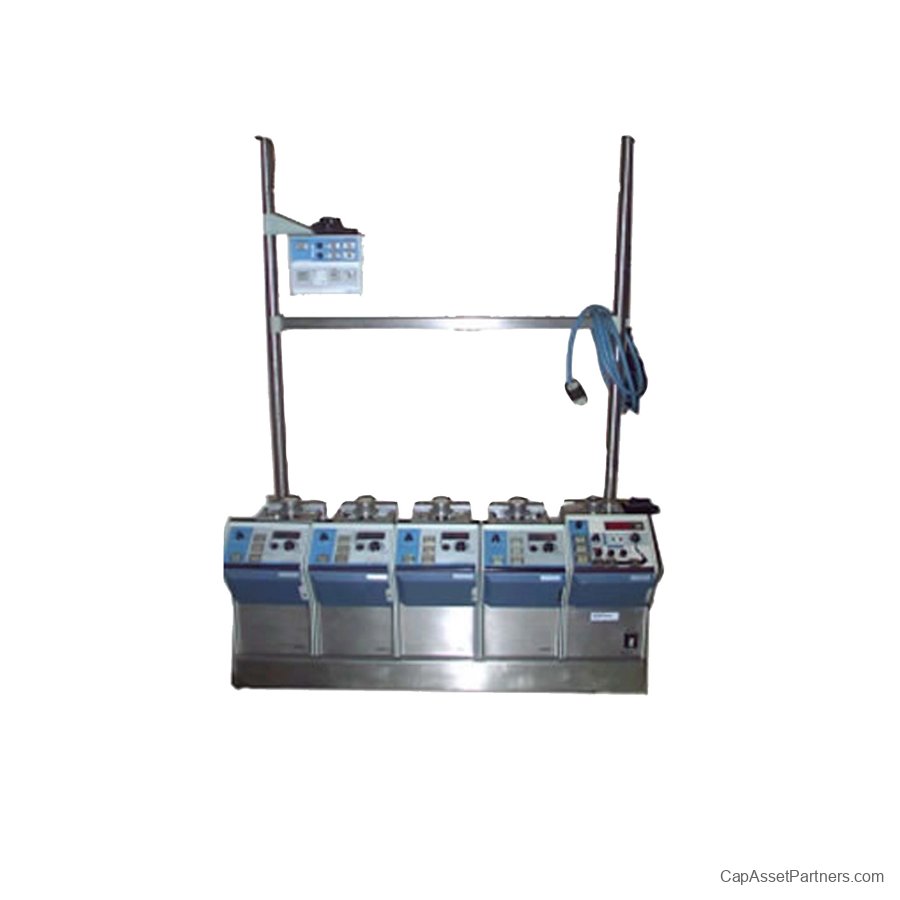

Drager Sarns 7400 Heart-Lung Bypass Machine
Product Description: Sarns 7400 Heart-Lung Bypass Machine
The Sarns 7400 Heart-Lung Bypass Machine is an essential device for cardiovascular surgeries, providing a complete open heart system with pulsatile capabilities. Engineered for precision and reliability, this machine is designed to support surgical teams in delivering optimal patient care during complex procedures.
Features:
  • Comprehensive Open Heart System: The Sarns 7400 comes equipped with a pulsatile pump system, ensuring effective circulation and oxygenation throughout the procedure.

  • DX Pump Head: Features a 6-inch (15.2 cm) diameter pump head that offers a single control occlusion setting for streamlined operation. Each pump has individual tube clamp mechanisms, allowing for customized patient management.

  • Flexible Pump Configuration: Available options include a 4 pump system or a 5 pump system, enabling flexible setups tailored to specific surgical needs.

  • Enhanced Mobility and Safety: Designed with conductive castors on a modular base, the system ensures adequate grounding for continued safety and performance on conductive flooring.

  • Operational Transparency: The numeric display provides real-time information on roller assembly speed (RPM) alongside computed flow rates in liters per minute. This allows healthcare professionals to monitor and adjust settings based on the size of tubing used, ensuring precise control over the perfusion parameters.

The Sarns 7400 Heart-Lung Bypass Machine stands as a trusted solution for cardiovascular procedures, helping to improve surgical outcomes and enhance patient safety in the operating room.
Sarns 7400 Heart-Lung Bypass Machine Specifications

Physical Characteristics:
  • Height from base: 17.5" (44.5 cm)
  • Height from floor when mounted on base: 26.5" (67.3 cm)
  • Width: 9" (22.9 cm)
  • Depth: 19.5" (49.5 cm)
  • Weight: 57 lbs (25.8 kg)

Tubing Specifications:
  • Material: Flexible polyvinyl chloride (PVC) only
  • Max Outside Diameter: ¾" (19 mm)
  • Max Inside Diameter for Low-Flow Use: ¼" (6.4 mm)
  • Wall Thickness Range: 1/16" to 3/32" (1.6 - 2.4 mm)
  • Recommended Durometer Range: 58-68

Electrical Specifications:
  • Part Number 13400: 115 Volts AC 60 Hz; 100 Microamps; 0.1 ohms
  • Part Number 13600: 220 Volts AC 50 Hz; 100 Microamps; 0.1 ohms
  • Part Number 14150: 100 Volts AC 50/60 Hz; 100 Microamps; 0.1 ohms
