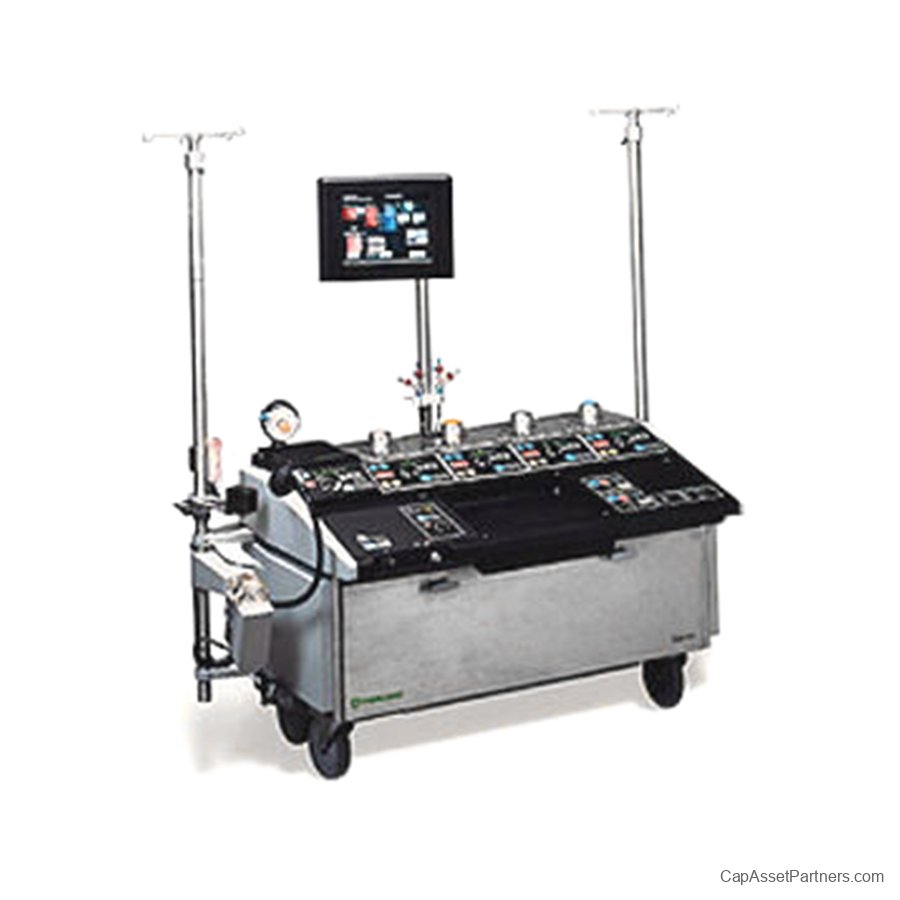

Sarns 9000 Heart-Lung Bypass

Sarns 9000 Heart-Lung Bypass

The Sarns 9000 Heart-Lung Bypass is a state-of-the-art complete 4 Pump Open Heart System designed to enhance patient management during critical cardiac procedures. This advanced equipment integrates seamlessly with a computer-aided monitoring system, providing healthcare professionals with the most reliable and efficient tools at their disposal.

Key Features:

• Comprehensive Open Heart System: Enjoy the full capabilities of a 4 pump system tailored for complex surgeries.

• User-Friendly Design: The intuitive layout and bright touch screen interface make crucial information easy to access, allowing for swift response times during procedures.

• Advanced Monitoring Capabilities: The system’s computer-aided monitoring ensures optimal patient management, enabling informed decisions based on real-time data.

• Integrated Safety Systems: The Sarns™ centrifugal system is designed to work in harmony with advanced safety features and a central display, ensuring the highest levels of patient safety.

• Robust and Reliable: Crafted to withstand the rigorous demands of surgery, the Sarns 9000 is built for durability, ensuring consistent performance when it matters most.

• Versatile Application: Indicated for extracorporeal circulation of blood during arterial perfusion, regional perfusion, and cardiopulmonary bypass procedures, this system is an essential tool in modern cardiac surgery.

Whether you need a reliable solution for complex heart surgeries or a comprehensive system that guarantees patient safety and ease of use, the Sarns 9000 Heart-Lung Bypass is the premier choice for healthcare professionals committed to providing the best care possible.

Sarns 9000 Heart-Lung Bypass Specifications

Electrical Power Supply

• Voltage: 90-100V~ (100 V nominal); 103.5-126.5 V ~ (220-240 V nominal)

• Frequency: 50/60 Hz

• Amperage: 16 A (100 or 115 V~); 8 A (220 or 240 V ~)

• Leakage Current: 100 µA maximum

• Ground Resistance: 0.1 ohm maximum

Transportation

• Incline Transport: Up to 15 degrees without tipping.

Tubing

• Flexible Tubing: Medical grade PVC.

• Pump Tubing Size: Maximum outer diameter: 3/4" (19 mm).

• Wall Thickness: 1/16" to 3/32" (1.6 to 2.4 mm).

• Recommended Durometer Range: 58-58.

• Air Sensor Tubing:

• 1/4" air sensor: Clear PVC tubing of 1/4" (6.4 mm) I.D. x 1/16" (1.6 mm) wall.

• 3/8" air sensor: Clear PVC tubing of 3/8" (9.5 mm) I.D. x 3/32" (2.4 mm) wall.

• Line Occluder Tubing:

• Minimum: 1/4" (6.4 mm) I.D. x 1/16" (1.6 mm) wall;

• Maximum: 1/2" (12.7 mm) I.D. x 3/32" (2.4 mm) wall.

• Gas Outlet Tubing: 1/4" (6.4 mm) I.D.

Gas Supply

• Gas Requirement: Use only medical-grade gases (e.g., compressed air, 95% oxygen + 5% CO2, 100% CO2, and 100% oxygen).

• Inlet Pressure: 50 psi ± 10 psi (345 kPa ± 69 kPa).

Probe

• Temperature Probes: YSI (Yellow Springs Instrument) 400 series or equivalent.

• Pressure Transducers: Sarn™ with a detection range of -50 to 999 mmHg. Must meet AAMI standards for physiologic pressure probes, may require adapter cable.

Physical Specifications

• Console:

• Height: 25.3" (64.3 cm)

• Width: 45.3" (115.1 cm)

• Depth: 24" (61 cm)

• Weight: Approximately 31 lbs (14.5 kg) per roller pump; total system weight: 470 lbs (213 kg)

• Pump:

• Height: 8" (20.3 cm)

• Width: 8-3/4" (22.2 cm)

• Depth: 14" (35.6 cm)

• Central Display:

• Height: 10.5" (26.7 cm)

• Width: 14.1" (35.8 cm)

• Depth: 3.2" (8.1 cm)
