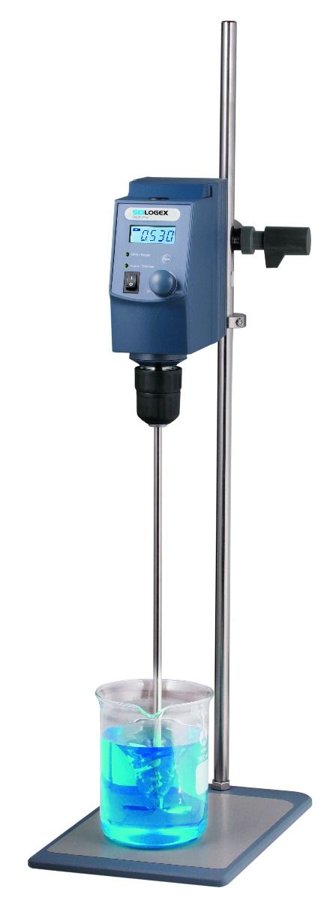

SCI20-Pro LCD Digital Overhead Stirrer, 20L
The SCI20-Pro LCD Digital Overhead Stirrer is engineered for precision and reliability in demanding laboratory environments. With a stirring capacity of up to 20 liters, this advanced model combines technology and user-friendly features to deliver high performance in chemical synthesis, physical and chemical analysis, and pharmaceutical research.
Key Features
- Accurate Microprocessor Control: Enjoy accurate stirring speed control with microprocessor precision for optimal results.
- Anti-Spill Design: The anti-spill microprocessor control ensures a slow start-up, minimizing accidental spillage and splashing.
- Remote Functionality: Utilize PC control and data transmission capabilities for streamlined operation.
- Auto-Restart Function: Designed for overnight operations, the stirrer automatically restarts in case of power loss.
- Easy Adjustment: A through-shaft design allows convenient adjustment of the impeller position to suit various needs.
- Universal Chuck Compatibility: The large chuck diameter accommodates a wide range of shaft types for versatile use.
- Brushless DC Motor: Experience long-life and maintenance-free operation with an efficient brushless motor.
- Consistent Speed: Provides constant stirring speeds even with changes in sample viscosity, ensuring reliable outcomes.

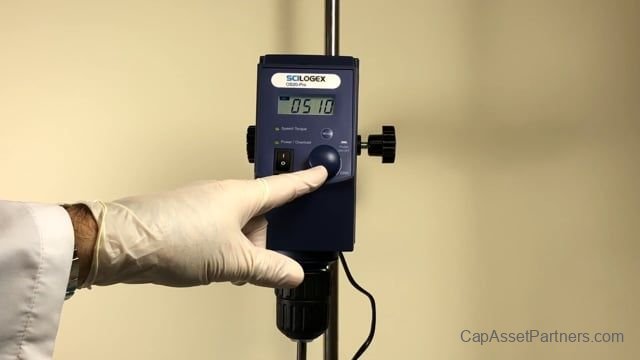

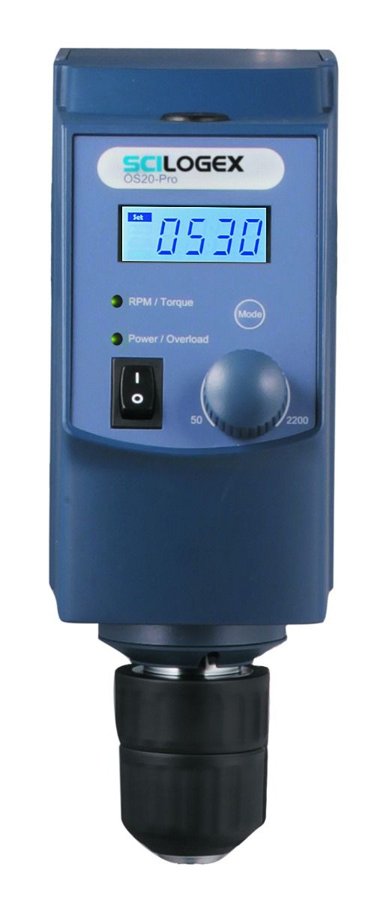

- LCD Display: Monitor both set and actual speeds on a clear LCD screen, featuring a speed range from 50 to 2200 RPM and a control accuracy of ±3 RPM.
- Over Torque Protection: Automatically halts motor operation to prevent damage during overload conditions.
- Real-Time Viscosity Monitoring: The torque trend display offers immediate insights into viscosity changes, enhancing operational awareness.
- Comprehensive Safety Circuits: Enhanced safety features include a safe stop function in anti-stall or overload scenarios.
- Keyless Chuck: For quick and straightforward attachment and detachment of stirring rods.
- PC Software Control: Manage and document all measured values conveniently via RS232 interface connectivity.
- Certifications: cTUVus approved for UL and CSA standards, ensuring compliance with industry safety regulations.
Specifications
| SKU |
Accuracy |
Hertz |
Motor Rating Input (W) |
Motor Rating Output (W) |
Motor Type |
Speed (RPM) |
Stirring Capacity |
Torque |
Maximum Viscosity |
Voltage |
| 840103019999 |
± 3 RPM |
50/60 Hz |
60 W |
50 W |
Brushless DC Motor |
50 - 2200 RPM |
20 Liters |
40 Ncm |
10000 mPas |
100 - 220 V |
Additional Information
| SKU |
Connector Type |
Diameter |
Height |
Protection Class |
Width |
| 840103019999 |
RS232 |
7.3 in |
8.7 in |
IP21 |
3.3 in |
