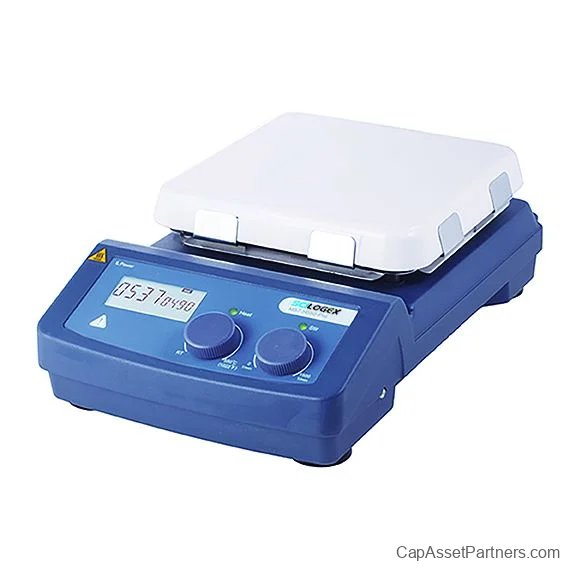

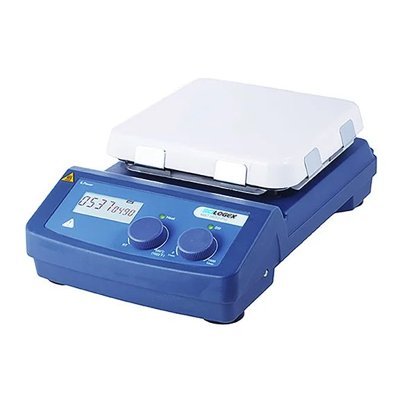

SCI550-Pro LCD Digital Hotplate Stirrers
The SCI550-Pro stands out as one of the most sophisticated Hotplate-Stirrers available today, designed for a broad spectrum of applications including chemical synthesis, physical and chemical analysis, and the bio-pharmaceutical industry. This advanced equipment features independent back-lit LCD displays that provide clear information for both heating and stirring functions, enhanced by cutting-edge PID technology. A Brushless DC Motor ensures reliable performance and an extended lifespan, making it an invaluable asset for any laboratory environment.
Key Features:
- PID Temperature Control: The built-in PID controller offers precise temperature regulation with overheating protection for safe operation.
- Digital Speed Control: Easily adjust the stirring speed using the digital speed controller for optimal mixing.
- Robust Motor: The brushless DC motor guarantees longevity and exceptional performance.
- Versatile Operation: Choose from various functions: heat only, stir only, or simultaneous heating and stirring.
- Glass Ceramic Work Plate: This material delivers excellent resistance to chemicals and optimal heat transfer efficiency.
- RS232 Connectivity: The data connector allows for remote control, PC operation, and data transmission for enhanced functionality.
- High Temperature Capability: Achieve a maximum temperature of 500°C with precise 1°C increments.
- Temperature Stability: Maintains a low temperature stability within ±1°C for consistent results.

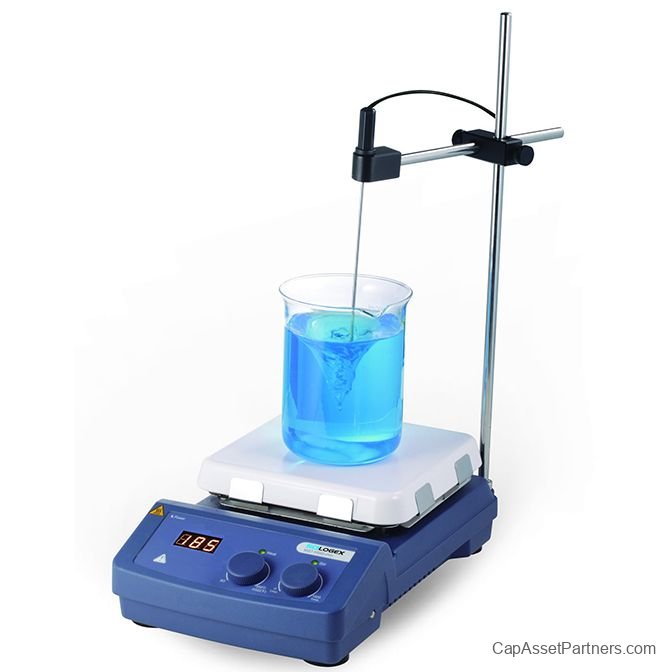

- External Temperature Control: Compatible with temperature sensors (PT1000) for external monitoring.
- User-Friendly Interface: Two rotating knobs facilitate straightforward adjustments for speed and temperature.
- High Magnetic Adhesion: Enables effective stirring of various sample sizes, accommodating magnetic bars up to 80 mm in length.
- Safety Features: The "HOT" warning indicator flashes when the work plate temperature exceeds 50°C, ensuring user safety.
- Environment Specifications: Operates effectively in ambient temperatures ranging from 4°C to 40°C with a maximum humidity of 80% RH.
Certifications:
- cTUVus approved for UL and CSA compliance.
- IP21 Protection Class for enhanced durability and protection.
Specifications:
| SKU |
Max Temperature |
Stirring Capacity |
Accuracy |
Warranty |
| 813223009999 |
550°C |
20L |
±1°C |
2 Year |
| 813223009999-B |
550°C |
20L |
±1°C |
2 Year |
Electrical Information:
| SKU |
Electrical Information |
| 813223009999 |
110V, 60Hz |
| 813223009999-B |
110V, 60Hz |
Note: The bundle includes PT1000 Sensor (18900016) and Sensor Stand (18900017).
