SCSpro 15 Scroll Vacuum Pumps

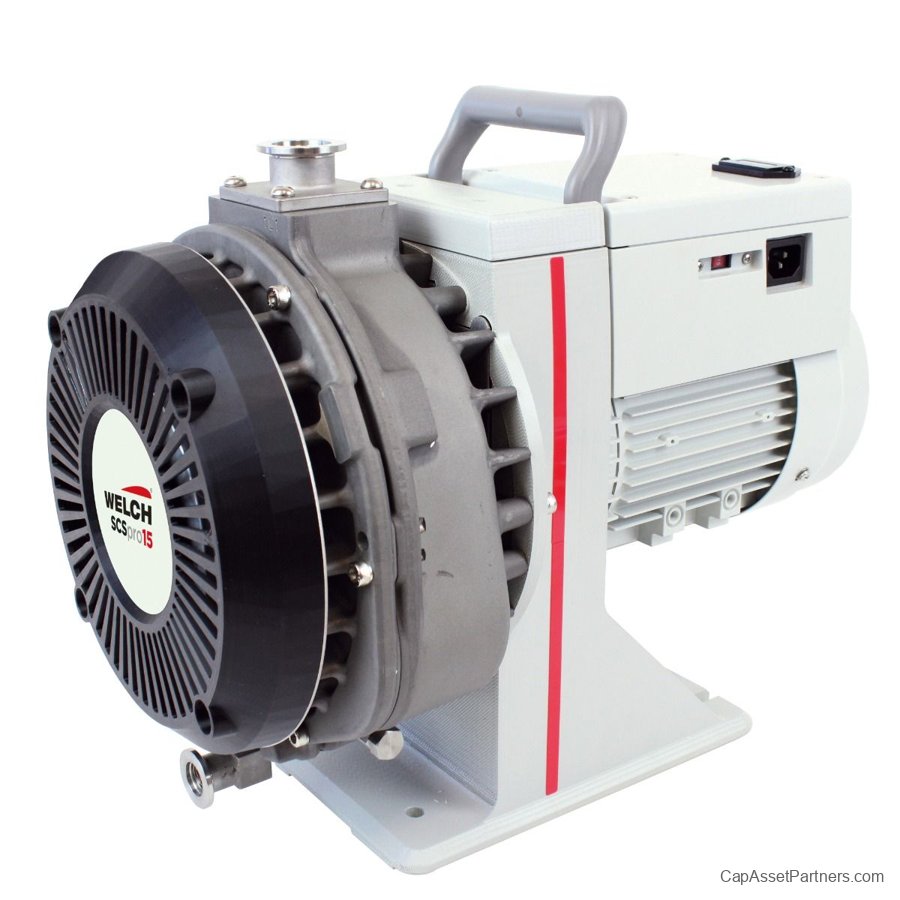

Introducing the SCSpro 15 Scroll Vacuum Pump
Launching in March 2024. Contact us for more details.

The SCSpro 15 Scroll Vacuum Pump is a cutting-edge oil-free solution designed for efficient vacuum generation. Its unique built-in self-cleaning air flush feature effectively removes liquefied vapors trapped within the pump, ensuring optimal performance without compromising vacuum efficacy.

Utilizing a sophisticated two-sided spiral mechanism, this scroll pump offers a reliable alternative to traditional oil-sealed rotary vane pumps, continuously moving captured gas from the inlet to the exhaust port.

Key Features:

• Oil-free deep vacuum operation
• Self-cleaning air flush for hassle-free maintenance
• Continuous operation capabilities, bridging ultimate vacuum pressure and atmospheric conditions
• Durable dual voltage/frequency motor for diverse applications
• Integrated hour meter for precise service tracking
• Built-in handle facilitating easy transport and mobility
• Modular design enabling fast and straightforward servicing
• NW16 exhaust connection for enhanced versatility
• Vertical pump inlet orientation for space-efficient installation
• cUL/CE certified, ensuring high safety standards

Materials:

• Scroll and body constructed from anodized aluminum for durability
• Tip seal utilizes a PTFE composite for effective sealing
• Exhaust valve made from high-performance FKM
• Inlet and exhaust ports crafted from cast stainless steel for longevity

Applications:

• Freeze dryers equipped with ultra-low temperature condensers
• Glove boxes for controlled environments
• Cold trapped vacuum ovens for sensitive applications
• Degassing chambers for material processing
• Turbo backing for enhanced vacuum systems
• Evacuation of cryogenic lines for laboratory and industrial uses

Specifications:

Additional Information:
