SDC Digital Benchtop Temperature Controllers

SDC Digital Benchtop Temperature Controllers

Introducing the SDC Digital Benchtop Temperature Controllers, an essential tool for precise temperature management in a variety of heating applications. These controllers are suitable for a broad range of heaters and surface heating requirements, ensuring optimal performance in general-purpose indoor environments. With their user-friendly interface and robust features, they are perfect for tasks that necessitate automatic temperature control.

Key Features:

• Intuitive 3-key push button interface for easy navigation

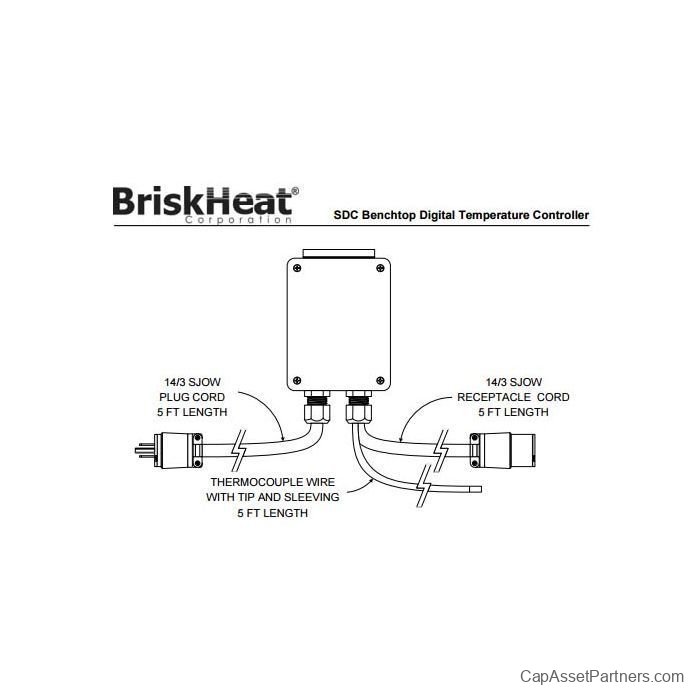

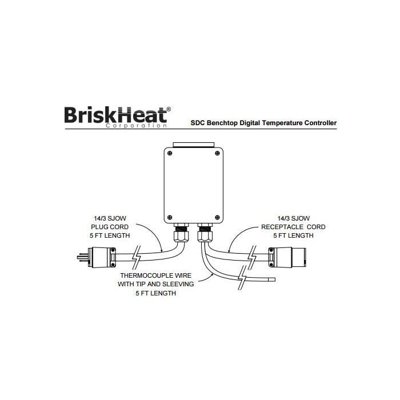

• Comes complete with thermocouple and power output cords for immediate use
• Compact benchtop design ensures flexibility in space-constrained areas
• Choice of configuration supporting both J-Type and K-Type Thermocouples
• Available voltage options: 120 or 240 VAC
• Handles a maximum amp load of 10 amps
• Temperature display units can be set to °F or °C based on the model
• Equipped with a 5 ft (1.5 m) Type-J or Type-K Thermocouple, factory installed
• Accuracy maintained at ±1% full span
• Adjustable hysteresis settings ranging from 1° to 99° (°F or °C) for tailored performance
• Features audible alarms, programmable for high or low range alerts
• Enhanced security with password protection for all parameters except set-point and a sensor break operation option

Environmental Exposures:

• Operating temperature range: 32°F to 158°F (0°C to 70°C)
• Storage temperature range: -4°F to 176°F (-20°C to 80°C)
• Relative humidity: < 80% non-condensing
• Compact enclosure dimensions: 5.5 in W x 1.75 in H x 4.25 in D (140 mm W x 45 mm H x 108 mm D)

*Note: Maximum temperature is determined by the thermocouple, not the temperature controller range.
