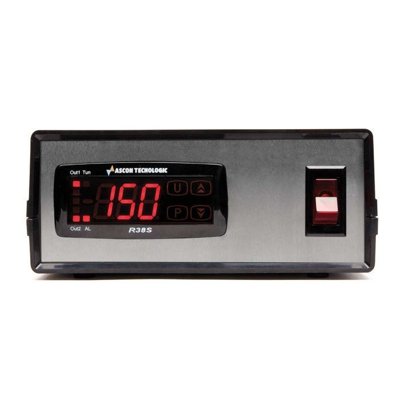

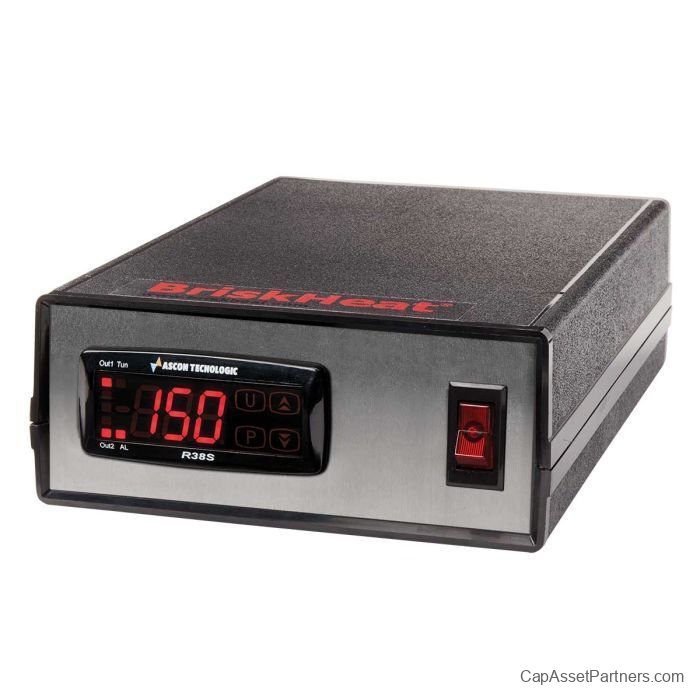

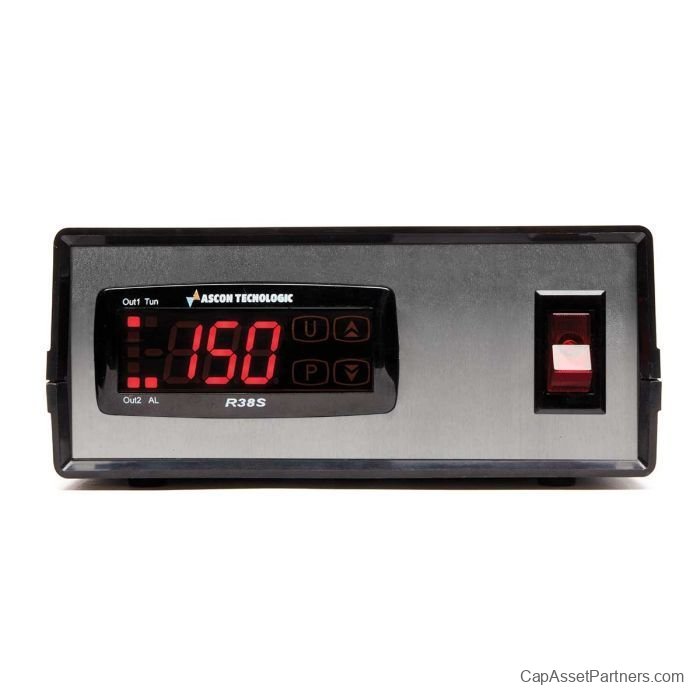

SDX Digital PID Temperature Controllers

Introducing the SDX Digital PID Temperature Controller, a premier solution in temperature regulation for laboratory settings. This compact and efficient controller stands out with its versatile features, making it an essential tool for your precision needs. The universal voltage range of 100 - 240 VAC, combined with a robust 15 amp relay, enhances its adaptability across various applications.

Key Features:

• Voltage Compatibility: 100 - 240 VAC
• Amperage: 15 amps for North America; 10 amps for Europe
• Temperature Control Range: 0°F to 999°F (0°C to 999°C)
• Display Units: Capable of showing both °F and °C
• Sensor Input Options: Compatible with Type-J or Type-K Thermocouple, or PT100-RTD
• Measurement Accuracy: ±0.5% span ±1 digit at 77°F (25°C)
• Alarm System: Programmable audible alarms for high/low absolute or deviation
• Power Connections: 6.5 ft (2 m) input power cord with appropriate plug based on model

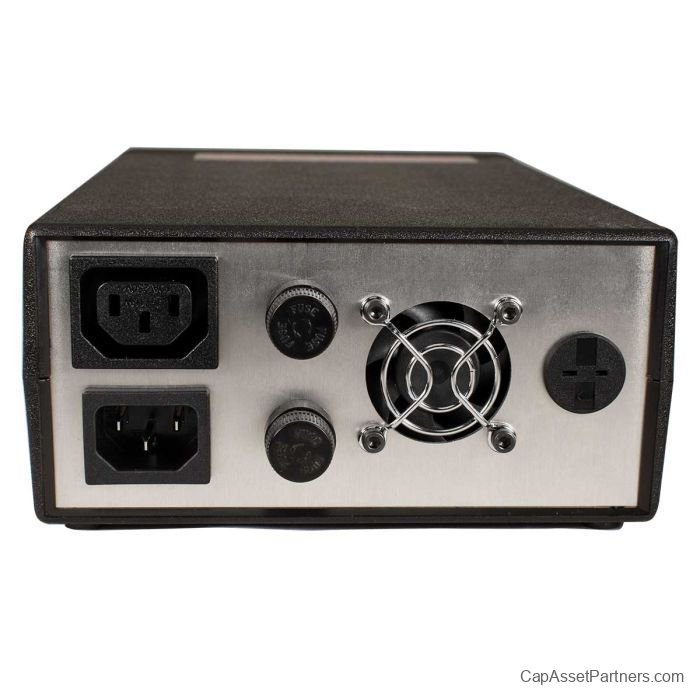

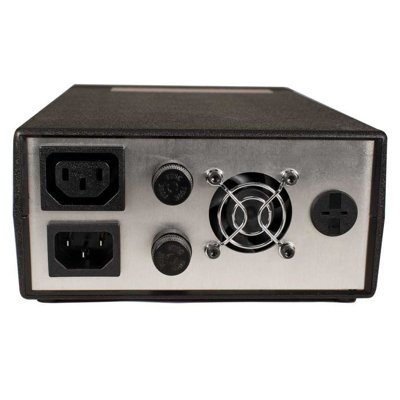

• Output Connection: C13 receptacle with a mating C14 plug
• Advanced Features: Digital PID control with Autotuning capability

Environmental Specifications:

• Operating Temperature Range: 32°F to 111°F (0°C to 44°C)
• Storage Temperature Range: -4°F to 158°F (-20°C to 70°C)
• Humidity Tolerance: Relative humidity of less than 95% non-condensing
• Enclosure Dimensions: 6.4 in W x 2.6 in H x 9.5 in L (162 mm D x 66 mm H x 241 mm L)
