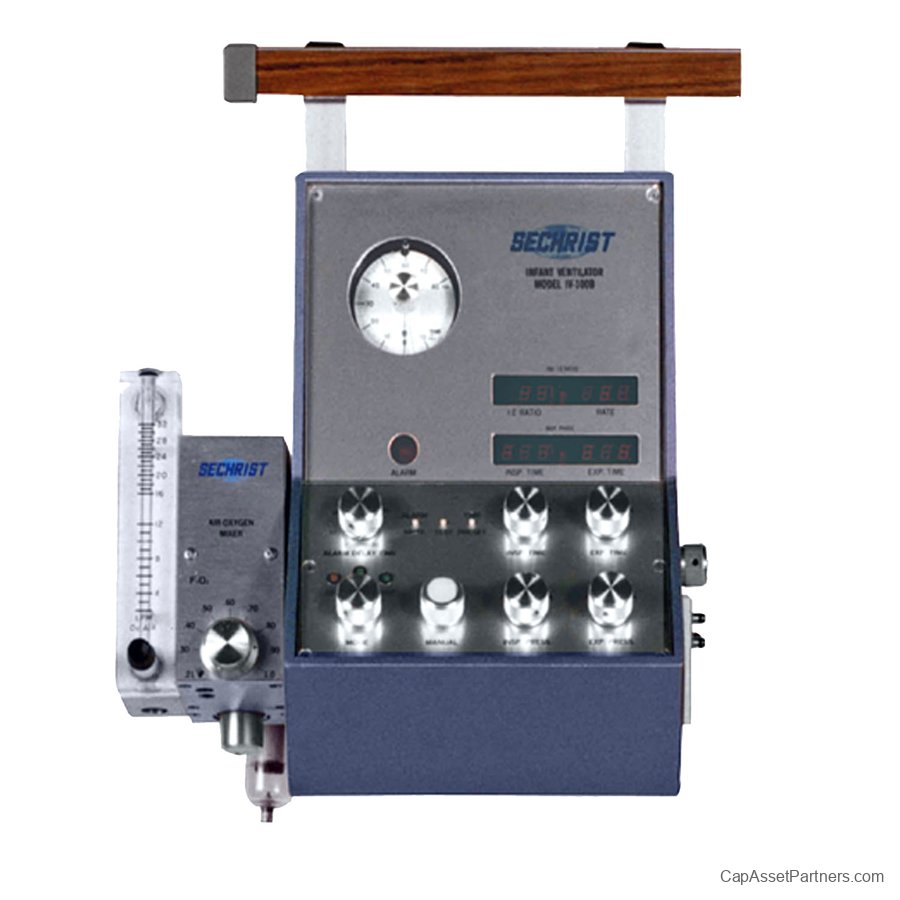

Sechrist IV-100B Critical Care Ventilator

Introducing the Sechrist IV-100B Critical Care Ventilator – a state-of-the-art solution designed to support patients in critical care environments. This advanced medical device features a microprocessor-controlled system that ensures precise ventilation, catering to the unique needs of infants, pediatrics, and anesthesia patients with its interchangeable exhalation blocks.
Equipped with a comprehensive alarm system, the IV-100B offers both audible and visual alerts, ensuring that healthcare professionals are immediately aware of any changes in patient status. The digital display provides clear, real-time data, allowing for quick assessments and responsive care.
Enhance the versatility of the Sechrist IV-100B with an array of compatible accessories, including a humidifier, air and oxygen source, and a mobile stand, making it an ideal choice for hospitals and clinics focused on delivering exceptional patient care. Experience reliability and precision with the Sechrist IV-100B Critical Care Ventilator, a trusted partner in critical medical settings.

Sechrist IV-100B Critical Care Ventilator Specifications

• Ventilator Type: Critical Care Ventilator

• Modes of Ventilation:

• Assist-Control (AC)

• Synchronized Intermittent Mandatory Ventilation (SIMV)

• Continuous Positive Airway Pressure (CPAP)

• Tidal Volume Range:

• 50 - 2000 mL (2 - 67 fl oz)

• Respiratory Rate Range:

• 2 - 60 breaths per minute

• Inspiratory Pressure Range:

• 5 - 60 cm H2O (2 - 47 mmHg)

• PEEP Range:

• 0 - 20 cm H2O (0 - 15 mmHg)

• FiO2 (Fraction of Inspired Oxygen):

• 21% - 100%

• Flow Rates:

• 10 - 120 L/min (0.35 - 4.2 CFM)

• Power Supply:

• AC mains: 100 - 240 V, 50/60 Hz

• Battery backup: Duration based on operational conditions

• Dimensions:

• Height: 30 in (76 cm)

• Width: 22 in (56 cm)

• Depth: 10 in (25 cm)

• Weight:

• Approximately 55 lbs (25 kg)

• Operating Environment:

• Temperature: 10°C to 40°C (50°F to 104°F)

• Humidity: 20% to 95% non-condensing

• Display:

• Graphic LCD with real-time monitoring

• Alarms:

• Visual and audible alarms for high/low pressure, high/low tidal volume, disconnection, and power failure

• Data Storage:

• Internal memory for storing patient data and settings

• Compliance and Standards:

• Complies with relevant medical device regulations and standards (specific certifications may vary)

Ensure to consult the user manual or relevant documentation for detailed operational guidelines and safety considerations.
