Manufactured by: Welch Ilmvac

Category: Vacuum Pumps for Rotary Evaporators

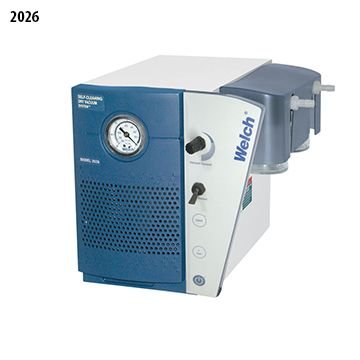

Welch Ilmvac Self-Cleaning Vacuum Systems

Welch Ilmvac None - Vacuum Pumps for Rotary Evaporators

Self-Cleaning Vacuum Systems

The Self-Cleaning Vacuum Systems offer an advanced, oil-free solution for rotary evaporators and concentrators. Engineered with corrosion-resistant PTFE diaphragm vacuum pumps, these systems ensure optimal control and enhanced efficiency during evaporation processes.

Key Features:

Controlled Solvent Stripping: Designed for flasks up to 5L in size, allowing for precise solvent management.

High-Speed DMF Stripping: Achieve efficient results with a DMF stripping rate of 4mL/min.

Incremental Ballast Switch: Quickly responds to bumping and foaming, enhancing operational consistency.

Auto Self-Cleaning: This feature ensures minimal downtime and maintenance, maximizing productivity.

PID Control Temperature System: Delivers accurate temperature regulation for improved evaporation performance.

Inlet and Exhaust Separators: Protect both the vacuum pump and laboratory atmosphere, ensuring a safer work environment.

Model 202801 Features:

Fully Programmable: Tailor your operations with the ability to store up to 5 methods for 2 different solvent evaporations.

Walk-Away Operation: Experience hands-free solvent stripping for increased efficiency.

Keypad Controller Interface: User-friendly interface with an LED readout for easy monitoring and adjustments.

Specifications:

SKU	For Use With	H.P.	Max Vacuum	Air Displacement	Motor Power	Ambient Temperature Range
202501	Solvents with Atmospheric B.P. < 120°C	0.2 HP	29.6 in Hg	1.2 cfm (34 L/min) @50Hz	0.7 kW @ 50 Hz, 0.85 kW @ 60Hz	10°C - 40°C
202601	Solvents with Atmospheric B.P. < 160°C	0.2 HP	29.85 in Hg	1.1 cfm (32 L/min) @50Hz	0.7 kW @ 50 Hz, 0.85 kW @ 60Hz	10°C - 40°C
202701	Solvents with Atmospheric B.P. < 160°C	0.2 HP	29.85 in Hg	1.1 cfm (32 L/min) @50Hz	0.7 kW @ 50 Hz, 0.85 kW @ 60Hz	10°C - 40°C
202801	Solvents with Atmospheric B.P. < 160°C	0.2 HP	29.85 in Hg	1.2 cfm (35 L/min) @50Hz	0.7 kW @ 50 Hz, 0.85 kW @ 60Hz	10°C - 40°C
202901	Solvents with Atmospheric B.P. < 160°C	0.2 HP	29.1 in Hg	2.5 cfm (70 L/min) @50Hz	0.7 kW @ 50 Hz, 0.85 kW @ 60Hz	10°C - 40°C

Additional Information:

SKU	Material	Dimensions	Certification	Power Requirement	Plug Type	Tubing Needed	Intake Thread NPT
202501	PTFE	13.6 in x 12.0 in x 11.3 in	cUL, CE	115V, 60Hz, 1 Phase	NEMA 5-15	1/4 in (7 mm)	3/8 NPT
202601	PTFE	13.6 in x 12.0 in x 11.3 in	cUL, CE	115V, 60Hz, 1 Phase	NEMA 5-15	1/4 in (7 mm)	3/8 NPT
202701	PTFE	13.6 in x 12.0 in x 11.3 in	cUL, CE	115V, 60Hz, 1 Phase	NEMA 5-15	1/4 in (7 mm)	3/8 NPT
202801	PTFE	13.6 in x 12.0 in x 11.3 in	cUL, CE	115V, 60Hz, 1 Phase	NEMA 5-15	1/4 in (7 mm)	3/8 NPT
202901	PTFE	13.6 in x 12.0 in x 11.3 in	cUL, CE	115V, 60Hz, 1 Phase	NEMA 5-15	1/4 in (7 mm)	3/8 NPT
