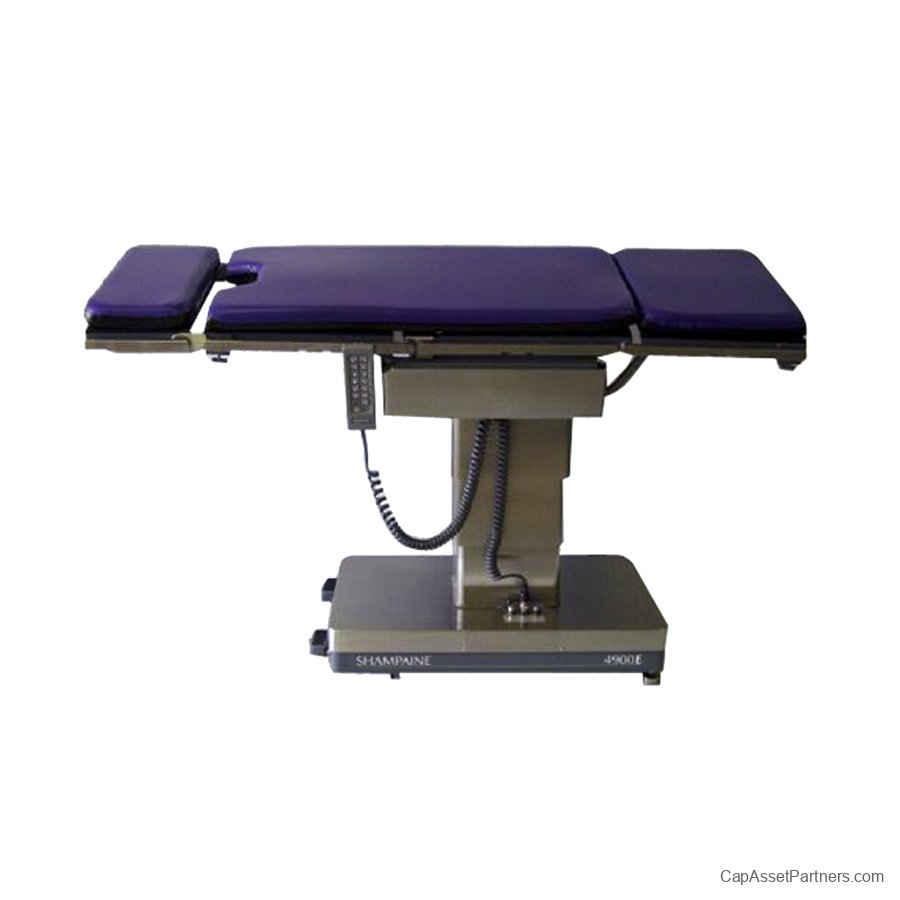

Shampaine 4900 Surgical Table

Shampaine 4900 Surgical Table

Experience unparalleled versatility and precision with the Shampaine 4900 Surgical Table, expertly designed to meet the diverse needs of modern surgical environments. This state-of-the-art table offers remote control functionality for seamless operation, allowing surgical teams to position patients effortlessly and confidently.
Key Features:

• Remote Control Operation: Effortlessly adjust the surgical table’s positioning with a user-friendly remote control, enhancing efficiency in the operating room.

• Full C-Arm Access: Designed with full C-arm access in mind, the Shampaine 4900 accommodates a wide range of positioning requirements, ensuring optimal imaging and accessibility.

• Electric Hydraulic Floor Locks: Features advanced electric hydraulic floor locks paired with a self-compensating tripod design, providing superior stability and safety during procedures.

• Comprehensive Positioning Functions: The table enables multiple positioning options, including Trendelenburg, lateral tilting, back, leg, kidney, and flex adjustments to cater to the specific needs of various surgical procedures.

The Shampaine 4900 Surgical Table is the ideal choice for healthcare facilities seeking a high-quality, reliable solution that enhances surgical efficiency and patient care. Optimize your surgical environment today with this exceptional medical equipment.

Shampaine 4900 Surgical Table Specifications

Hydraulic System

• Powered by a 2-volt DC electric motor.

• Solenoid valves direct to steel hydraulic cylinders.

• Safety relief valve included.

Operating Controls

• On Base:

• Connection to foot controls for head orientation.

• Foot-actuated floor locks.

• DC circuit break switch.

• Line cord receptacle.

• Battery charge status display.

• Secondary hand control/drawer.

• Emergency foot pump.

• Primary Hand Controls:

• Power bar and articulation switches.

Physical Characteristics

• Length: 72½" (1842 mm) / 88 3/8" (2245 mm) with removable leg extension

• Width: 19¾" (502 mm) / 21¾" (552 mm) with side rails

• Height: 28" to 43" (711 mm to 1092 mm)

• Trendelenburg: Up to 25°

• Reverse Trendelenburg: Up to 18°

• Lateral Tilt: Up to 18°

• Back Section: Adjustable from 30° below horizontal to 90° above horizontal

• Kidney Elevator: Extendable up to 2½" (64 mm)

• Leg Section: Adjustable from 90° below horizontal to 45° above in 15° increments

• Electrical Power Requirements:

• 115 VAC, 50/60 Hz, 4A, single-phase

• or 230 VAC, 50/60 Hz, 2A, single-phase

• Maximum Patient Weight: 500 lbs (227 kg)
