Manufactured by: Across International

Category: Glassware & Container Heating

Across International Short Path Digital Heating Mantles

Across International None - Glassware & Container Heating

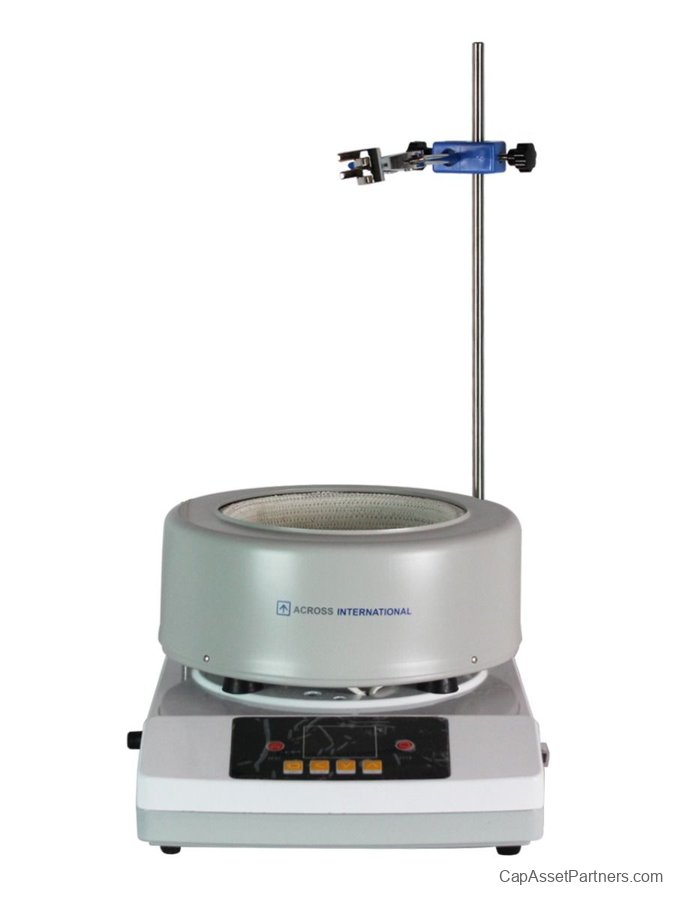

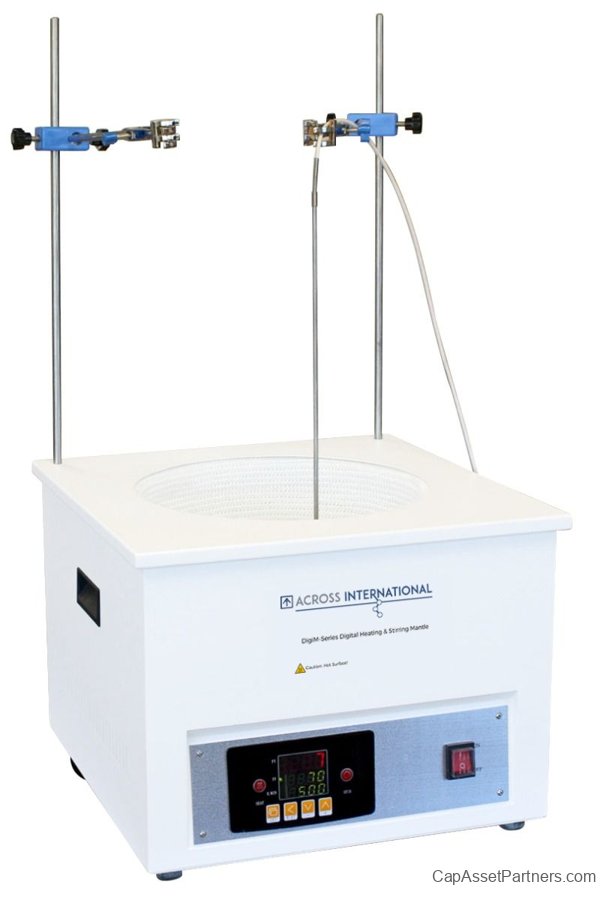

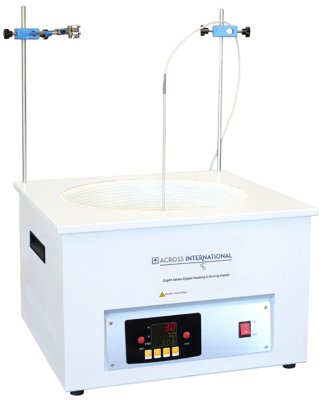

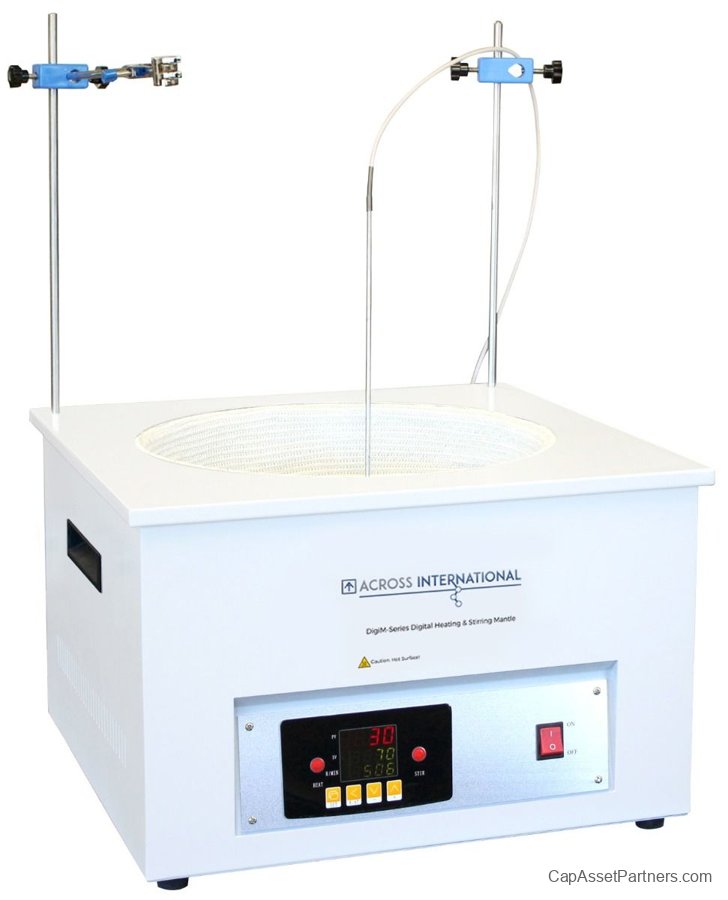

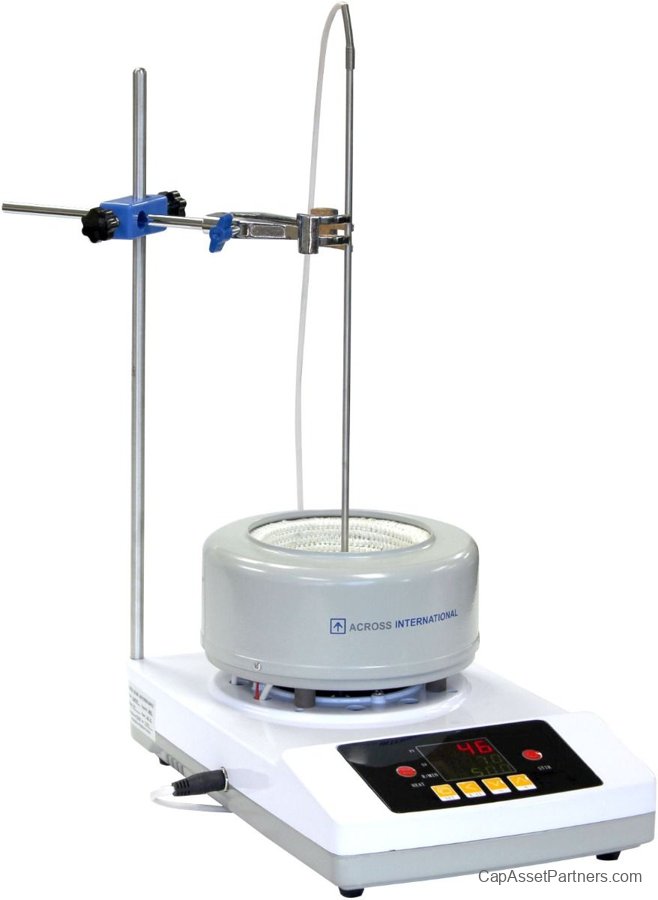

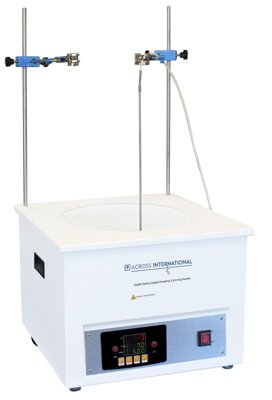

Short Path Digital Heating Mantles

Experience unparalleled precision and control in your laboratory with our cutting-edge Short Path Digital Heating Mantles. Designed for a range of applications, these heating mantles boast a user-friendly digital display, allowing for swift adjustments to both temperature and rotation speeds, ensuring optimal performance in all situations.

Key Features

PID Control: Incorporates advanced PID technology for accurate temperature regulation.

Digital Display: Large, easy-to-read screen for quick setting modifications.

Dual Thermocouples: Equipped with two sets of thermocouples for precise temperature and speed monitoring.

External Thermocouple: Features a PT100 external thermocouple for enhanced accuracy.

Safety Certifications: CE certified for safety and reliability in laboratory settings.

Specifications

SKU	Electrical Information	Flask Holder	Temperature Range	Stirring
DigiM10.220	220V, 50/60Hz, 1-Phase, 12A, 2050W	10 L	Ambient to 300°C	Min. speed: 110 rpm, max. speed: 2000 rpm
DigiM5.110	110V, 60Hz, 1-Phase, 12A, 1100W	5 L	Ambient to 300°C	Min. speed: 110 rpm, max. speed: 2000 rpm
DigiM2.110	110V, 60Hz, 1-Phase, 8A, 700W	2 L	Ambient to 300°C	Min. speed: 110 rpm, max. speed: 1500 rpm
DigiM2.220	220V, 50/60Hz, 1-Phase, 4A, 700W	2 L	Ambient to 300°C	Min. speed: 110 rpm, max. speed: 1500 rpm
DigiM10.110	110V, 60Hz, 1-Phase, 24A, 2050W	10 L	Ambient to 300°C	Min. speed: 110 rpm, max. speed: 2000 rpm

Accessory Specifications

SKU	Inner Fabric	Outer Fabric	Insulation	For Use With	Material	Max Temperature
DomeShield-2L	Rated for 1000°C constant temperature (beige color)	Rated for 280°C (light grey)	Fiber glass insulation rated for 800°C	1, 2 or 3-neck 2L flasks	-	-
DomeShield-5L	Rated for 1000°C constant temperature (beige color)	Rated for 280°C (light grey)	Fiber glass insulation rated for 800°C	1, 2 or 3-neck 5L flasks	-	-
DomeShield-10L	Rated for 1000°C constant temperature (beige color)	Rated for 280°C (light grey)	Fiber glass insulation rated for 800°C	1, 2 or 3-neck 10L flasks	-	-
DomeShield-20L	Rated for 1000°C constant temperature (beige color)	Rated for 280°C (light grey)	Fiber glass insulation rated for 800°C	1, 2 or 3-neck 20L flasks	-	-
DrainShield-5L	-	Rated for 280°C (light grey)	Fiber glass insulation rated for 800°C	Ai 5L Head drain	-	-
HeadShield-5L	-	Rated for 280°C (light grey)	Fiber glass insulation rated for 800°C	Ai 5L Head (window for viewing)	-	-
SP-FR10	-	-	-	Solvents, acids, bleach	Fiberglass	1000°F or 537°C
SP-FR20	-	-	-	Solvents, acids, bleach	Fiberglass	1000°F or 537°C
SP-FR30	-	-	-	Solvents, acids, bleach	Fiberglass	1000°F or 537°C
