Short Path Distillation Kit

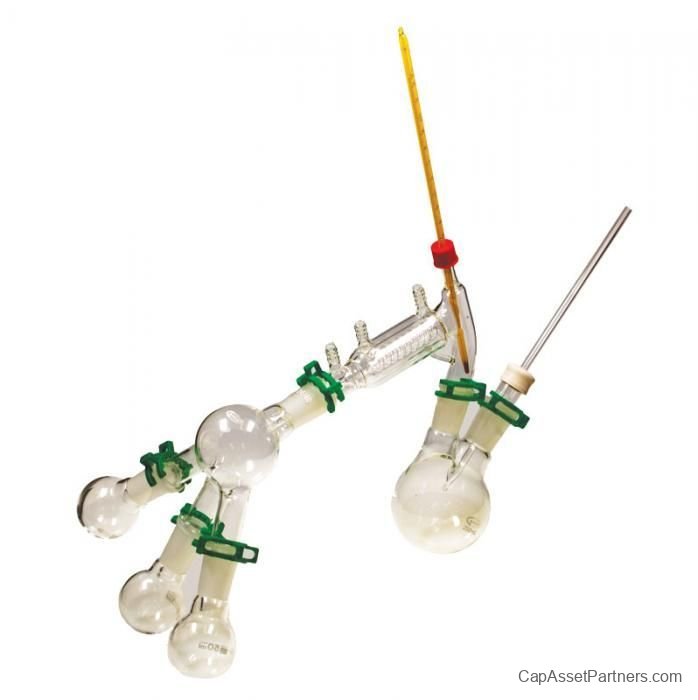

Short Path Distillation Kit (SPDK01)

The Short Path Distillation Kit (SPDK01) is meticulously designed for chemists and laboratory professionals seeking precision and efficiency in their distillation processes. Each component of this kit is crafted from premium 3.3 borosilicate glass, ensuring durability and high thermal resistance.

Key Features:

• Comprehensive kit includes essential components required for effective short path distillation.
• The Short Path Distillation Head features 24/40 flask joints and a 10/30 thermometer port, equipped with a condenser coil and three ¼” hose nozzles for efficient flow management.
• The cow-type Distillation Receiver is designed with one 24/40 outer joint and three 24/40 inner joints, allowing for the connection of up to three 50ml Single Neck round bottom flasks.
• Includes a 250ml round bottom 2-Neck flask with 24/40 outer joints for seamless attachment to the Distillation Head and Rubber Inlet Adapter, providing stability during operation.
• Thermometer with a range of -10° to 50° C filled with a petroleum-based solution ensures accurate temperature readings via the 10/30 port connection.
• Includes Penny Head Glass Stoppers to securely cap 50ml Single Neck round bottom flasks after the distillate is collected.

Included Components:

• (1) Short Path Distillation Head, Vacuum Jacketed, 24/40
• (1) Flask, Round Bottom, 2-Neck 250ml
• (1) Distillation Receiver, Cow-Type, 1-to-3, 24/40
• (1) Glass Inlet Tube, with Tapered End, 11”
• (6) Clamp for Jointed Glassware, Plastic, size 24
• (1) Thermometer, Red Spirit, -10° to 50° C, 12”
• (3) Flask, Round Bottom, Single Neck, 50ml, 24/40
• (1) Inlet Adapter, Rubber, with Glass Connector, 24/40
• (3) Stopper, Glass, Penny Head, 24/40

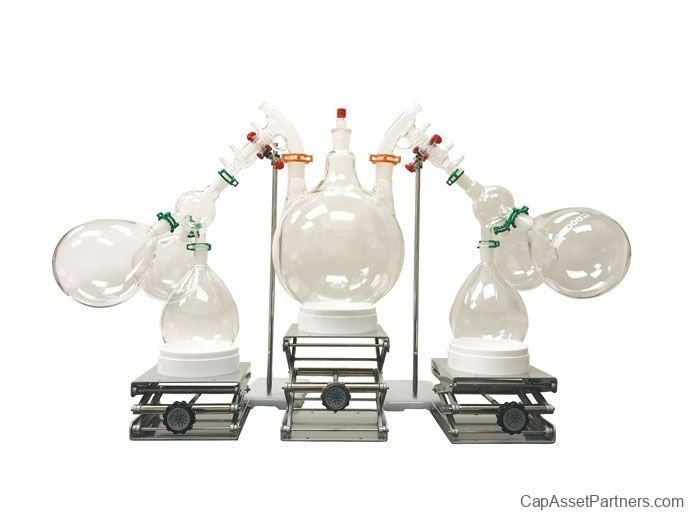

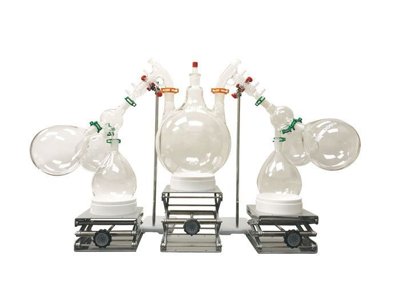

Short Path Distillation Kit, 10L (SPD102)

This advanced Short Path Distillation Kit (SPD102) includes superior components ideal for large-scale distillation applications. Crafted from high-quality 3.3 borosilicate glass, this kit guarantees optimal performance and reliability.

Key Features:

• Essential components specifically configured for short-path distillation ensure streamlined operations.
• Two Short Path Distillation Heads equipped with 24/40 flask joints, feature condenser coils and three ¼” hose nozzles for both condensing and vacuum applications.
• Two cow-type Distillation Receivers each designed with one 24/40 outer joint and three 24/40 inner joints, enabling the connection of up to three 2000ml Single Neck round bottom evaporating flasks.
• The 10000ml round bottom 3-Neck flask facilitates easy attachment for both Distillation Heads and holds the Thermometer Inlet Adapter through a center 24/40 joint.
• Four Penny Head Glass Stoppers are included for secure capping of 2000ml Single Neck round bottom flasks after collection.

Included Components:

• (2) Short Path Distillation Head, Vacuum Jacketed, 24/40, 34/45
• (1) Flask, Round Bottom, 3-Neck 10000ml 24/40, 34/45
• (2) Distillation Receiver, Cow-Type, 250ml, 1-to-3, 24/40
• (8) Clamp for Jointed Glassware, Plastic, size 24
• (2) Clamp for Jointed Glassware, Plastic, size 34
• (1) Adapter Inlet, Thermometer, 24/40
• (6) Flask, Evaporating, Single Neck, 2000ml, 24/40
• (4) Stopper, Glass, Penny Head, 24/40 (not shown in photo)

Specifications:

Note: Lab Jacks, Support Stands, Flask Stands, and Extension Clamps with Bosshead are not included in this kit.
