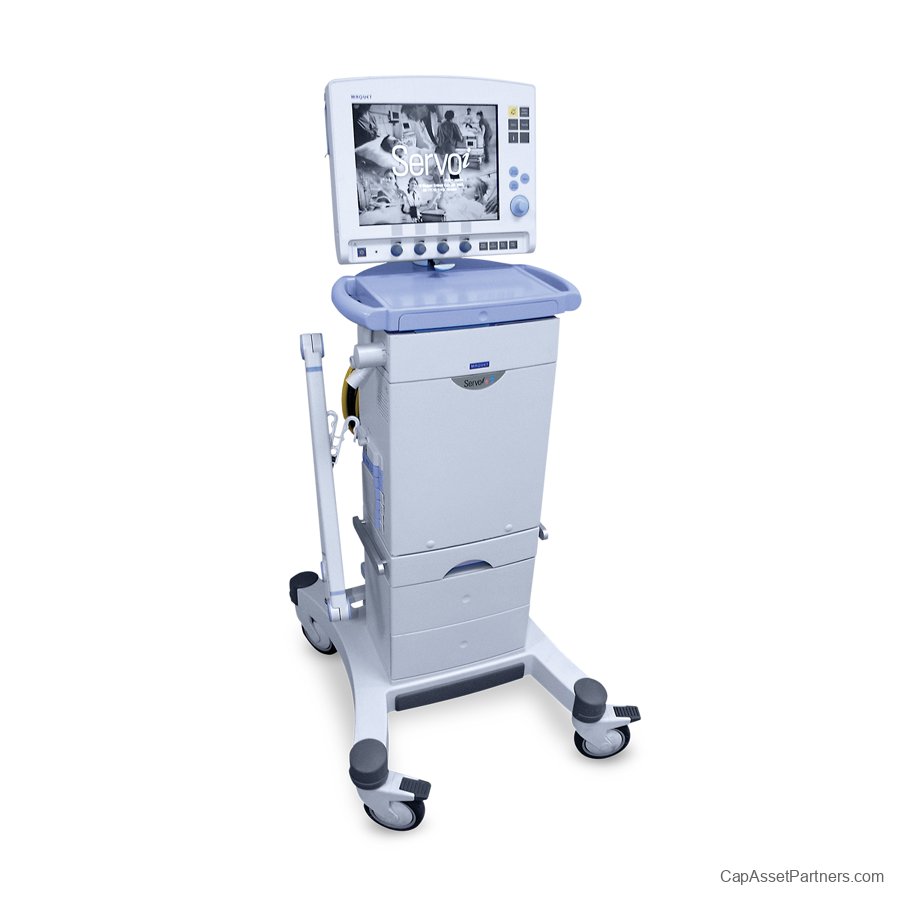

Siemens Maquet Servo-i Ventilator: Evolution in Respiratory Care
The Siemens Maquet Servo-i Ventilator is a groundbreaking respiratory system designed to adapt to the evolving needs of medical professionals. Since its introduction, it has set a standard in critical care environments by offering a platform that remains relevant and robust through continuous development and innovation. Since 2001, MAQUET has introduced annual updates, ensuring that the Servo-i remains at the forefront of ventilator technology while maintaining 100% backward compatibility for seamless upgrades.
This versatile ventilator is tailored for use in diverse clinical scenarios, accommodating the unique requirements of neonatal, pediatric, and adult patients. With four configurable options—SERVO-i Infant, SERVO-i Adult, and two versions of SERVO-i Universal—medical teams can easily modify the system to support various patient categories. The SERVO-i Infant and Adult models can seamlessly upgrade to the SERVO-i Universal edition, expanding the ventilator’s capabilities without the need for additional equipment.
Designed to excel in both invasive and non-invasive ventilation, the Servo-i stands out as a high-performance, mobile solution that is cost-effective for healthcare facilities. Its user-friendly interface simplifies training, operation, and maintenance, while its modular design reduces overall life cycle costs. By streamlining your respiratory care solutions, the Siemens Maquet Servo-i Ventilator minimizes the necessity for multiple machines, providing significant financial and operational advantages.
Optimize your respiratory care with the advanced technology and flexibility of the Siemens Maquet Servo-i Ventilator, engineered to meet the demands of today's dynamic clinical environments.

Siemens Maquet Servo-i Ventilator Specifications

• Type: Critical Care Ventilator

• Modes of Ventilation:

• Volume Control (VC)

• Pressure Control (PC)

• Assist/Control (A/C)

• Synchronized Intermittent Mandatory Ventilation (SIMV)

• Continuous Positive Airway Pressure (CPAP)

• Pressure Support Ventilation (PSV)

• Tidal Volume Range:

• 20 to 2,500 mL (0.68 to 84.5 oz)

• Respiratory Rate:

• 1 to 150 breaths/min

• Minute Ventilation:

• 0 to 99 L/min (0 to 34.98 gal/min)

• PEEP (Positive End-Expiratory Pressure):

• 0 to 20 cmH2O (0 to 15 mmHg)

• Pressure Support Level:

• 0 to 60 cmH2O (0 to 45 mmHg)

• Oxygen Concentration (FiO2):

• 21% to 100%

• Flow Trigger Sensitivity:

• 0.1 to 15 L/min (0.026 to 3.96 gal/min)

• Display:

• 15-inch color touchscreen

• Weight:

• 32 kg (70.5 lbs)

• Power Supply:

• 100-240 V AC, 50/60 Hz

• Battery Backup:

• Yes, up to 2 hours

• Dimensions:

• 420 x 610 x 850 mm (16.5 x 24 x 33.5 in)

• Alarms:

• Adjustable and customizable alarms for patient safety

• Communication Ports:

• Ethernet, USB, RS232

• Software Updates:

• Via USB or network connections

Additional Features:

• Integrated step-by-step tutorials for settings adjustments and troubleshooting.

• Easy to transport with built-in wheels and lightweight design.

• High-performance graphics for real-time data visualization.

• Compatible with various invasive and non-invasive patient interfaces.

Note: Specifications may vary slightly depending on updates or configurations. Always refer to the manufacturer's manual for the most accurate details.
