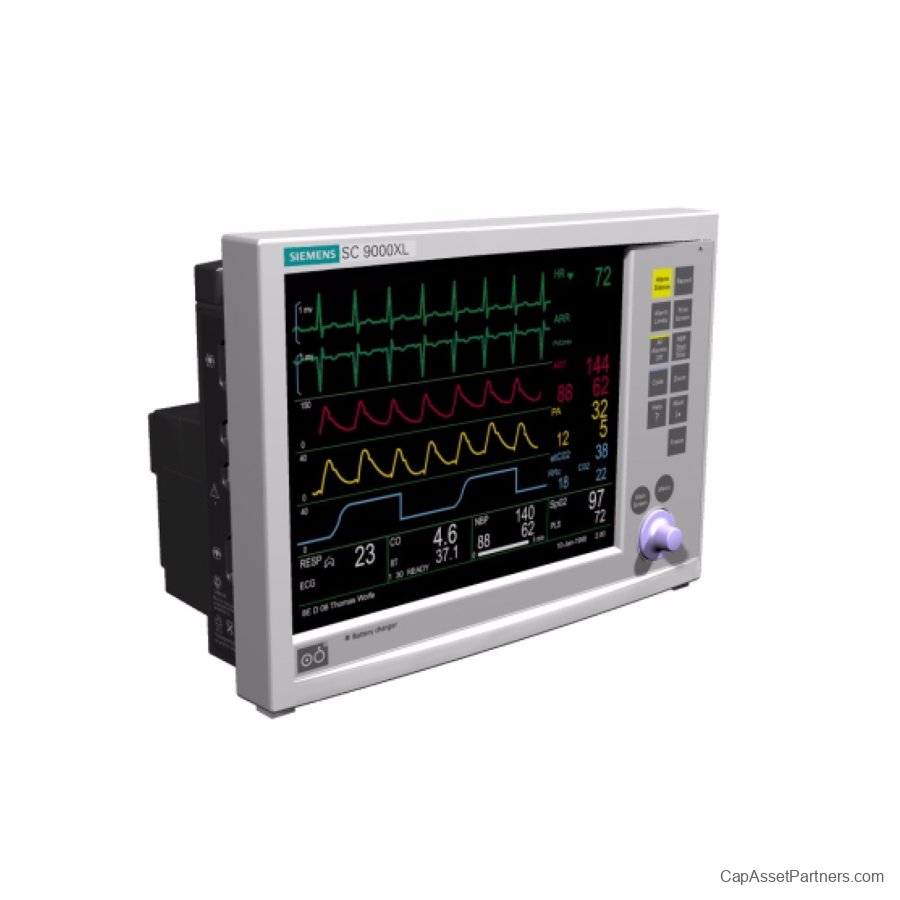

Siemens SC 9000XL Monitor

Introducing the Siemens SC 9000XL Monitor, a cutting-edge solution for healthcare professionals seeking reliable patient monitoring. This advanced device features a vibrant color display that enhances visibility and ease of use, allowing for optimal patient care in any clinical environment.
Key parameters monitored by the SC 9000XL include ECG, respiratory rate, SpO2, non-invasive blood pressure (NIBP), and temperature. These critical measurements empower medical personnel to assess patient conditions swiftly and accurately.
Whether for routine check-ups or more intensive monitoring, the Siemens SC 9000XL Monitor is designed to meet the diverse needs of healthcare settings, ensuring a comprehensive approach to patient health. Embrace the future of medical monitoring with the Siemens SC 9000XL, where precision meets innovation.

Siemens SC 9000XL Monitor Specifications

Physical Weight & Dimensions

• Height: 10 inches (254 mm)

• Width: 14 inches (355.6 mm)

• Depth: 4.5 inches (114.4 mm)

• Weight: 18.2 lbs (8.2 kg)

ECG

• Display: Up to 12 leads

• Measuring Range: 15 - 300 beats/min (1/min)

• Accuracy: ±2 beats/min or ±1% (whichever is greater)

Respiration

• Sensing Leads: I or II (user-selectable)

• Measuring Method: Impedance pneumography

• Measuring Range: 0-155 breaths/min

• Measuring Accuracy: ±1 breaths/min or 2% of rate (whichever is greater)

SpO2

• Parameter Display: Saturation (%SpO2), pulse rate

• Measuring Method: Absorption - spectrophotometry

• Measuring Range: SpO2: 1-100%

• Pulse Rate Range: 15-300 beats/min (1/min)

• Accuracy:

• SpO2: 70-100%: ±2%, 0-69%: not specified

• Pulse Rate: ±5 beats/min or ±5% (whichever is greater)

NIBP

• Parameter Display: Systolic, diastolic, mean

• Measuring Method: Oscillometric technique

• Modes of Operation:

• Manual (single measurement)

• Continuous (5 minutes)

• Interval

• Heart Rate Measuring Range: 40-240 beats/min (1/min)

Temperature

• Parameter Display: Absolute temperature, delta temperature

• Measuring Range:

• Absolute: -5°C to 50°C (23°F to 104°F)

• Delta: 0°C to 55°C (32°F to 131°F)

• Resolution: 0.1°C

• Accuracy:

• Absolute: ±0.1°C

• Delta: ±0.2°C
