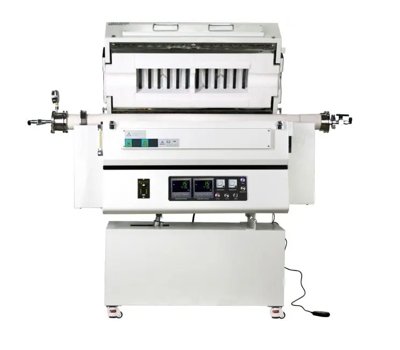

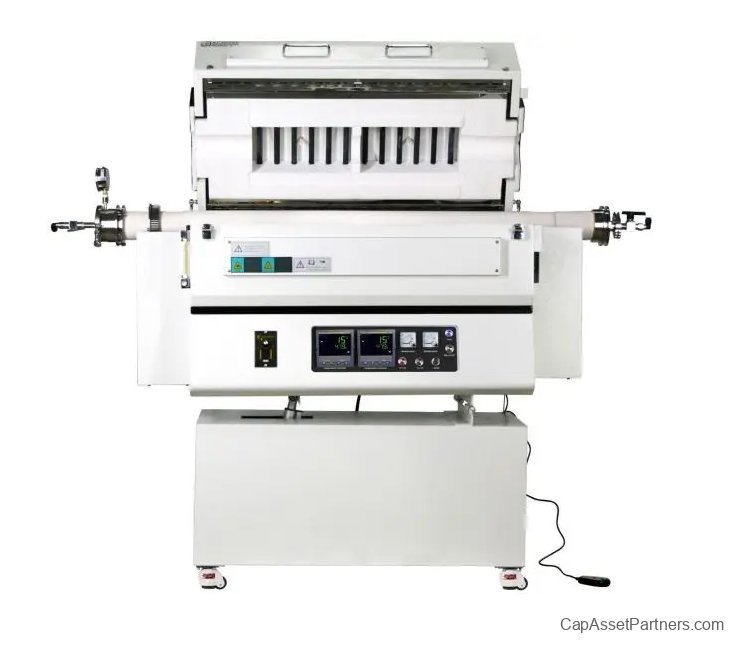

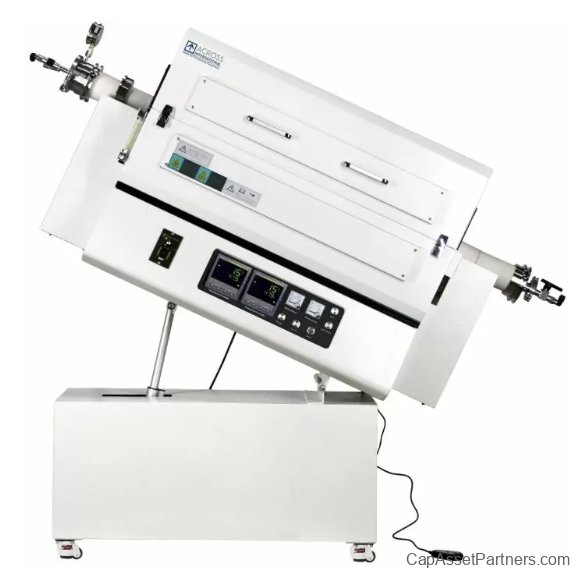

Single Zone 1500°C Rotary & Tilting Top-Open Tube Furnaces

The RTF1500 series rotary and tilting top-open tube furnaces are engineered for precision and efficiency, featuring a chamber built with high-quality Mitsubishi alumina fiber insulation paired with SiC heating elements. Designed with a dual-wall steel internal housing, these furnaces effectively minimize heat loss to the exterior, enhancing performance and energy efficiency.

The operation of the furnace is governed by a Eurotherm multi-segment digital controller, which includes an integrated RS485 digital communications port and a USB adaptor. This allows for seamless connectivity to a PC, providing remote control and monitoring capabilities, and enabling users to save or export test results effortlessly.

Key Features:

• Top-open furnace chamber facilitates swift and convenient access to tubes.
• Microprocessor-based self-tuning PID control ensures optimal thermal processes with minimal overshoot.
• Supports multiple atmosphere processes within a single cycle for versatile applications.
• Built-in ammeter and dual voltmeters simplify monitoring and troubleshooting.
• Integrated computer interface for enhanced functionality and user experience.
• Long life type S thermocouple for precise temperature measurement.

Safety Features:

• Overheat protection automatically cuts power when the temperature exceeds the desired range.
• Thermocouple protection interrupts power if the thermocouple experiences failure or malfunction.
• Power failure protection allows the furnace to resume operation seamlessly once power is restored.
• Limit switch prevents operation when the top lid is open to ensure user safety.
• Note: It is prohibited to fill the furnace with explosive gases, including Hydrogen, Carbon Monoxide, and Methane.

Included Components:

Specifications:

Additional Information:
