SmartGlow™ DNA Stains
Optimize your nucleic acid analysis with SmartGlow™ DNA Stains, the innovative alternative to traditional Ethidium Bromide (EtBr) dyes. Designed for excitation using either UV light or visible blue light transilluminators, SmartGlow™ enhances safety and usability in the lab. This stain is non-mutagenic and environmentally safe, eliminating the need for special disposal methods associated with hazardous EtBr.
Key Features:
- Environmentally friendly replacement for hazardous EtBr
- Excitation compatible with both UV and blue light sources
- Non-mutagenic properties ensure user safety

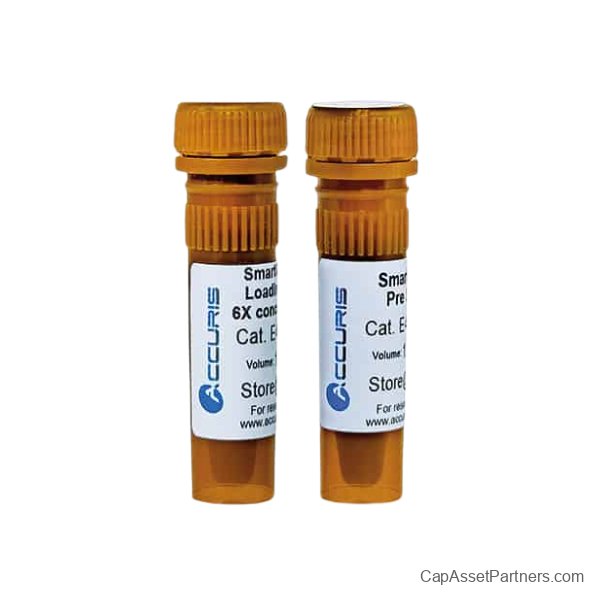

- Available in two formulations: SmartGlow™ PS (Pre-Stain) and SmartGlow™ LD (Loading Dye)

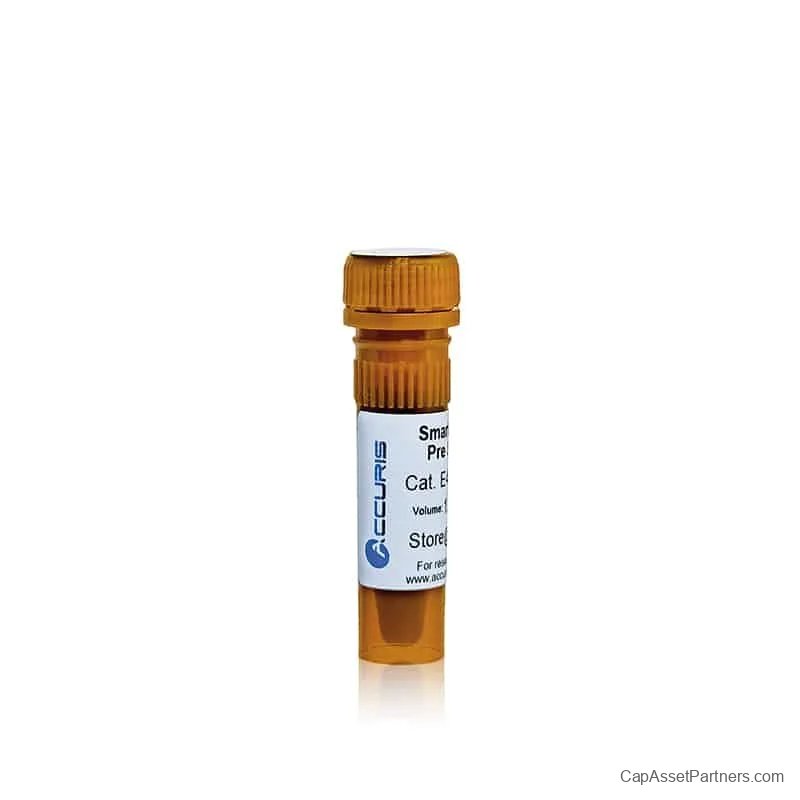

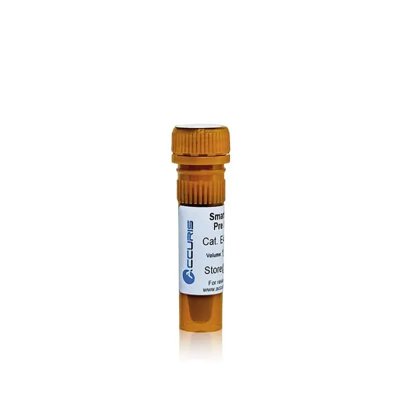

SmartGlow™ PS (Pre-Stain) Details:

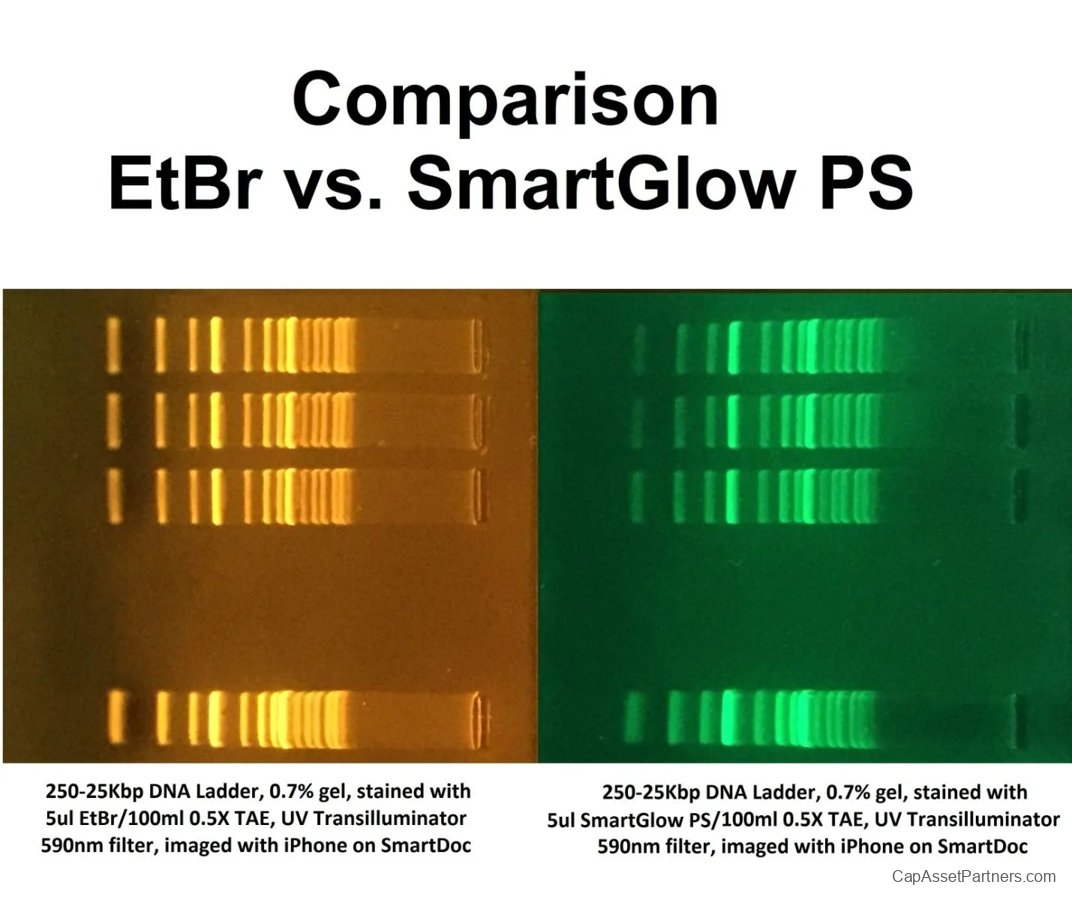

SmartGlow™ PS is specifically engineered as a direct replacement for Ethidium Bromide in agarose and polyacrylamide gel electrophoresis. When bound to double-stranded DNA (dsDNA), single-stranded DNA (ssDNA), or RNA, it emits a vivid green fluorescence. The stain exhibits excitation peaks at 290 nm and 490 nm, allowing seamless incorporation into both UV and blue light protocols.

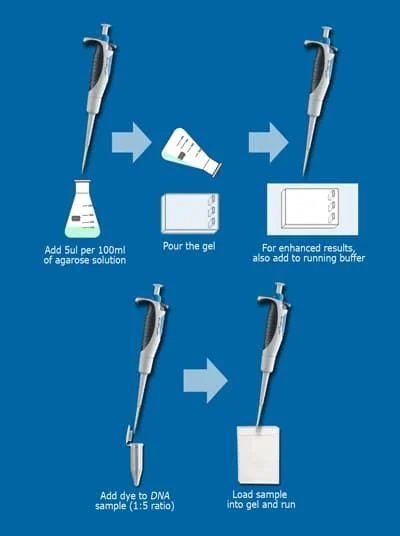

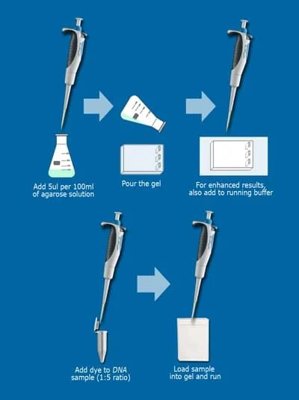

Usage Protocol for SmartGlow™ PS:
- Prepare 100 mL of agarose or polyacrylamide gel solution.
- Add 5 µL of SmartGlow™ PS to the gel solution prior to pouring.
- For optimal sensitivity, incorporate SmartGlow™ PS into the running buffer at a concentration of 2.5 µL to 5 µL per 100 mL.
- Post-electrophoresis, visualize the gel using a UV or blue light illuminator.

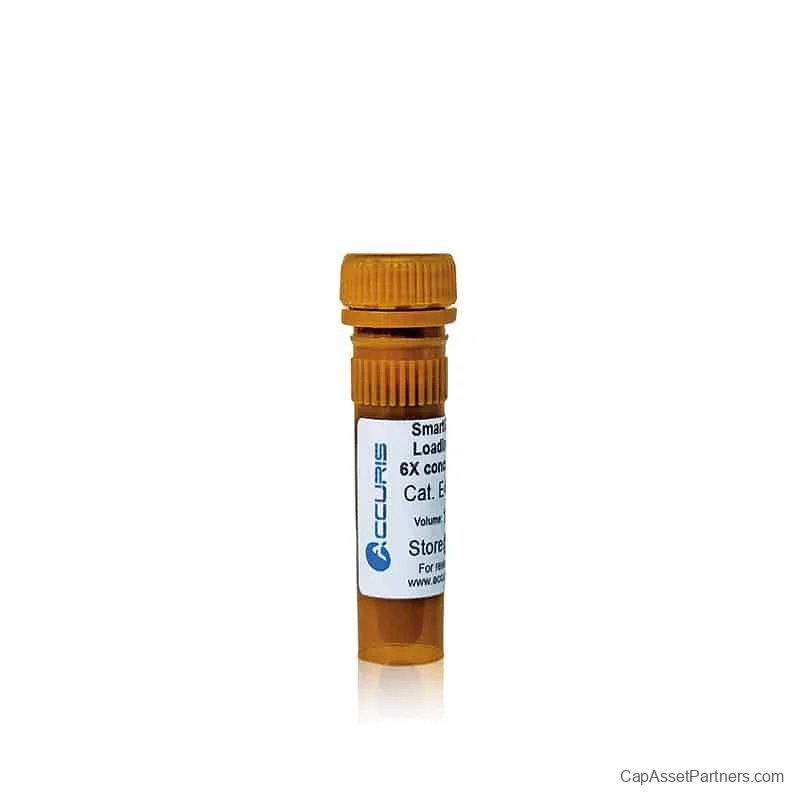

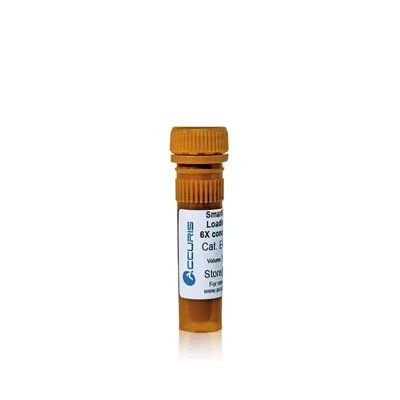

SmartGlow™ LD (Loading Dye) Details:
SmartGlow™ LD is provided in a concentrated 6X formulation, designed for easy integration into sample preparation without the need for additional dye in the gel or running buffer. Upon electrophoretic separation, the dye will emit green fluorescence when interacting with dsDNA, ssDNA, or RNA.
Usage Protocol for SmartGlow™ LD:
- Prepare your agarose or polyacrylamide gel solution.
- Mix SmartGlow™ LD with your samples and DNA markers at a 1:5 dilution (dye to sample).
- Once electrophoresis is completed, visualize the results using a UV or blue light illuminator.
Specifications:
| SKU |
Type |
| E4500-LD |
Loading Dye |
| E4500-PS |
Pre-Stain |
Downloadable Resources:
- SmartGlow™ LD Protocol Instructions
- SmartGlow™ PS Protocol Instructions
