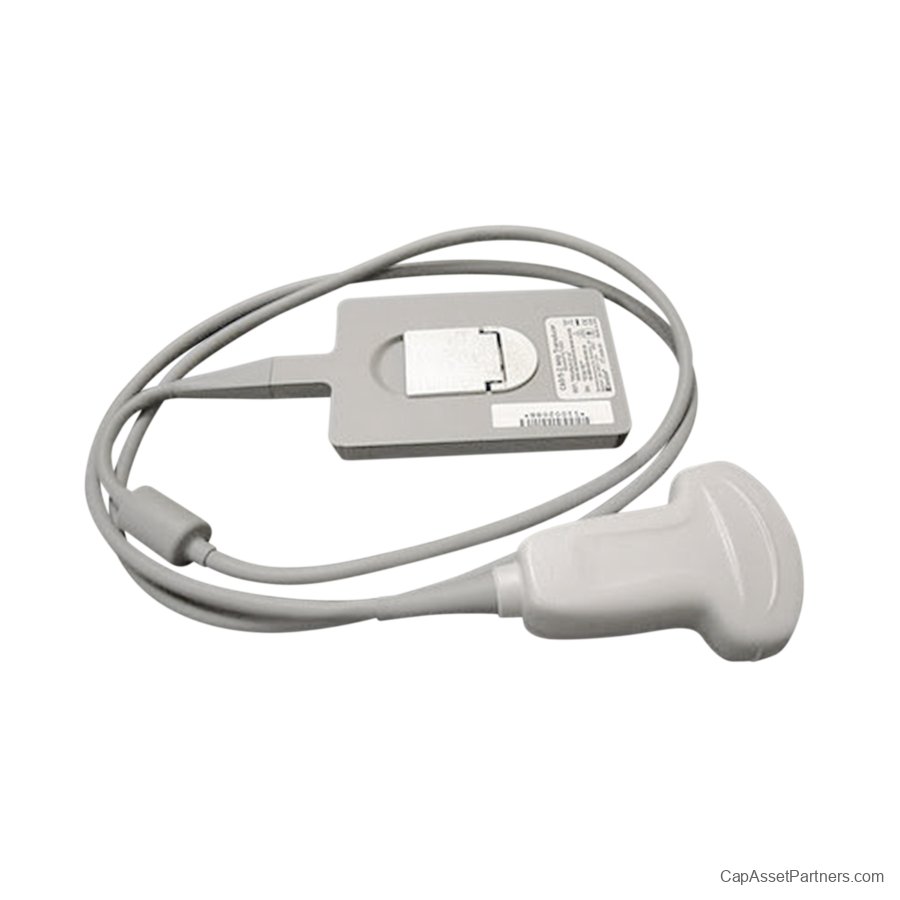

Sonosite C60/5-2 for Titan Ultrasound Probe

Introducing the Sonosite C60/5-2 MHz 60mm Curved Array Transducer, an essential tool for a wide range of medical imaging applications. Designed specifically for general-purpose abdominal and OB/GYN examinations, this versatile ultrasound probe delivers exceptional performance and reliability.
Compatible with several part numbers, including P00005, P01150, P01385, P01955, P01958, P02098, P02115, P02133, P03367, P04100, V04100, and V04969, the C60/5-2 provides high-quality imaging to enhance diagnostic accuracy.
Whether you are upgrading your medical equipment or expanding your ultrasound capabilities, the Sonosite C60/5-2 is an invaluable addition to any clinical setting. Explore the benefits of superior imaging technology and improve your diagnostic procedures today!

Sonosite C60/5-2 Ultrasound Probe Specifications:

• Type: Curvilinear Array

• Frequency Range: 2 to 5 MHz

• Active Element Size: 60 mm (2.36 in)

• Beam Width: 60 mm (2.36 in) at 4cm depth

• Operating Depth Range:

• Minimum: 2 cm (0.79 in)

• Maximum: 30 cm (11.81 in)

• Field of View:

• Lateral: 85°

• Elevation: 40°

• Weight: 250 g (8.82 oz)

• Connector Type: Proprietary SonoSite connector

• Compatibility: Compatible with Titan ultrasound systems

• Applications: Abdominal, obstetrics, gynecology, and emergency imaging

Ensure compatibility with your specific ultrasound system before use.
