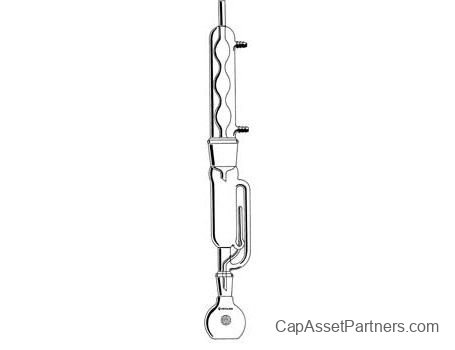

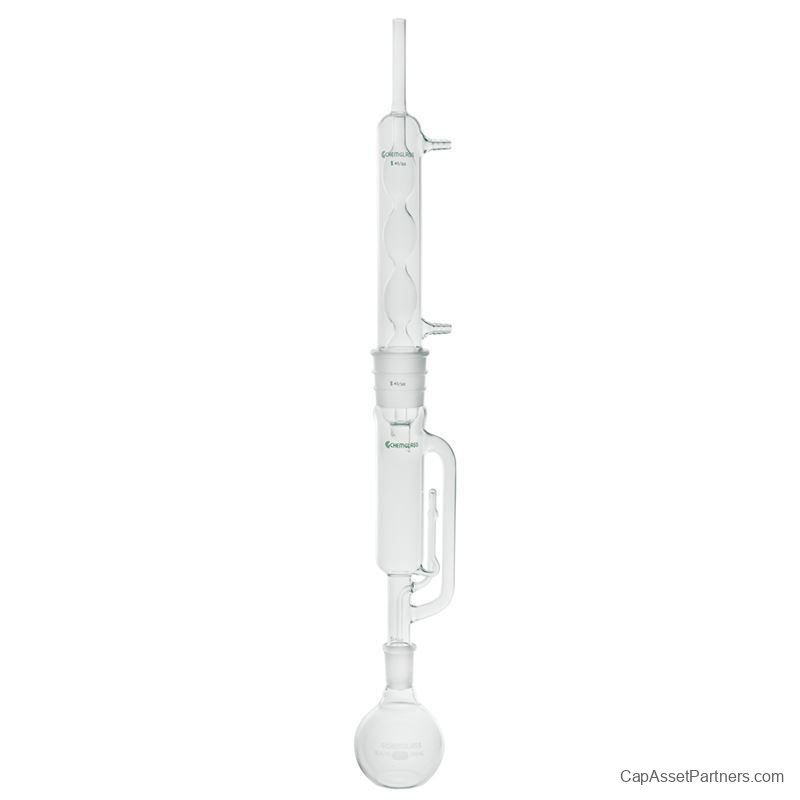

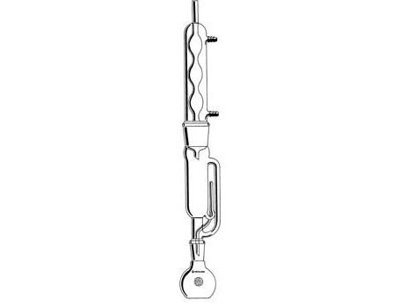

Soxhlet Extraction Apparatus, Complete, Flat Bottom Flask
Availability: In Stock!
Lead Times May Vary.
The Soxhlet Type Extraction Apparatus is an essential tool for laboratories focused on the continuous extraction of solids utilizing a suitable solvent. Designed for maximum efficiency, this extractor allows for the use of paper or glass thimbles, enhancing adaptability in your experiments.
Featuring an Allihn condenser with an enlarged uptake tube, this apparatus significantly improves condensing capacity, ensuring optimal performance during extraction processes. The complete setup includes:
For convenience and continuous operation, additional replacement parts are readily available, ensuring minimal downtime in your workflow.
Please note: The Soxhlet extraction apparatus is compatible with cellulose, glass microfiber, or fritted glass extraction thimbles (not supplied).
Specifications
| SKU |
Inner Diameter |
For Use With |
| CG-1368-03 |
Extractor: 50 mm |
Glass Thimble: 45 x 130
Paper Thimble: 43 x 123 |
| CG-1368-02 |
Extractor: 38 mm |
Glass Thimble: 35 x 90
Paper Thimble: 33 x 80 |
| CG-1368-01 |
Extractor: 30 mm |
Glass Thimble: 25 x 85
Paper Thimble: 25 x 80 |
