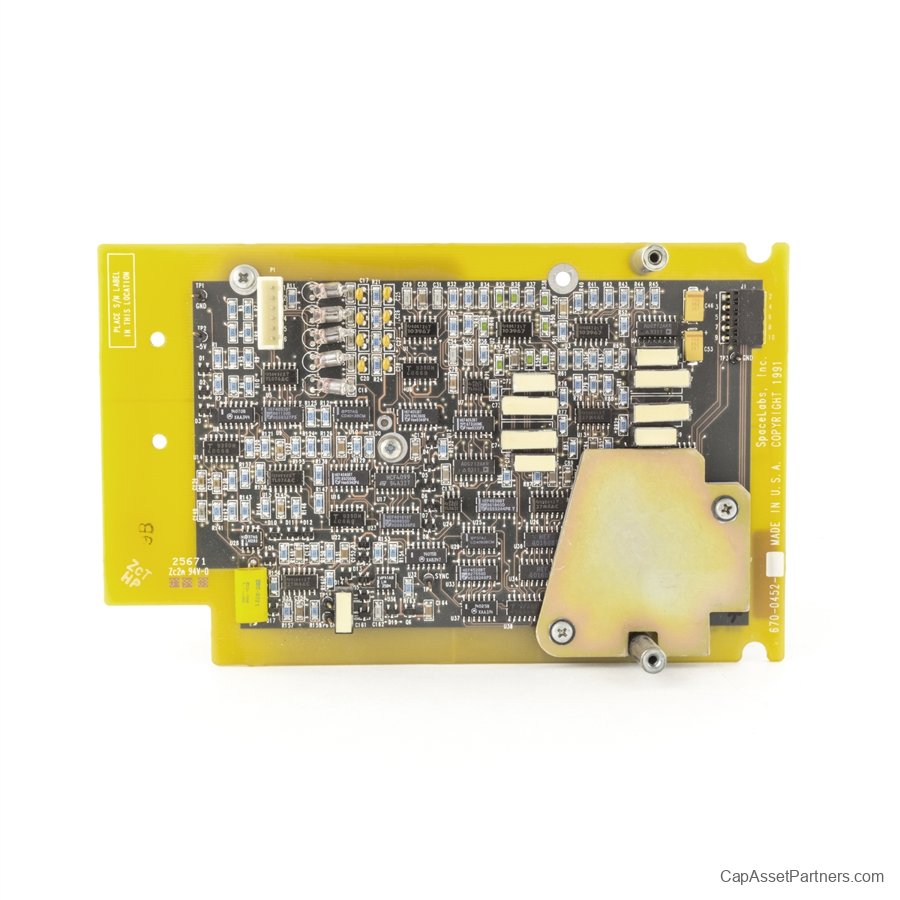

Spacelabs 90470 Multi Parameter Module ECG / RESP Circuit Board Assembly PCBA

Introducing the Spacelabs 90470 Multi Parameter Module ECG / RESP Circuit Board Assembly PCBA – a vital component designed for reliability in patient monitoring. This high-quality assembly is prepared for immediate installation and is essential for ensuring precise electrocardiography (ECG) and respiratory data monitoring.
Each Spacelabs 90470 module has undergone thorough testing and has been meticulously cleaned to meet stringent manufacturer specifications. This attention to detail guarantees that you receive a product that performs optimally in critical care settings.
Compatibility is key with this assembly, as it seamlessly integrates with the Spacelabs 90470 Multi Parameter Modules. For your reference, it also aligns with OEM part number 670-0452-02, ensuring you get the right fit for your medical equipment needs.
Elevate your monitoring capabilities with the dependable Spacelabs 90470 Multi Parameter Module ECG / RESP Circuit Board Assembly PCBA. Trust in the quality and performance that have made this module a staple in healthcare facilities.

Spacelabs 90470 Multi Parameter Module ECG / RESP Circuit Board Assembly (PCBA) Specifications:

• Dimensions:

• Length: 12.0 inches (30.5 cm)

• Width: 6.0 inches (15.2 cm)

• Height: 1.0 inch (2.54 cm)

• Weight:

• 1.5 lbs (0.68 kg)

• Input Voltage:

• 12 V DC

• Power Consumption:

• 5 W

• Operating Temperature:

• 0°C to 50°C (32°F to 122°F)

• Storage Temperature:

• -20°C to 70°C (-4°F to 158°F)

• ECG Channels:

• Number of Channels: 12

• ECG Gain:

• 1, 2, 5, 10, 20

• ECG Frequency Response:

• 0.05 Hz to 150 Hz

• Respiration Method:

• Impedance Pneumography

• Respiration Rate Range:

• 0 to 100 breaths per minute

• Input Impedance (ECG Leads):

• > 1 M?

• Signal Conditioning:

• Differential Amplifier

• Communication Protocol:

• Digital Interface

• Compliance:

• EN 60601-1, IEC 60601-2-27

• Features:

• Multi-parameter monitoring capability

• Modular design for easy integration

• Patient disconnect alarm

• Connectivity Options:

• RS-232 or USB interface (depending on configuration)

• Manufacture Date Code:

• XX/XXXX (consult for specific batch information)

Note: Always refer to the manufacturer's documentation for detailed installation and operational guidelines.
