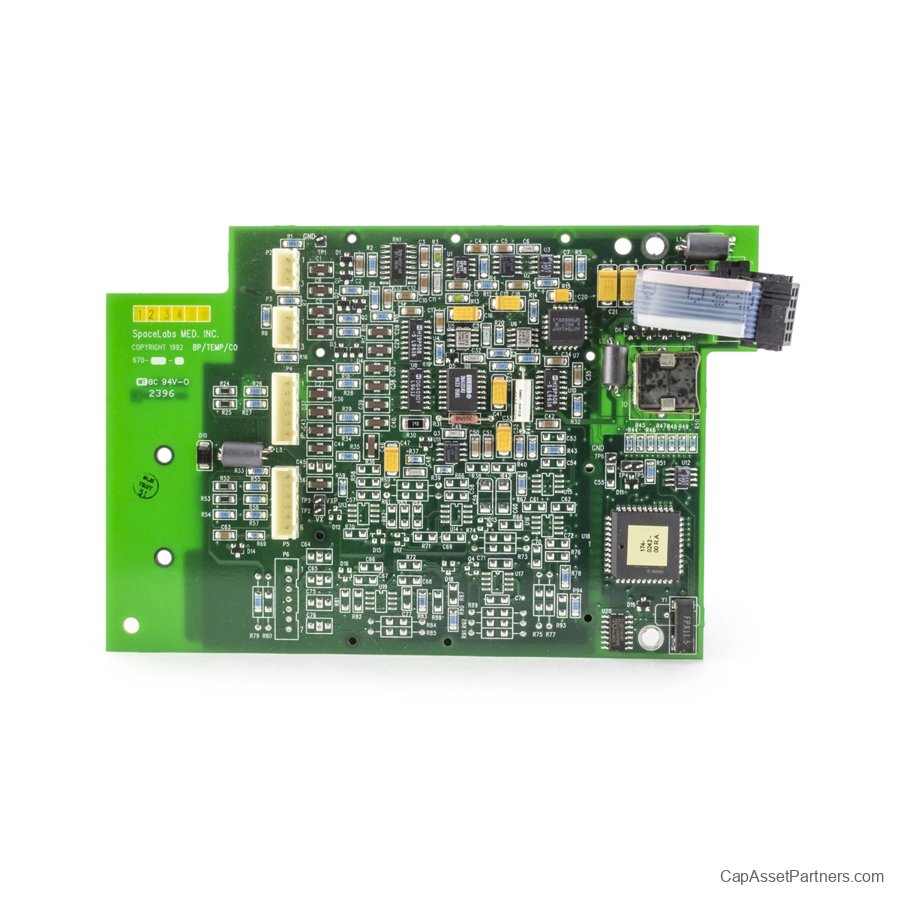

Spacelabs 90470 Multi Parameter Module Pressure / Temperature Circuit Board PCB

Introducing the Spacelabs 90470 Multi Parameter Module Pressure/Temperature Circuit Board PCB—a high-quality component essential for ensuring optimal performance in your medical equipment. This meticulously tested and cleaned PCB assembly is designed to meet manufacturers' specifications, guaranteeing reliability and accuracy in monitoring pressure and temperature.
Compatible with Spacelabs 90470 Multi Parameter Modules, this circuit board allows for seamless integration into your existing systems, ensuring consistent performance in critical medical applications. It is an essential part for maintaining operational integrity in healthcare environments.
The Spacelabs 90470 PCB is identified by OEM part number 670-0604-05, making it a perfect choice for medical facilities looking to enhance their equipment's capabilities without compromising on quality. Trust in this quality assembly to deliver precise monitoring for enhanced patient care.

Spacelabs 90470 Multi Parameter Module Specifications:

• Model: 90470 Multi Parameter Module

• Input Voltage: 5 V DC

• Power Consumption: 2 W (typical)

Pressure Measurement:

• Pressure Range:

• 0 to 300 mmHg (0 to 40 kPa)

• Resolution:

• 1 mmHg (0.133 kPa)

• Accuracy:

• ±1 mmHg at 25°C (±0.133 kPa)

Temperature Measurement:

• Temperature Range:

• 32°F to 104°F (0°C to 40°C)

• Resolution:

• 0.1°F (0.1°C)

• Accuracy:

• ±0.5°F at 98.6°F (±0.3°C at 37°C)

Communication:

• Interface:

• RS-232 or similar serial communication protocol

Physical Characteristics:

• Dimensions:

• 5.5 in x 3.25 in x 1 in (140 mm x 82.5 mm x 25 mm)

• Weight:

• 0.5 lbs (0.23 kg)

Operating Conditions:

• Temperature:

• 50°F to 104°F (10°C to 40°C)

• Humidity:

• 30% to 75% RH (non-condensing)

Storage Conditions:

• Temperature:

• -4°F to 140°F (-20°C to 60°C)

• Humidity:

• 10% to 90% RH (non-condensing)

Safety and Compliance:

• emissions: Compliant with relevant standards (please refer to regulatory documentation)

Additional Notes:

• Compatible with Spacelabs monitoring systems.

• Designed for clinical environments with medical-grade specifications.

Make sure to consult the manufacturer's manual for detailed installation and usage instructions.
