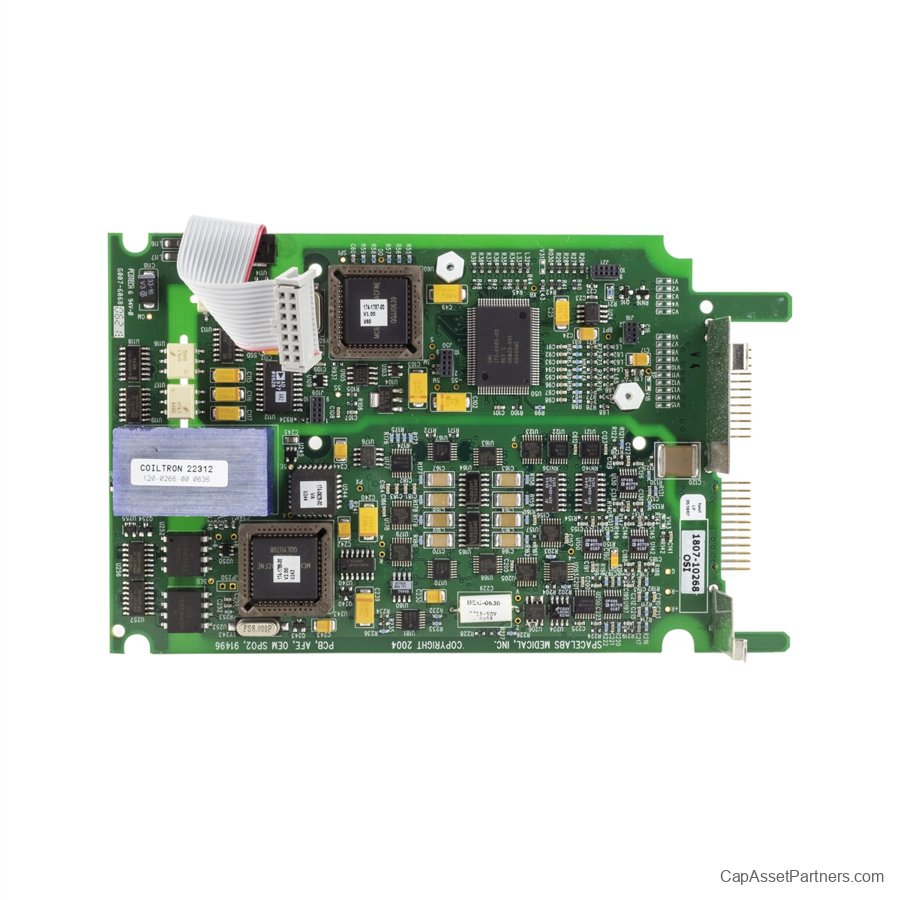

Spacelabs 90496 Multi Parameter Module Analog Front End Circuit Board PCBA

Enhance the performance of your medical equipment with the Spacelabs 90496 Multi Parameter Module Analog Front End Circuit Board (PCBA). This high-quality circuit board assembly is essential for the reliable operation of Spacelabs 90496 Multi Parameter Modules, ensuring accurate monitoring and analysis in a clinical setting.
Expertly tested and cleaned to meet stringent manufacturer specifications, this PCBA is designed for seamless installation and optimal functionality. Its OEM part number is 670-1305-00, ensuring you receive the right component for your needs. Upgrade your medical equipment with a dependable and fully functional analog front end circuit board that supports the critical demands of patient monitoring.

Spacelabs 90496 Multi Parameter Module Analog Front End Circuit Board PCBA Specifications:

• Input Voltage:

• Range: 10-30 VDC

• Nominal: 24 VDC

• Power Consumption:

• Typical: 1.5 W

• Maximum: 2 W

• Signal Inputs:

• ECG inputs: 0.5 mV to 5 mV

• SpO2 inputs: 0.5 V to 5 V

• NIBP pressure sensor input: 0-300 mmHg (0-40 kPa)

• Output Characteristics:

• Analog Output Resolution: 12-bit

• Sampling Rate: Up to 1000 Hz

• Communication Interfaces:

• RS-232: 9600 bps

• I2C: Up to 400 kHz

• Environmental Conditions:

• Operating Temperature: 0°C to 50°C (32°F to 122°F)

• Storage Temperature: -20°C to 70°C (-4°F to 158°F)

• Humidity Range: 10% to 90% RH, non-condensing

• Dimensions:

• Size: 6.0 in x 4.0 in x 0.5 in (152 mm x 102 mm x 12.7 mm)

• Weight: 0.5 lbs (0.23 kg)

• Mounting Type:

• PCB mount

• Certifications:

• IEC 60601-1

• UL / CUL listed

(Note: Ensure to verify specifications with the manufacturer's documentation, as they may vary or be updated.)
