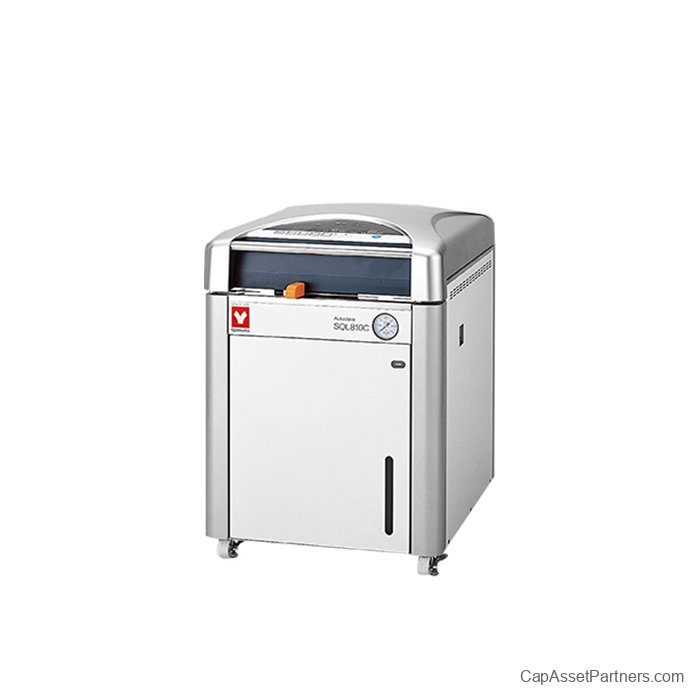

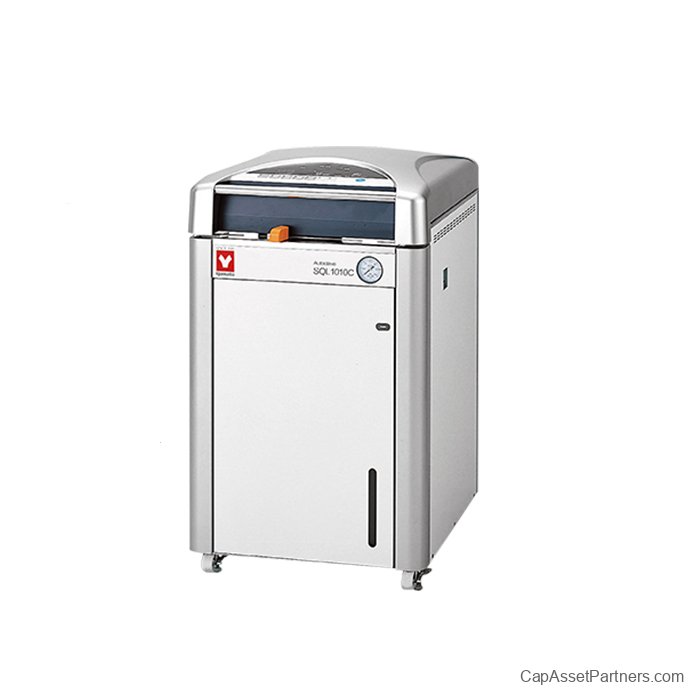

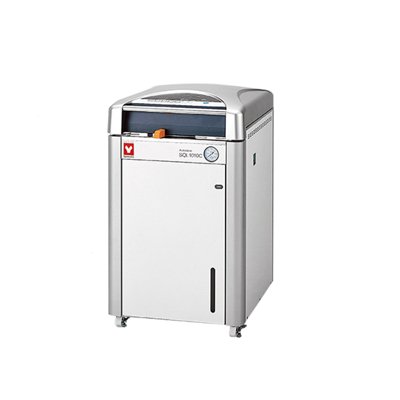

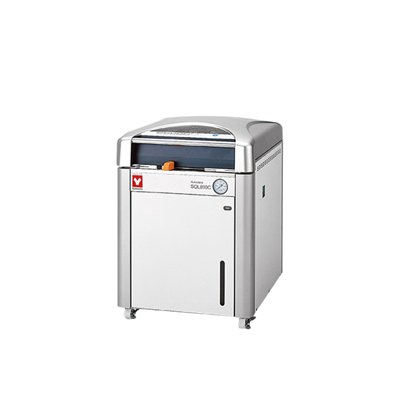

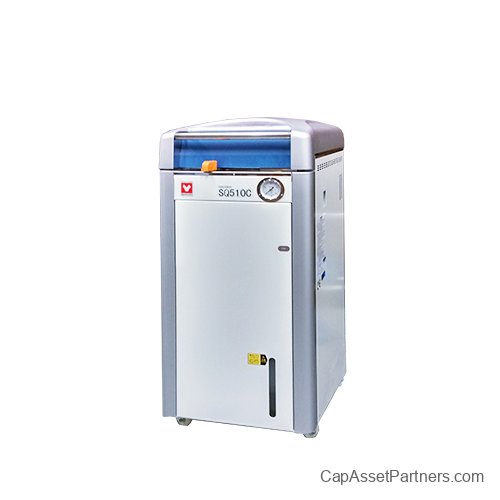

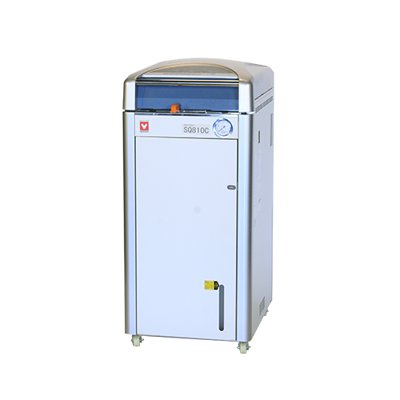

SQ Series Large Capacity Autoclaves & Steam Sterilizers

Experience superior sterilization efficiency with the SQ Series Large Capacity Autoclaves and Steam Sterilizers. Designed for high-capacity performance, the top-loading configuration enables quick handling of larger loads, complemented by an advanced cooling fan system that ensures rapid cool-down times. Engineered for both simple and complex sterilization processes, these units excel whether you're sterilizing instruments, culture media, or liquids.

Key Features:

    • PID Microprocessor Controller: Ensures precision and consistency in operation.
    • User-Friendly Interface: Simple setting and operation for efficient use.
    • Diverse Sterilization Options: Capable of sterilizing instruments, culture media and liquids, as well as melting culture media allowing versatile applications.
    • Custom Programs: Save specific sterilization programs for ease of repeated use.
  • Safety First:
      • Lid interlock mechanism for safe operation.
      • Drain bottle unset alarm to prevent overflow.
      • Memory malfunction feature for fault detection.
      • Automatic shutdown in case of malfunction for increased safety.
      • Self-diagnostic functions to streamline issue identification.
    • Efficient Time Management: Standard features include timer start and pre-heating options.
    • Mobility: Conveniently mounted on wheels for easy movement.

Included Accessories:

    • Two stainless steel mesh baskets for organized loading.
    • Vapor cup for efficient steam management.
    • Drain bottle to facilitate waste management.
    • Drain board for easy collection of residuals.
    • 30 chemical indicators for monitoring sterilization efficacy.
    • High-quality filter to ensure clean operation.

Specifications:

SKU Operating Temperature Range Operating Pressure Timer Range
SQ-500C 45°C to 135°C 0.255 Mpa 1 min to 99 hrs 59 min
SQ-510C 45°C to 135°C 0.255 Mpa 1 min to 99 hrs 59 min
SQ-810C 45°C to 135°C 0.255 Mpa 1 min to 99 hrs 59 min
SQL-1010C 45°C to 135°C 0.255 Mpa 1 min to 99 hrs 59 min

Additional Information:

SKU Dimensions Power Requirement Controller
SQ-500C 25.98 in x 20.47 in x 34.69 in 110-120 VAC, 12.5-24.5 A PID Microprocessor
SQ-510C 25.98 in x 20.47 in x 34.69 in 200-240 VAC, 10.5-12.5 A PID Microprocessor
SQ-810C 25.98 in x 20.47 in x 45.71 in 200-240 VAC, 10.5-12.5 A PID Microprocessor
SQL-1010C 29.92 in x 26.77 in x 45.43 in 220 VAC, 19 A PID Microprocessor
