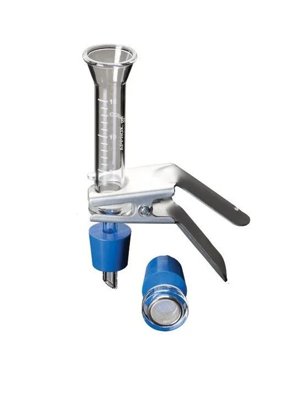

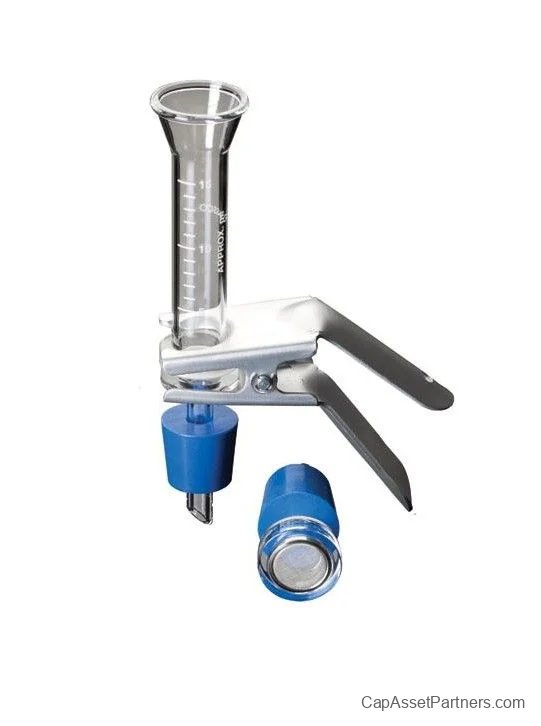

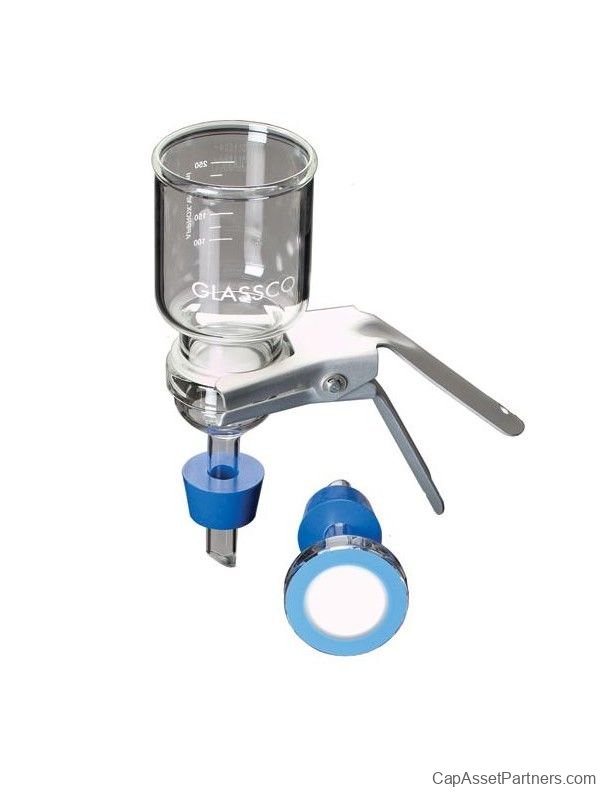

Experience precision and reliability with the Stainless Steel Microanalysis Vacuum Filter Holder Set. This comprehensive set is specifically designed for the accurate analysis of particulate or biological contamination in small volumes utilizing a vacuum filtration system.
Key Features:
- Constructed from durable stainless steel, ensuring longevity and resistance to corrosion.
- Includes a Borosilicate Glass Funnel and Base for clear visibility and superior chemical resistance.
- Features a Removable Stainless Steel Screen Filter Support for ease of use and maintenance.
- Comes with an Anodized Aluminum Spring Clamp, securely holding components together.
- Equipped with a Perforated Silicone Stopper (#5) for easy attachment to vacuum filtering flasks.
Specifications:
| SKU |
Diameter |
Height |
For Use With |
| FHMA25-S |
2.5 cm (Filter: 25 mm) |
15.2 cm |
Biological Contamination Analysis |
Additional Information:
| SKU |
Filtration Area |
Inlet/Outlet |
| FHMA25-S |
2.5 cm² |
6mm O.D. Tubulated Cap Sidearm to Vacuum |
Note: Membrane filters are not included with this set. Thick prefilters or laminated filters will not seal in this holder, and the unit is not autoclavable with membrane filters installed. For optimal results, unlaminated PTFE or PVDF membranes are recommended for solvent applications.
