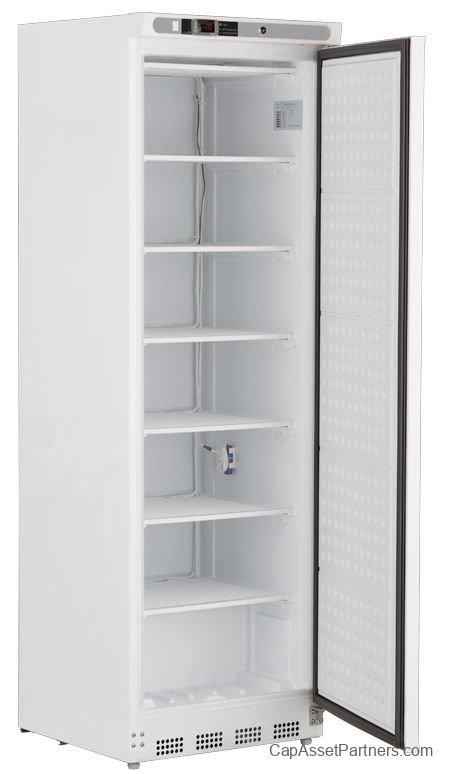

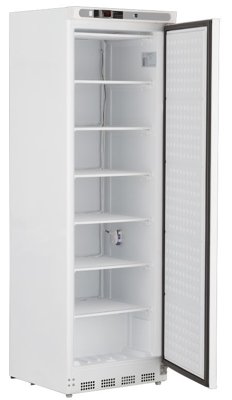

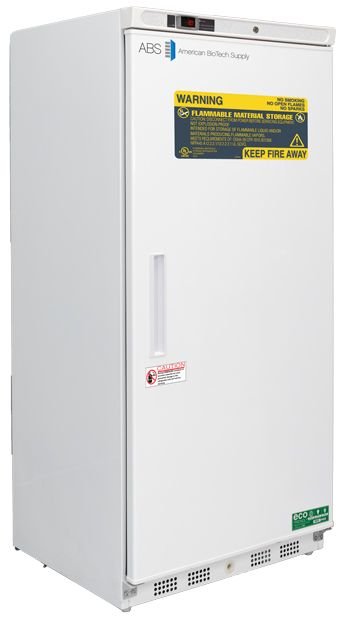

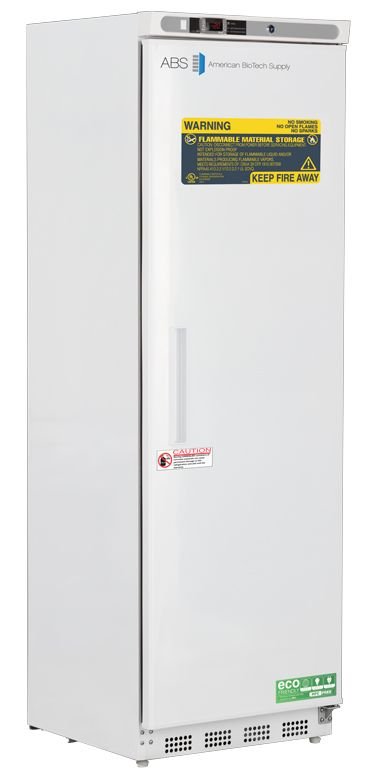

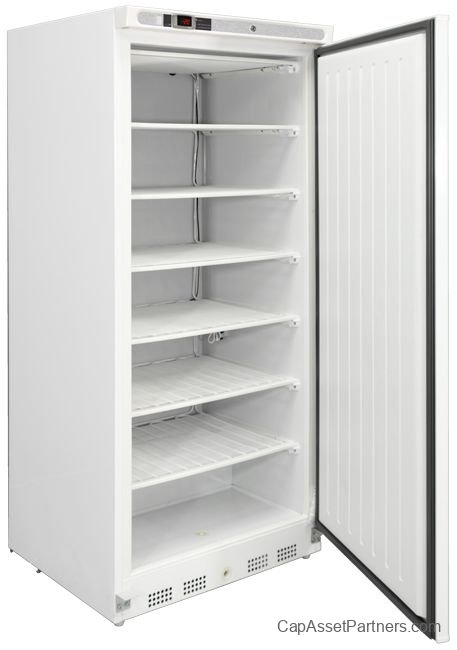

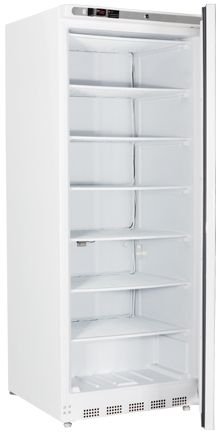

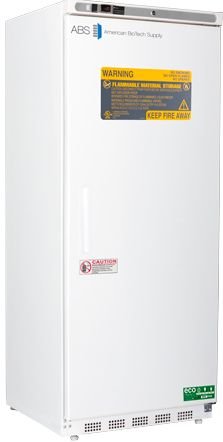

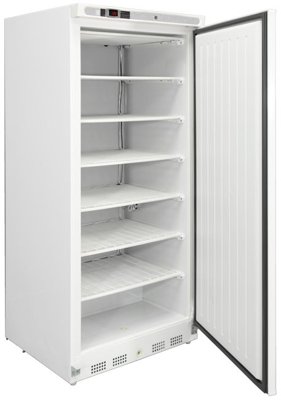

Standard Flammable Storage Freezers
The Standard Flammable Storage Freezers are expertly designed to comply with NFPA and OSHA guidelines 45 and 70, ensuring safe storage of flammable materials in laboratory environments. Engineered with ATEX and non-sparking components, these freezers are ideal for general laboratory work areas, providing a safe and reliable cooling solution. Please note, they are not intended for use in areas where volatile or explosive conditions may be present.
Key Features
- Microprocessor temperature controller for precise climate management
- Digital temperature display with simulated probe for easy monitoring
- Audible and visual high/low temperature alarms for enhanced safety
- Remote alarm contacts for immediate alerts
- Solid swing door, right hinged for convenient access
- Keyed door lock enhancing security
- Magnetic door gasket ensuring a positive seal
- Adjustable leveling legs for stability
- Probe access port (3/4") for external temperature monitoring
- Durable powder coat exterior for longevity
- High density urethane foam insulation for effective temperature retention
Certification
This product is UL/C-UL or ETL listed, guaranteeing compliance with stringent safety standards.
Specifications
SKU |
Door Type |
Operating Temperature Range |
Certification |
Warranty |
Hinge |
ABT-HC-FFP-14 |
Solid Swing Door |
-15°C to -25°C |
UL/C-UL or ETL listed |
2 Years |
Right |
ABT-HC-FFP-17 |
Solid Swing Door |
-15°C to -25°C |
UL/C-UL or ETL listed |
2 Years |
Right |
ABT-HC-FFP-20 |
Solid Swing Door |
-15°C to -25°C |
UL/C-UL or ETL listed |
2 Years |
Right |
Additional Information
SKU |
Dimensions |
Electrical Information |
Refrigerant |
Plug Type |
Controller |
ABT-HC-FFP-14 |
23.63 in x 24.38 in x 73.0 in |
115V, 60Hz, 3A, 1/3 HP |
R290 |
NEMA 5-15 Plug |
Microprocessor |
ABT-HC-FFP-17 |
30.75 in x 28.63 in x 67.75 in |
115V, 60Hz, 5.5A, 1/2 HP |
R290 |
NEMA 5-15 Plug |
Microprocessor |
ABT-HC-FFP-20 |
30.75 in x 29.0 in x 74.63 in |
115V, 60Hz, 5.5A, 1/2 HP |
R290 |
NEMA 5-15 Plug |
Microprocessor |
Important Installation Note: This unit requires a minimum of 4 inches clearance on the sides and back to ensure proper ventilation. Failure to comply may result in voided warranty and potential temperature maintenance issues.
