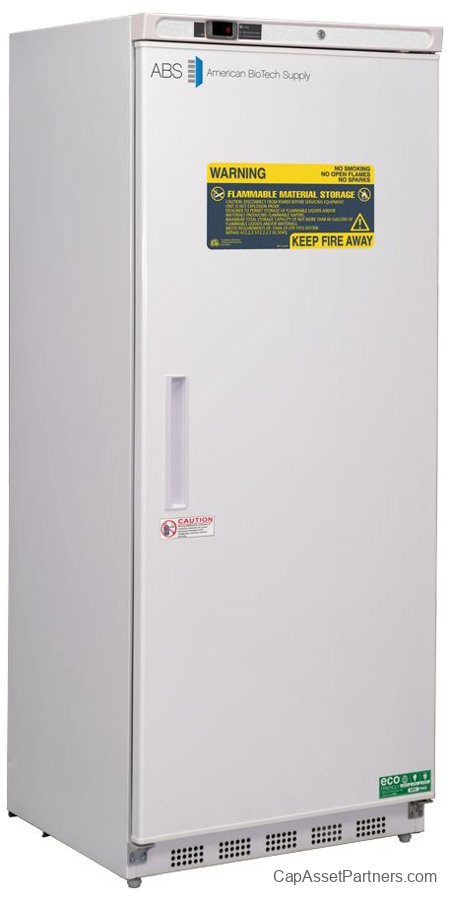

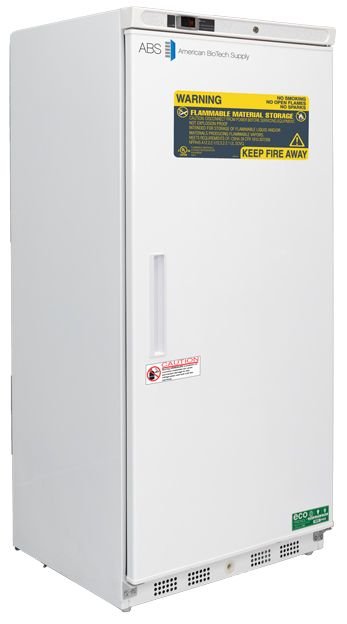

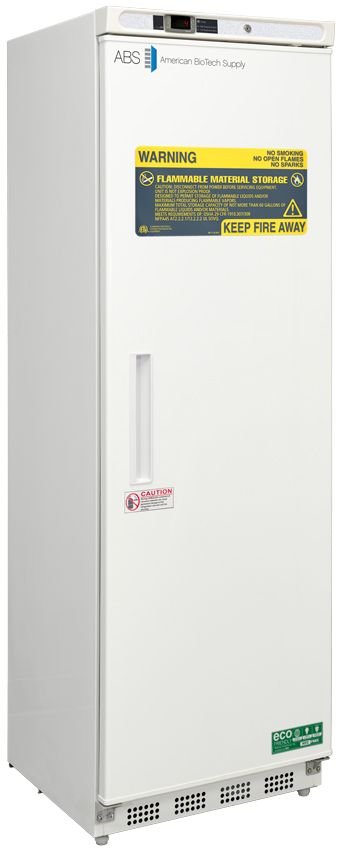

Standard Flammable Storage Refrigerators
Designed with the utmost attention to safety and efficiency, our Standard Series Flammable Storage Refrigerators ensure optimal preservation of sensitive materials in a compact, cost-effective format. All units utilize natural hydrocarbon refrigerants, promoting a sustainable option without compromising performance.
Key Features:
- Advanced microprocessor temperature control for precision in temperature management.
- Digital temperature display featuring an alarm module, complete with battery backup for uninterrupted temperature monitoring.
- Temperature display resolution at 0.1° adjustable in °C or °F for meticulous tracking.
- Comprehensive alarms:
- Audible and visual high/low temperature alerts.
- Sensor error notifications.
- Resettable min/max temperature history.
- Remote alarm contacts for external monitoring.
- Alarm validation systems (audible, visual, and remote).
- Mute function with ring back capability.
- Single solid swing door, right-hinged (non-reversible) for easy access.
- Secure keyed door lock for enhanced security.
- Magnetic door gasket ensures a tight seal, maintaining internal climate integrity.
- Durable heavy-duty door handle for ease of use.
- Equipped with leveling legs for stable positioning on various surfaces.
- One 3/4 inch probe access port facilitates easy internal monitoring.
- Sleek white textured cabinet and door finish for a professional appearance.
- High-density urethane foam insulation for superior energy efficiency.
- Employs natural hydrocarbon refrigerant (R600A) for minimal environmental impact.
- Constructed with ATEX and non-sparking components emphasizing safety in laboratory settings.
- Cycle defrost feature enhances performance consistency.
Certifications:
- ETL listed for safety compliance.
- C-ETL listed reflecting Canadian safety standards.
- Certified to UL471 standards, ensuring quality in refrigeration.
- Complies with NFPA 45 and NFPA 30 regulations for the cold storage of flammable and combustible materials in unclassified laboratory environments.
Product Specifications:
SKU |
Door Type |
Operating Temperature Range |
Certification |
ABT-HC-FRP-14 |
Solid Swing Door |
1°C to 10°C |
ETL, C-ETL listed, UL471 Standards |
ABT-HC-FRP-17 |
Solid Swing Door |
1°C to 10°C |
ETL, C-ETL listed, UL471 Standards |
ABT-HC-FRP-20 |
Solid Swing Door |
1°C to 10°C |
ETL, C-ETL listed, UL471 Standards |
Additional Information:
SKU |
Dimensions |
Electrical Information |
Plug Type |
ABT-HC-FRP-14 |
24.375 in x 23.625 in x 73.0 in |
115V, 60Hz, 2.5A |
NEMA 5-15P |
ABT-HC-FRP-17 |
28.625 in x 30.75 in x 67.75 in |
115V, 60Hz, 2.5A |
NEMA 5-15P |
ABT-HC-FRP-20 |
29.0 in x 30.75 in x 74.625 in |
115V, 60Hz, 2.5A |
NEMA 5-15P |
Note: Designed for laboratory use and not suitable for environments with volatile/explosive conditions. Ensure 4 inches of clearance around the back and sides for optimal ventilation. Improper installation may void warranty and lead to performance issues.
