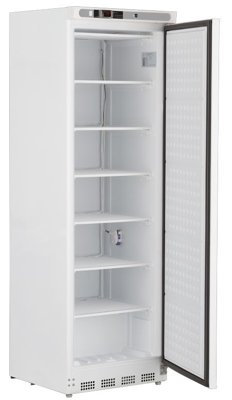

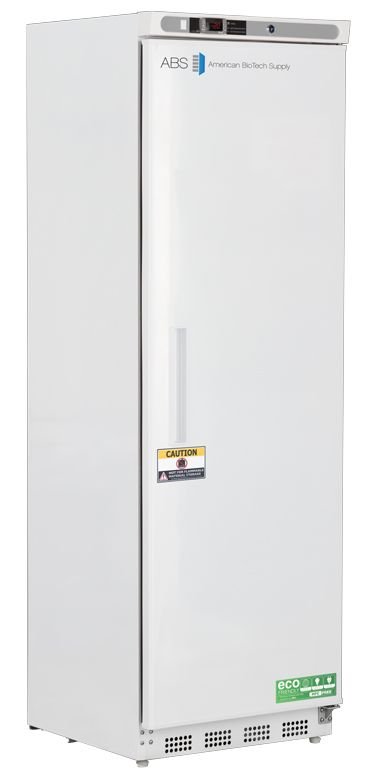

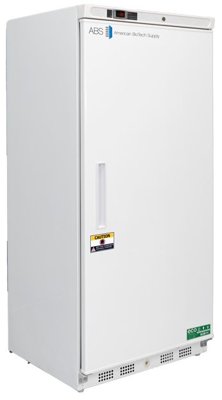

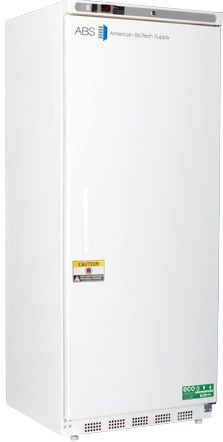

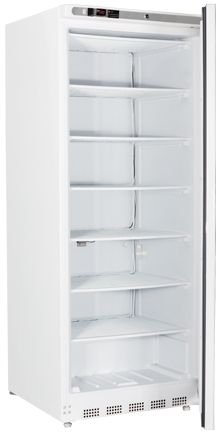

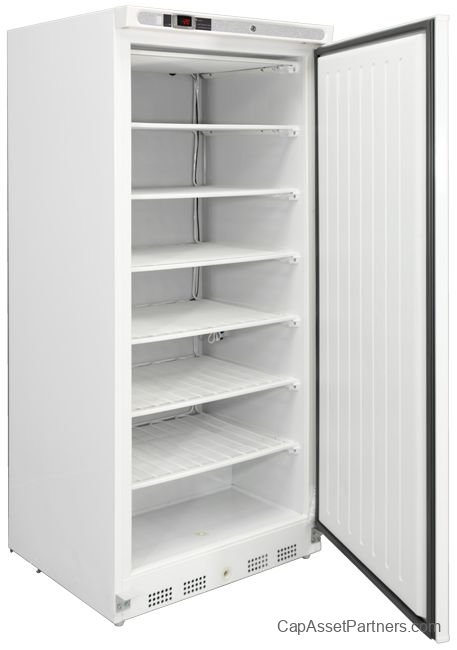

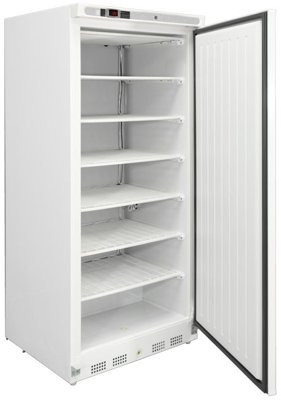

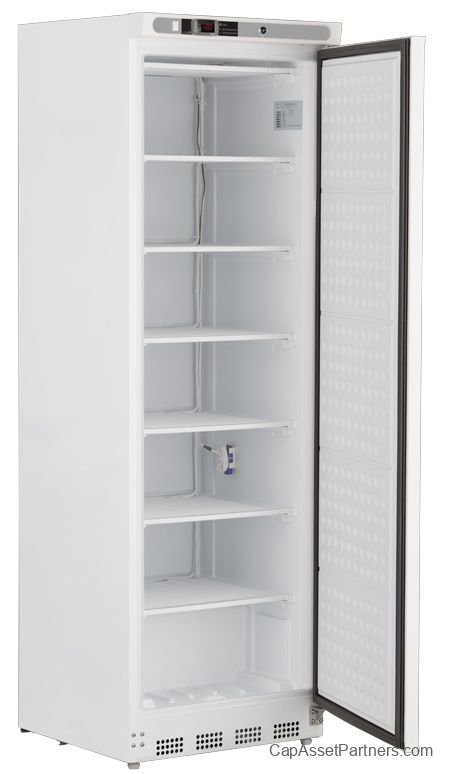

Standard HC Manual Defrost Laboratory Freezers
Designed for optimal cold storage, the Standard HC Manual Defrost Laboratory Freezers are an essential asset for professional scientific and industrial environments. These units feature robust capabilities including temperature alarms, keyed door locks, and forced draft circulation, all complemented by precise temperature monitoring with microprocessor control.
The ABS Standard Series freezers deliver a cost-effective solution combined with multi-functional features. Each model utilizes natural hydrocarbon refrigerant, ensuring improved energy efficiency while supporting environmental sustainability.
Key Features
- Advanced microprocessor temperature controller with a digital temperature display, providing °C/°F switchable options
- Standard digital temperature display for easy monitoring
- Two probe system: one located in air and the other in the sample bottle
- State switching remote alarm contacts for enhanced alert options
- Audible and visual high and low-temperature alarms to ensure reliable performance
- Construction includes foamed-in-place insulation with EPA compliant high density urethane foam
- Durable white powder coated steel exterior for longevity
- Rear wall port with a 3/4" diameter for added convenience
- NEMA 5-15 Plug that adheres to UL471 requirements, ensuring safety
Certifications
- ETL and C-ETL listed, certified to UL471 standards, demonstrating compliance with hydrocarbon refrigerant safety
Specifications
| SKU |
Door Type |
Operating Temperature Range |
Certification |
Warranty |
Includes |
Hinge |
| ABT-HC-MFP-14 |
Solid Swing Door |
-15°C to -25°C |
UL/C-UL or ETL listed |
2 Year |
Standard Digital Temperature Display |
Right |
| ABT-HC-MFP-17 |
Solid Swing Door |
-15°C to -25°C |
UL/C-UL or ETL listed |
2 Year |
Standard Digital Temperature Display |
Right |
| ABT-HC-MFP-20 |
Solid Swing Door |
-15°C to -25°C |
UL/C-UL or ETL listed |
2 Year |
Standard Digital Temperature Display |
Right |
Additional Information
| SKU |
Dimensions |
Electrical Information |
Refrigerant |
Controller |
| ABT-HC-MFP-14 |
24.375 in x 23.625 in x 73.0 in |
115V, 60Hz, 3A |
R290 |
Microprocessor |
| ABT-HC-MFP-17 |
28.625 in x 30.75 in x 67.75 in |
115V, 60Hz, 5.5A |
R290 |
Microprocessor |
| ABT-HC-MFP-20 |
29.0 in x 30.75 in x 74.625 in |
115V, 60Hz, 5.5A |
R290 |
Microprocessor |
Note: It is recommended to maintain at least 4 inches of clearance around the back and sides of the unit for optimal ventilation. Failure to do so could void warranty and affect temperature maintenance, leading to overheating and possible equipment failure.
