Stryker Laparoscopy Tower

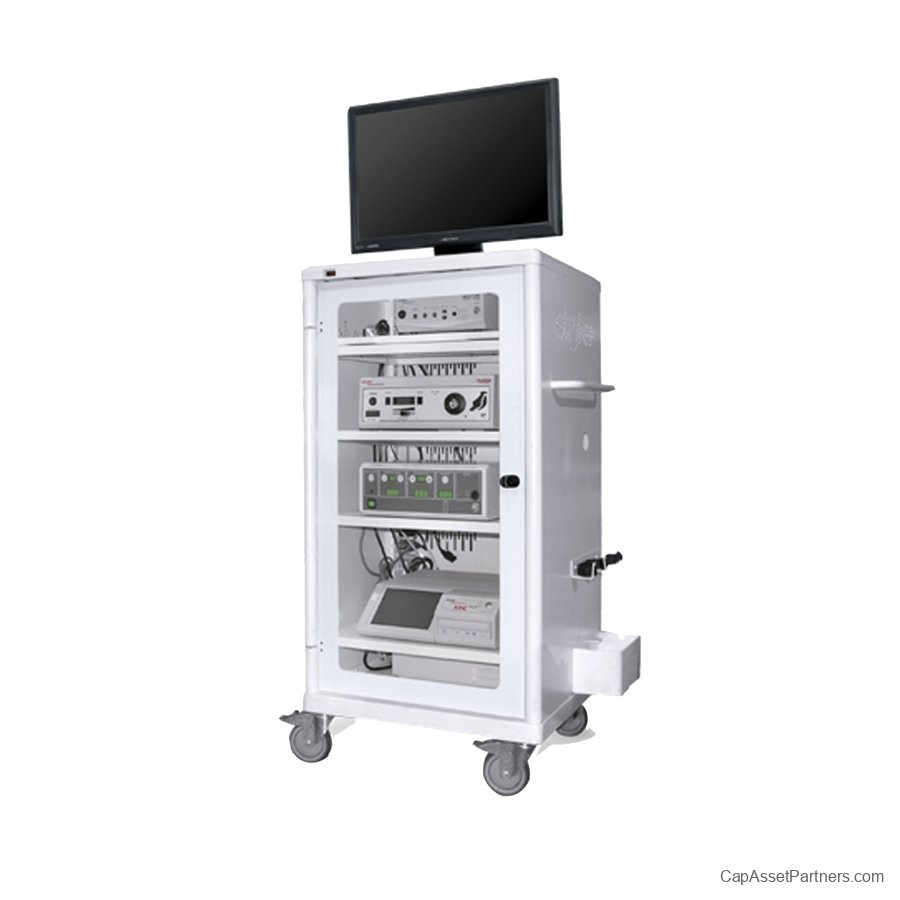

Stryker Laparoscopy Tower: Advanced Visualization and Documentation System
The Stryker Laparoscopy Tower is a cutting-edge solution designed to enhance visualization and documentation during minimally invasive surgical procedures. This versatile unit not only supports laparoscopic surgeries but also accommodates arthroscopy and various rigid endoscopy applications, making it an essential asset for modern operating rooms.
Key Features:

• Comprehensive Utility: The Stryker Laparoscopy Tower is engineered for versatility, offering a robust platform for a wide array of endoscopic procedures. Its advanced capabilities ensure clear visualization and accurate documentation, essential for successful surgical outcomes.

• Digital Documentation: Seamlessly integrate the tower with various Stryker systems, like the Stryker SDC Pro 2 DVD, which provides high-quality digital capture of images and videos for easy storage and retrieval. The intuitive touchscreen interface enhances user experience, making it a valuable tool for surgical teams.

• High-Quality Imaging: Enhance your surgical capabilities with the Stryker 988 3 CHIP Digital Camera, known for delivering crystal clear digital video output, vital for precise visualization during procedures.

• Reliable Illumination: The Stryker X-6000 Light Source is designed to provide consistent, high-performance lighting throughout various endoscopic applications, ensuring that the surgical site is thoroughly illuminated for optimal visibility.

• Complete Surgical Package: This comprehensive system also includes the Stryker 30L Insufflator, a mobile cart, and your choice of a flat screen or tube-based monitor, providing you with all the essential components to enhance your surgical workflow.

Discover how the Stryker Laparoscopy Tower can transform your surgical practice by improving visualization and documentation capabilities, ultimately leading to safer and more efficient patient care.

Stryker Endoscopy SDC Pro 2 DVD

• System Type: Real time, MPEG 1 or 2 compression engine with full IBP encoding

• Video Inputs: S-Video, Composite, SDI; DVI & XGA (DVD system only)

• Video Outputs: S-Video, Composite, SDI; DVI & XGA (DVD system only)

• Audio Input: Stereo

• Resolution: 1024 × 768 or 640 × 480 (with HiRes OFF)

• Image Enhancement: Real time adjustment of Hue, Brightness, Contrast, Saturation, and Save as JPEG

• Disc Save Time: Less than 10 minutes for one full disc

• Disc Capacity: 60 images/Video files, up to a maximum of 1.8GB (CD system) and 4.5GB (DVD system)

• File Format: Standard BMP file, ISO standardized MPEG-1 file, MPEG-2, JPEG (non-progressive, 1:1:1 no sub-sampling)

• CD Recording: Multisession ISO9660 with Joliet extensions

• DVD+RW: ISO UDF Video for DVD Video

• Remote Control: Wireless Infrared, Camera Head Triggering

• Power Consumption: 45W, 100V - 240V at 2A maximum, leakage less than 300 micro Amp

• Agency Approval: UL 2601-1, 2nd Edition; CAN/CSA C22.2 No.601.1-M90; IEC 601-1-2

• Size (control unit): 5.14" H × 16.6" D × 15.9" W (13.0 cm × 42.2 cm × 40.4 cm)

• Shipping Weight (full assembly): 37 lbs. (16.8 kg)

• Network: 10/100 Mbps ethernet

• Auto Printing: 1/2/4/6/8/12/18 images per page

• Display: 8" TFT LCD, with digital touch screen

• Type B Equipment

• NTSC/PAL

• Specialties: General Surgery, Orthopedic, GYN, Cardio-thoracic, Urology, ENT, other

---

Stryker Endoscopy 988 3 CHIP Digital Camera

• Imaging System: 1/3" Interline Transfer, EX view HAD CCD 752 (H) × 582 (V) pixels

• Video Outputs:

• Composite: PAL standard, 1.0V P-P into 75 Ohms

• Connector: BNC Coaxial

• Component: S-VHS, Y-1.0V P-P C-0.29

• Connector: 4-Pin VHS

• Component: RGB (or Y, B-Y, R-Y), 1.0V P-P into 75 Ohms

• Connector: 8-Pin DIN

• Digital Visual Interface (DVI): Digital 1024 × 768 XGA resolution, 29-Pin DVI-I

• Serial Digital Interface: Digital SMPTE-259M BNC coaxial XGA analog

• Dimensions:

• Camera control Unit: 9.8" W × 4.0" H × 15" D (24.8 cm × 10.1 cm × 38.1 cm)

• Camera head to camera control unit: 10' (3 m) sealed cable or 21.3' (6.5 m) sealed cable (sensed by CCU)

• Enhancement: Switchable to 8 steps

• Cable connector: Super lemo gold pin connectors

• Resolution: 950 lines

• Signal to Noise Ratio: 72 dB

• Mounting: C-mount/standard

• Minimum Illumination: Not specified

• Auto Shutter Range: 1/50 - 1/50000

• Gain: 4 levels / 0 - 15 dB

• Power Consumption: Approx. 30 W

• Input Voltage Range: 230 ± 10 VAC 50/60 Hz

• Total Shipping Weight: 13 lbs. (5.9 kg)

---

Stryker Endoscopy X6000 Light Source

• Electrical:

• Primary 100 - 240VAC 50/60 Hz 450W

• Fuse: 8.0A 250V

• Fiber Optic Cable Range: 2 mm to 11.5 mm outside diameter continuously adjustable

• Dimensions:

• 38.1 cm (w) × 41.4 cm (d) × 14 cm (h)

• 15.0 in. (w) × 16.3 in. (d) × 5.5 in. (h)

• Weight: 10.9 kg (24 lbs.)

• Lamp: 300 Watt Xenon Cermax

• Lamp Life: Approximately 500 hours

• Thermal Limit: 85°C (185°F)

• Operating Conditions: 5 to 40°C, 10% to 85% Relative Humidity

• Transportation & Storage: 5 to 40°C, 10% to 85% Relative Humidity, 700hPa to 1060hPa

• Classifications & Approvals:

• Complies with IEC 601-1 with Amendments 1 & 2, CSA Std., C22.2 No. 601.1-M90, and UL2601-1

• Complies with EN 60601-1-2: 1993 (EMC Compliance of Medical Devices)

• Class 1 Equipment

• Type CF applied parts

- Patent Protection: U.S. #5,850,496 and 6,110,

• Other patents pending

---

Stryker 30L Insufflator

• Power Supply: 100 V~ / 110 V~; Mains fuse T 3.15 A; USA 3.5 A (slow blow), UL listed; Mains fuse T 1.6 A; Connection for potential equalization

• Frequency: 50 - 60 Hz

• Power Consumption: 85 W

• Max. Current: 100 V: 710 mA; 110 V: 620 mA; 240 V: 310 mA

• Protection Class: Class I, Type BF

• Dimensions: 360 mm (w) × 150 mm (h) × 300 mm (d)

• Weight: Approx. 12.5 kg (27.6 lbs) (without glass cylinder)

• Insufflation Medium: Medical CO2

• Maximum Output Pressure: 55 mm Hg

• Maximum Gas Supply Pressure: 80 bar (1160 PSI)

• Minimum Gas Supply Pressure:

• 5 bar (73 PSI) (CO2 gas cylinder)

• 5 bar (73 PSI) (CO2 house-controlled gas supply by using the central gas supply connection)

• Measurement Range of Gas Supply: 0 - 50 bar (0-725 PSI)

• Gas Flow Range: 0 - 30 l/min

• Pressure Range: 1 - 30 mm Hg

• Accuracy of Pressure Measurement: ±5%

• Accuracy of Gas Flow Measurement: ±5%

• Accuracy of Volume Measurement: ±10%

• Accuracy of Gas Supply Measurement: ±10%

• Connections (optional):

• RS232-serial port

• S-VHS IN/OUT

• Video IN/OUT

• Operation Directions: 10 - 40°C (50 - 104°F) / 30 - 75% relative humidity

• Storage/Transportation Directions:

• -40 to +70°C (-40 to +159°F)

• 10 - 100% relative humidity

• Manufactured and Tested According to: EN 60601-1 / IEC 601-1

• EMC: EN 60601-1-2 / IEC 601-1-2
