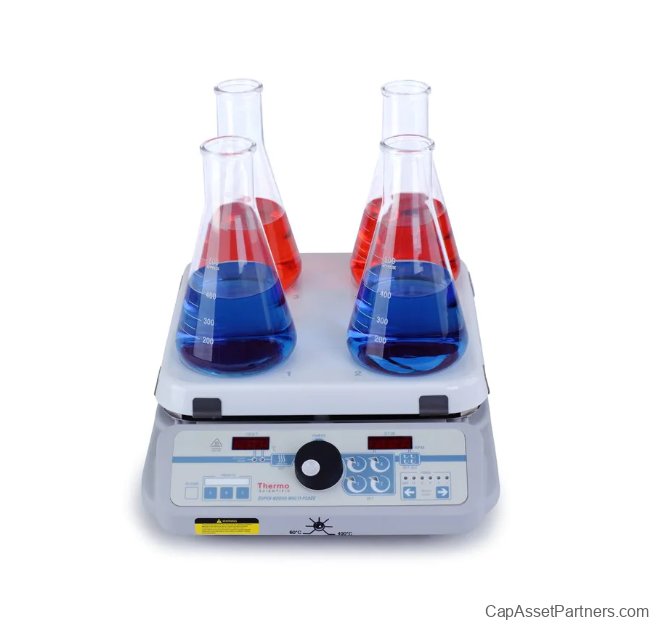

Super-Nuova Hot Plate Stirrers

Experience unparalleled efficiency in laboratory procedures with the Super-Nuova Hot Plate Stirrers, designed to support high-volume processing while ensuring safety and precision. Featuring a multi-position digital stirring capability, these hot plates are perfect for labs with a diverse range of applications, especially in life sciences and biotechnology.

Key Features:

• Advanced microprocessor control for precise and stable temperature and stirring speed settings.
• Electronic feedback systems monitor top plate and liquid temperatures (external PTFE-coated probe included) for optimal performance.
• User-friendly single control knob allows control over heat and stirring speed, with a lock feature to prevent accidental adjustments.
• Clear digital display for easy monitoring of temperature or stirring RPM.
• Robust motor and magnetic system minimize the risk of magnetic decoupling even during intense stir conditions.
• StirTrac breaking feature halts the stir bar immediately for safe removal and prevents runaway conditions.
• Temperature can be easily adjusted in 1°C increments for precise control.
• Four customizable memory keys for user-defined temperature and stirring speed settings.
• Calibration mode available for external probe settings to ensure measurements are aligned with external standards.
• Sleek and durable ceramic tops that are easy to clean, chemical-resistant, and promote efficient boiling times.
• Designed to operate in environments up to 27°C with 80% relative humidity (non-condensing).
• RS-232 port enables data output for various operational parameters including time count, temperature setpoint, and stirring setpoint.
• Supported certifications include cCSAus for all models and CE for specific models.

Safety Features:

• Red "HOT TOP" warning light activates when the heating surface exceeds 50°C, flashing until the surface temperature returns below this threshold, enhancing user safety.
• Adjustable overprotection circuit prevents runaway conditions by limiting the top plate temperature.
• Sturdy low-profile cast aluminum body ensures stability and durability, suitable for various lab environments.
• Design safeguards internal components against accidental spills for increased longevity.
• Walk-away timer automatically shuts off heating and stirring after a user-defined time interval for added peace of mind.

Specifications:

SKU	Includes	Temperature Range	Warranty
SP135935Q	Detachable line cord and plug, 6 in. Type K probe, stir bar	1°C to 370°C	2 Years
SP135930-33Q	Detachable line cord and plug, 6 in. Type K probe, stir bar	1°C to 370°C	2 Years

Additional Electrical Information:

SKU	Electrical Information
SP135935Q	120V, 50/60Hz, 11.8A, 1400W
SP135930-33Q	220/240V, 50/60Hz, 6.1A, 1450W
