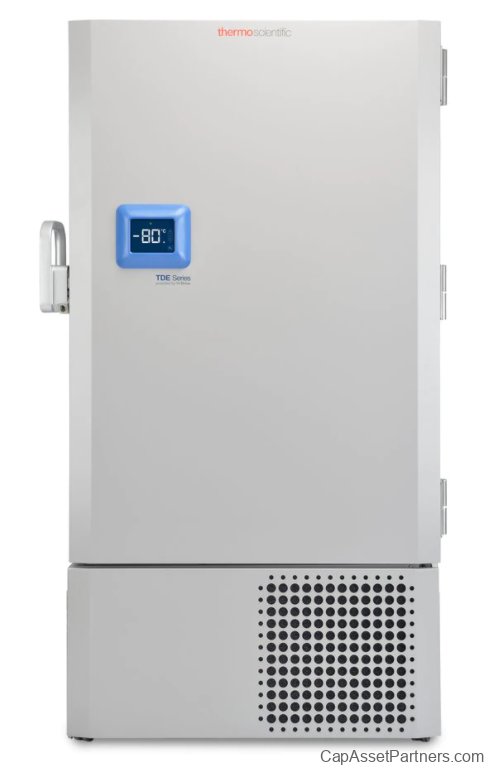

TDE Series Ultra-Low Freezers With Racks & Boxes
The TDE Series Ultra-Low Freezers are engineered for superior performance within laboratories, clinics, and medical facilities. Featuring an innovative H-drive hydrocarbon refrigeration system, these freezers provide sustainable cooling solutions while ensuring consistent sample temperature protection across the entire cabinet. The TDE Series is part of the Standard Performance (STP) family, designed for reliability and efficiency.
Key Features:
- Four inner doors strategically designed to minimize ambient temperature during sample retrieval.
- Enhanced security with customizable alarm settings, setpoint security passcode, and padlock-compatible doors for added protection.
- Intuitive single-hand door operation for hassle-free access.
- Eye-level display for clear visibility of temperature settings and alerts.
- Innovative shelf-level placement eliminates the need for floor-level loading of racks, optimizing usability.
- Ready to use right out of the box—plug in and go, with no complex setup required.
- Quiet operation at a noise level of just 50 dBA, ensuring a conducive work environment.
Included Accessories:

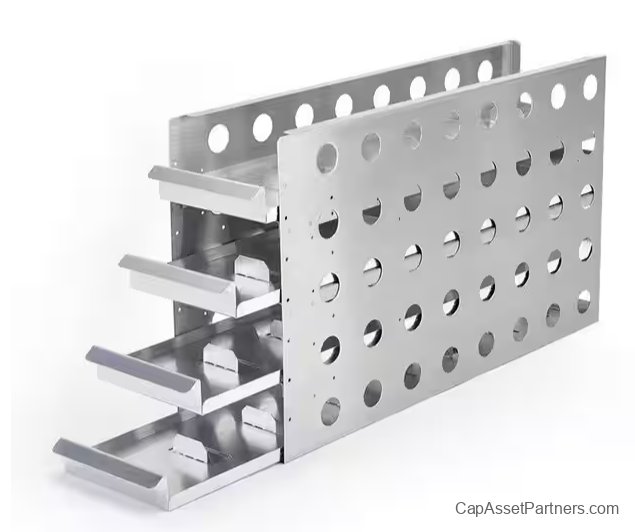

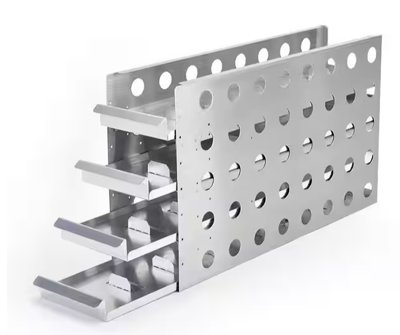

- All units come equipped with racks and boxes.
- CryoBoxes™ quantity varies by unit model:
- TDE30086FARK, TDE30086FDRK, TDE30086LARK, & TDE30086LDRK: Includes 150 CryoBoxes™ (holds up to 300).
- TDE40086FARK, TDE40086FDRK, TDE40086LARK, & TDE40086LDRK: Includes 200 CryoBoxes™ (holds up to 400).
- TDE50086FARK, TDE50086FDRK, TDE50086LARK, & TDE50086LDRK: Includes 250 CryoBoxes™ (holds up to 500).
- TDE60086FARK, TDE60086FDRK, TDE60086LARK, & TDE60086LDRK: Includes 300 CryoBoxes™ (holds up to 600).
Certification Standards:
- cULus certified for safety.
- FDA Class II certification for specific models (TDE30086LARK, TDE30086LDRK, TDE40086LARK, TDE40086LDRK, TDE50086LARK, TDE50086LDRK, TDE60086LARK, TDE60086LDRK).
Specifications:
| SKU |
Door Type |
Operating Temperature Range |
Hinge |
| TDE30086FARK |
Solid Swing Door, 4 Inner Doors |
-50°C to -86°C |
Right |
| TDE40086FARK |
Solid Swing Door, 4 Inner Doors |
-50°C to -86°C |
Right |
| TDE50086FARK |
Solid Swing Door, 4 Inner Doors |
-50°C to -86°C |
Right |
| TDE60086FARK |
Solid Swing Door, 4 Inner Doors |
-50°C to -86°C |
Right |
Electrical Information:
| SKU |
Voltage |
Dimensions |
Refrigerant |
Plug Type |
| TDE30086FARK |
115V, 60Hz |
38.5 in x 23.0 in x 78.0 in |
R290 (1st Stage), R170 + R290 Mix (2nd Stage) |
NEMA 5-20 |
| TDE40086FARK |
115V, 60Hz |
38.5 in x 28.3 in x 78.0 in |
R290 (1st Stage), R170 + R290 Mix (2nd Stage) |
NEMA 5-20 |
| TDE50086FARK |
115V, 60Hz |
38.5 in x 34.0 in x 78.0 in |
R290 (1st Stage), R170 + R290 Mix (2nd Stage) |
NEMA 5-20 |
| TDE60086FARK |
115V, 60Hz |
38.5 in x 39.6 in x 78.0 in |
R290 (1st Stage), R170 + R290 Mix (2nd Stage) |
NEMA 5-20 |
