ThermalSeal® RT2™

Do you have a ThermalSeal® RT2™ you want to sell?

We buy used equipment! Learn about selling

Manufactured by: Excel Scientific

Category: Plasticware

Excel Scientific ThermalSeal® RT2™
Excel Scientific ThermalSeal® RT2™
Excel Scientific None - Plasticware
Excel Scientific None - Plasticware

ThermalSeal® RT2™

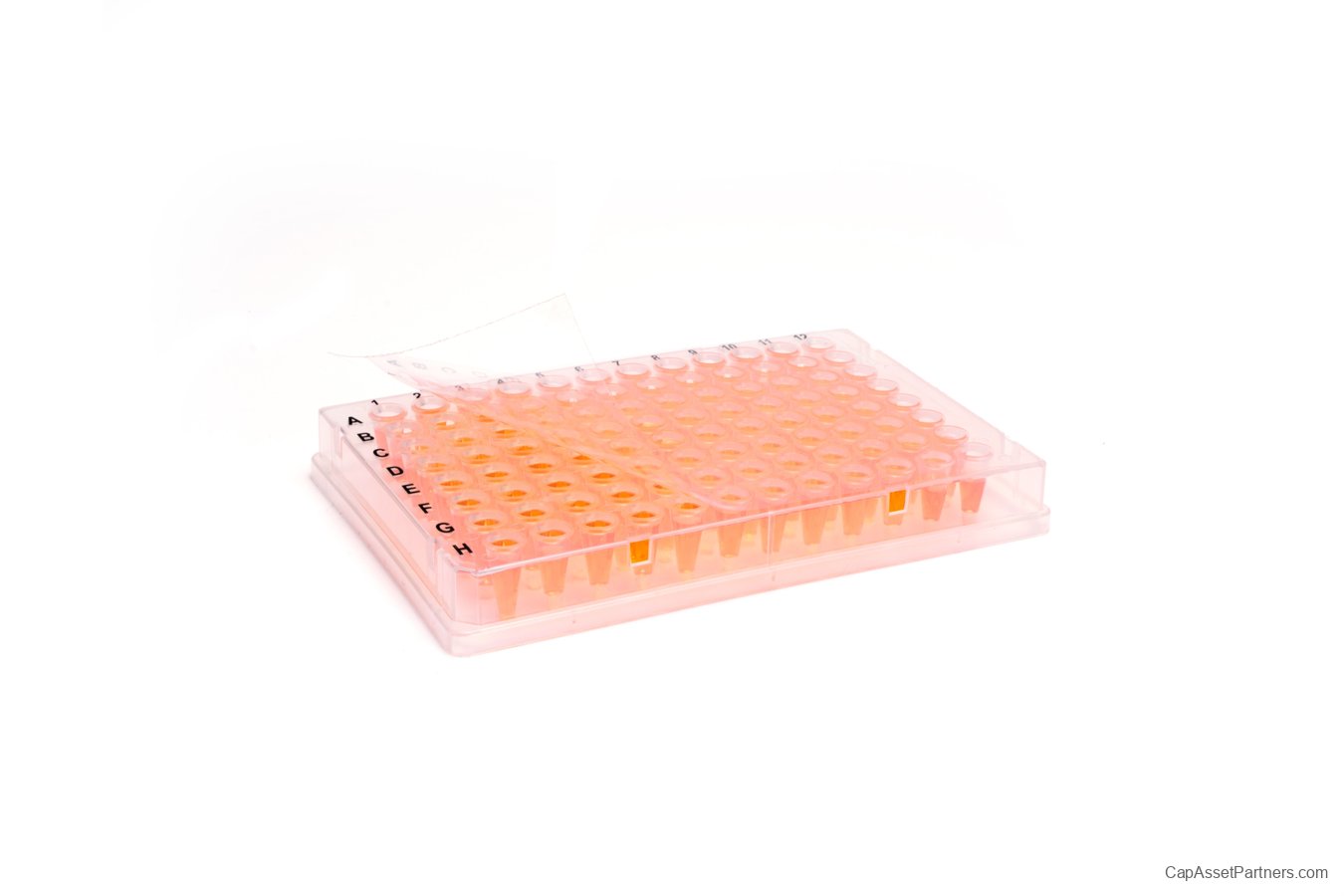

Designed specifically for laboratory environments, the ThermalSeal RT2 sealing films are the ultimate solution for enhancing the performance of your standard 96-well plates. Featuring an optically transparent polyester film paired with a robust, ultra-smooth adhesive, these sealing films ensure that your samples are protected while allowing for easy access when needed.

Key Features

    • Superior Bonding: The strong adhesive creates an exceptional bond, preventing evaporation and minimizing cross-contamination.
    • Certified Clean: Both DNase- and RNase-free, making them suitable for sensitive applications.
    • Exceptional Clarity: Ultra-high optical clarity allows for precise observation during experiments.
    • Conformable Design: The soft adhesive is highly conformable, effectively sealing around raised wells.
    • Compatibility: Perfectly suited for flat-top and hard-shell dual component PCR plates (e.g., polycarbonate/polypropylene).
    • Specialized Options: Available in a smaller cut for raised-rim and non-skirted PCR plates with model number ThermalSeal RT2RR.
    • Thermal Cycling Note: Not recommended for removal after thermal cycling; designed for single-use during experiments.
    • All sales are final. No refunds are permitted except for manufacturer defects.

Helpful Tips for Usage

    • Selecting the appropriate film size is crucial to minimize evaporation.
    • Avoid overhanging film that rides up the wall of raised-rim plates for optimal performance.
    • Complete coverage of skirted flat-top plates is advised to enhance evaporation resistance in outer wells.
    • It’s highly recommended to remove any end-tab before thermal cycling.

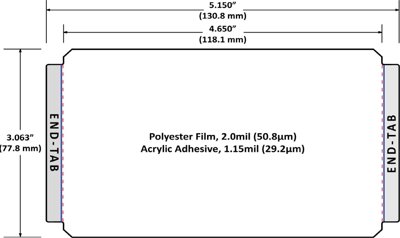

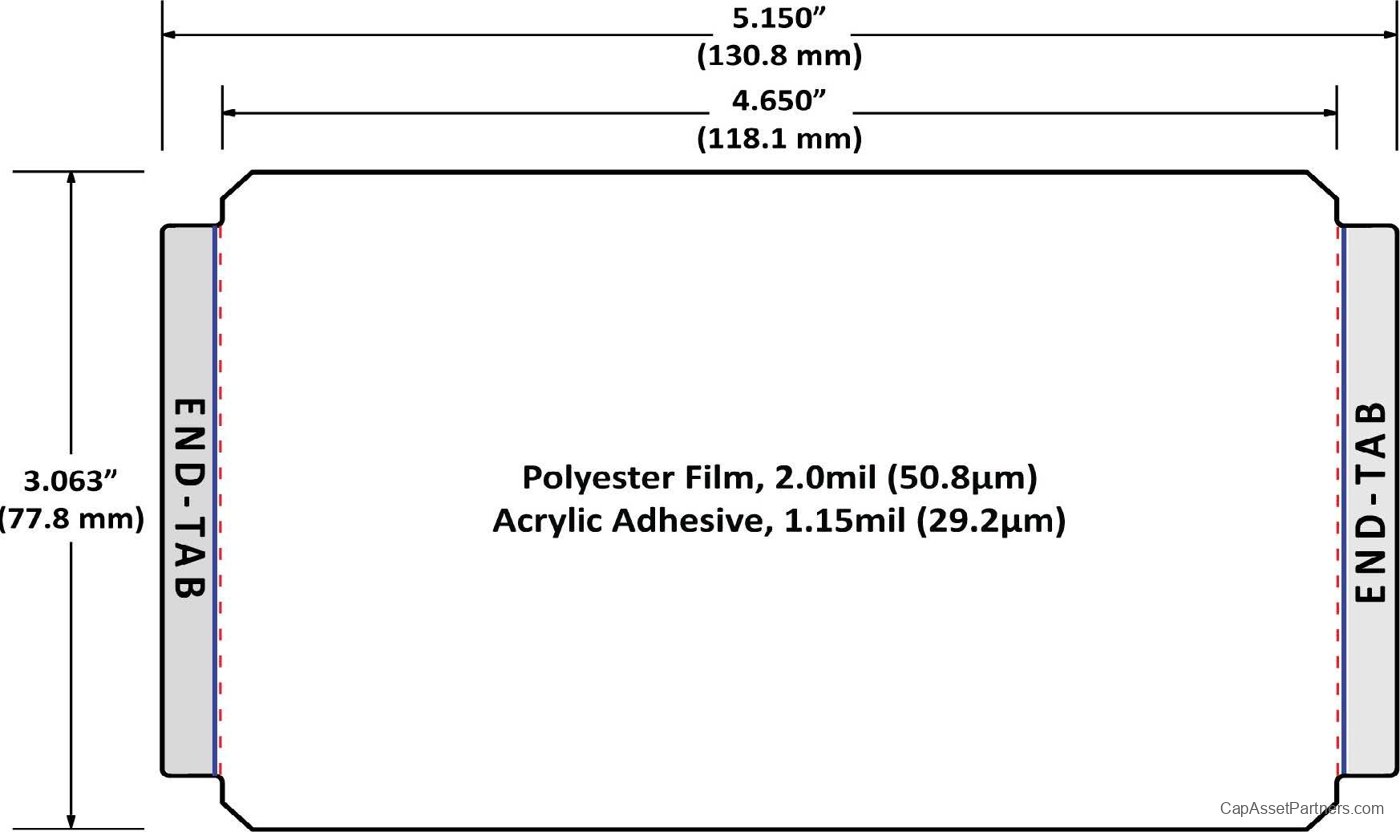

Specifications

SKU Temperature Range Dimensions Liner Thickness
TS-RT2RR-100 -40°C to +120°C 5.625" ± 0.015" x 3.125" ± 0.015" 2.0 mil ± 10%
TS-RT2-100 -40°C to +120°C 5.625" ± 0.015" x 3.125" ± 0.015" 2.0 mil ± 10%

Additional Information

SKU Tab Dimensions Corner Radius Film Material Film Thickness Adhesive Thickness Liner Material
TS-RT2RR-100 0.375" ± 0.015" 3/32" Polyester, Clear 2.0 mil ± 10% 1.0 - 1.3 mil Polyester, Clear
TS-RT2-100 0.375" ± 0.015" 3/32" Polyester, Clear 2.0 mil ± 10% 1.0 - 1.3 mil Polyester, Clear
