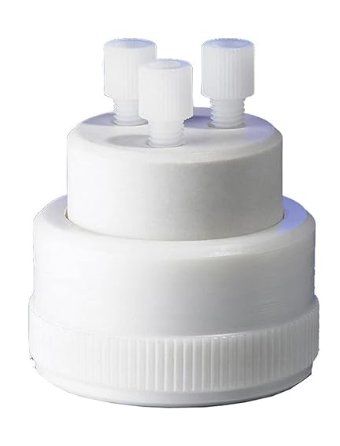

Three-Hole Mobile Phase Delivery Screw Cap, GL45

Three-Hole Mobile Phase Delivery Screw Cap, GL45

Discover the innovative Three-Hole Mobile Phase Delivery Screw Cap designed for high-performance and efficient fluid delivery in chromatography applications. This product is engineered to enhance your laboratory experience, ensuring precision and reliability.

Red Polybutylene Terephthalate (PBT) High Temperature Cap Features:

• Utilizes a 3-hole design with 1/8" OD tubing for versatile connectivity.
• Effortlessly adjust tubing depth with a simple quarter turn of the lock nut from outside the reservoir—no pre-cutting required.
• Allows for custom positioning of PTFE tubing at the desired depth, enhancing experimental flexibility.
• Compatible with GL45 thread for a secure fit, ensuring leak-free operation.
• Durable construction allows for dry heat sterilization at temperatures up to 180℃.
• Equipped with a Polytetrafluorethylene (PTFE) liner that provides exceptional sealing capabilities.

PYREX® Polytetrafluoroethylene Cap Features:

• Specifically designed for use with single cavity HPLC reservoirs, ensuring optimal performance and compatibility.
• Cap top features three holes with 1/4-inch - 28 threads, allowing integration with 1/8-inch O.D. polytetrafluoroethylene tubing.
• Constructed from glass-filled PTFE for enhanced durability and chemical resistance.
• Includes a polyethylene terephthalate (PET) screw cap, featuring a GL45 thread for solid sealing.
• Comes with three 1/4-inch-28 ethylene tetrafluoroethylene (ETFE) plugs, paired with a fluorocarbon O-ring to secure the connection to the reservoir.
• Integrated pressure relief valve effectively manages reservoir pressure, releasing at 10 psi to ensure safe operation.

Specifications:
