Tidalwave 715Sp Handheld Monitor with SpO2

• Your Ultimate Respiratory Monitoring Solution

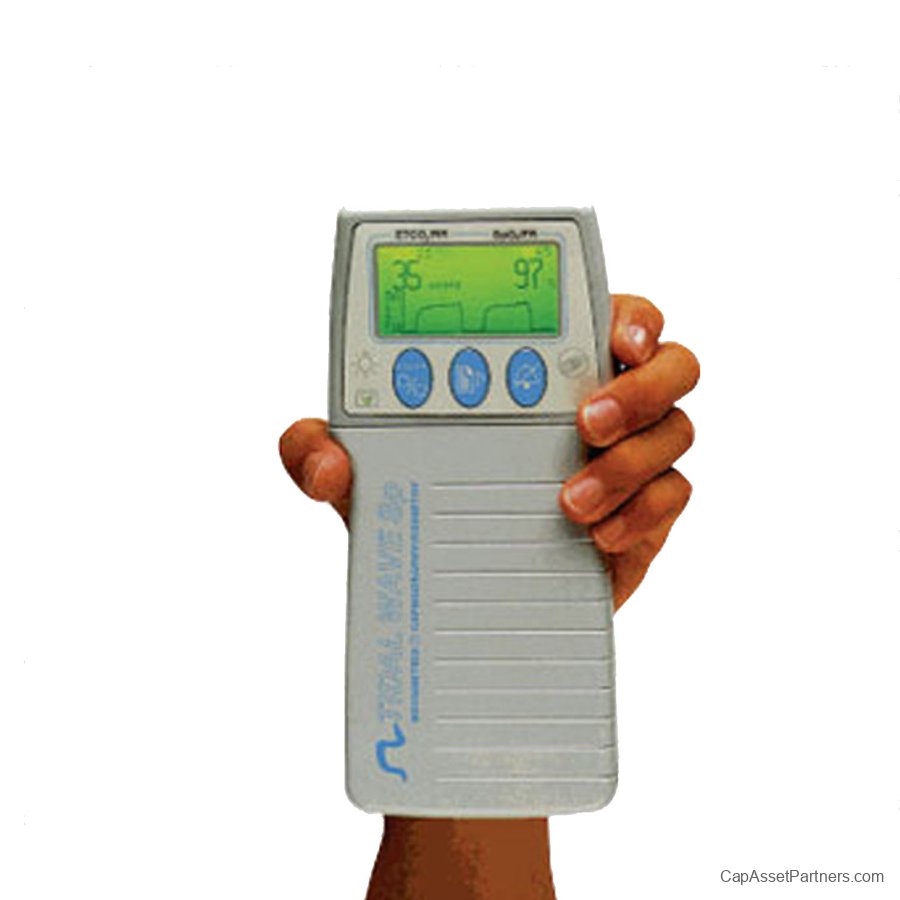

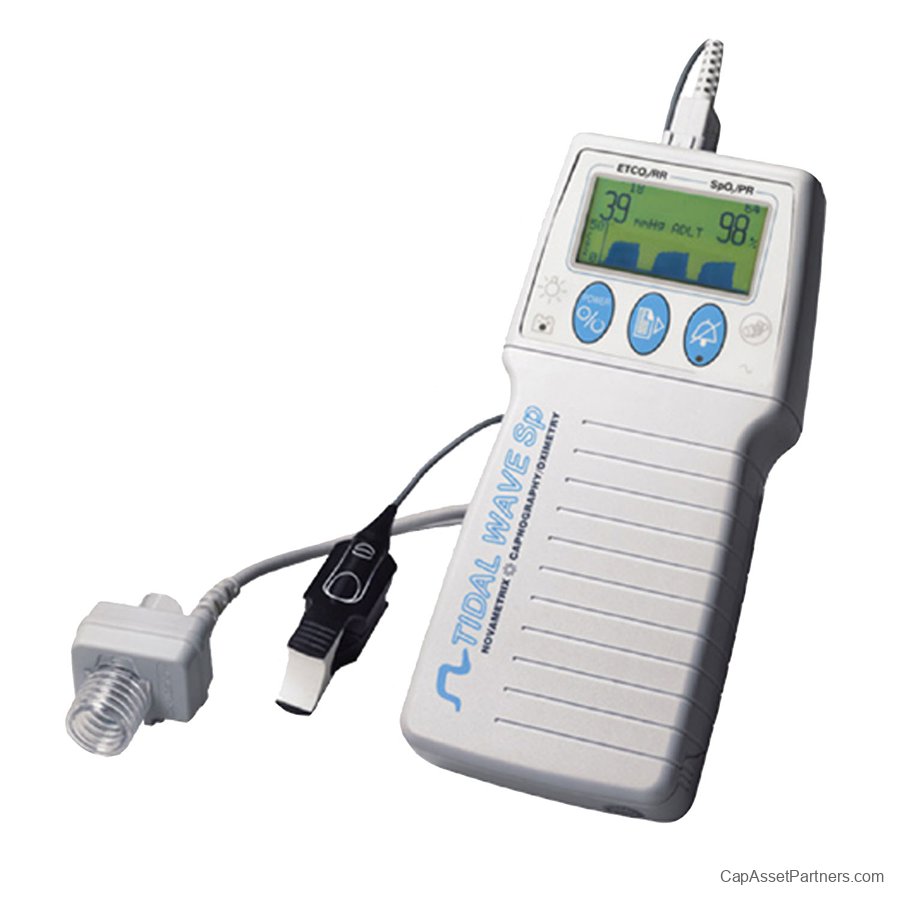

The Tidalwave 715Sp is a state-of-the-art handheld monitor that combines the functionality of a pulse oximeter and a CO2 monitor, ensuring optimal airway management and patient care. Designed with the latest technology, this portable device offers immediate feedback on a patient's ventilatory status, making it an essential tool for medical professionals in various settings.
Key Features:

• Integrated Pulse Oximeter: Monitor blood oxygen levels effortlessly with the built-in pulse oximetry feature.

• Dual Capnography: This versatile device functions as both a mainstream and sidestream capnograph, providing accurate CO2 measurements for enhanced monitoring.

• User-Friendly Displays: The Tidalwave 715Sp offers a 30-minute on-screen graphic trend for real-time analysis of respiratory patterns.

• Alert System: Stay informed with visual and audible alerts for "no respiration" scenarios, ensuring prompt action can be taken if necessary.

• Convenient Battery Options: Equipped with user-replaceable disposable and rechargeable battery packs, the monitor guarantees continuous monitoring without downtime. The standard AA lithium batteries provide 5.5 hours of operating life.

Explore this leading handheld monitor today and enhance your patient care capabilities with the Tidalwave 715Sp – a reliable companion for respiratory health monitoring.

Tidalwave 715Sp Handheld Monitor with SP O2 Specifications

Capnograph

• Principle of Operation: Solid state mainstream sensor. Single beam, non-dispersive infrared (NDIR) absorption, ratiometric measurement.

• Initialization Time: Capnogram within 15 seconds, full specifications within 60 seconds.

• Calibration: No calibration required.

• Capnostat® Mainstream CO2 Sensor:

• Size: 1.30 × 1.67 × 0.85 inches (3.30 × 4.24 × 2.16 cm)

• Weight: 0.64 oz (18 grams), cable excluded

• Shock Resistance: Withstands repeated six-foot drops to a hard surface.

• CO2 (Carbon Dioxide):

• Range: 0 - 150 mmHg

• Accuracy:

• ±2 mmHg (for 0 - 40 mmHg)

• ±5% of reading (for 41 - 70 mmHg)

• ±8% of reading (for 71 - 150 mmHg)

• Resolution: 1 mmHg

• Response Time: 60 ms

• Units: mmHg, kPa, or %

• Compensations: N2O & O2 (selectable), Pb (automatic)

• Capnogram: Selectable sweep speed.

• Respiratory Rate:

• Accuracy: ±1 br/min

• Range: 0 - 150 br/min

• Resolution: 1 br/min

• Sampling Flow Rate (Model 715 only): 180 ml/min (for non-intubated patients)

• Response Time: Less than 200 ms at 180 ml/min flow.

Pulse Oximeter

• Principle of Operation: Red/Infrared absorption.

• SpO2 (Oxygen Saturation):

• Range: 0 - 100%

• Accuracy: ±2% SpO2 (for 80 - 100% SpO2), unspecified for 0 - 79% SpO2

• Resolution: 1%

• Averaging: Menu selectable 2 or 8 seconds.

• Pulse Rate:

• Range: 30 - 250 bpm

• Accuracy: ±1% of full scale

• Resolution: 1 bpm

• Averaging: 8 seconds.

• Sensors: Reusable Y-Sensor (can be sterilized and used with all patient populations); reusable adult finger sensor.

• Plethysmogram: Pulsatile waveform.

General

• Alerts:

• Limits: Adjustable limits for ETCO2, SpO2, Respiratory Rate, and Pulse Rate. No Respiration Detected adjustable timeout.

• Audio: Adjustable volume, two-minute silence or off (LED indicators).

• Visual: On-screen and LED.

• Display:

• Type: Dot matrix, backlit (LCD).

• Size: 2.2 × 1.1 inches.

• Trending Capabilities:

• Memory: 24 hr., battery backed.

• Format: 30 minute on-screen or printed in trend or tabular mode. Download data to PC for use with NovaCARD software.

• Communication Output: RS232 to Seiko DPU-414 printer, NovaCARD™ software or computer.

• Physical:

• Size (height, width, depth): 8 × 3.75 × 1.875 inches (20 × 9.5 × 4.8 cm).

• Weight: 793 grams (28 oz).

• Electrical:

• External Supply (optional): Input: 120 VAC 60 Hz, or 220 VAC 50 Hz.

• Battery: Nickel-Metal-Hydride (NiMH): 4.5 hour life; Standard AA lithium: 5.5 hour life.

• Environmental:

• Operating Temperature: 0 to +40°C (32 to 104°F).

• Operating Humidity: 0 to 90% RH non-condensing.
