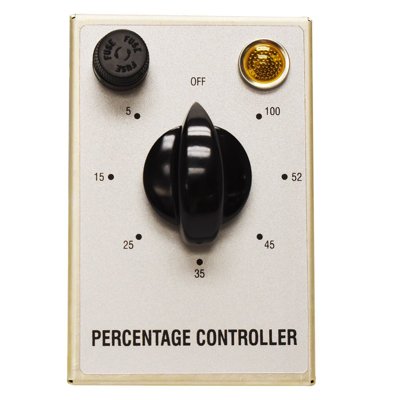

TP0 Portable Time-Percentage Dial Controllers
Introducing the TP0 Portable Time-Percentage Dial Controller, a versatile and efficient solution designed for various indoor heating applications. This state-of-the-art controller allows users to regulate the time proportion the heater stays "on" or "off”, enabling precise control over heating cycles tailored to your specific needs.
Key Features:
- Flexible Power Options: Compatible with 120VAC (NEMA 5-15R) and 240VAC (NEMA 6-15R) voltage inputs.
- Robust Performance: Accommodates a maximum amp load of 15 amps, ensuring reliable operation in demanding environments.
- Time Percentage Control: Adjustable settings from 5% to 100% for optimal heating management according to your application requirements.
- Convenient Cord Length: 6 ft (1.8 m) power cord for easy connectivity and placement within your setup.
- Output Receptacles: Designed to connect seamlessly with NEMA 5-15R for 120VAC and NEMA 6-15R for 240VAC applications.
Environmental Exposures:
- Operating Range: -40°F to 160°F (-40°C to 71°C), ensuring functionality in harsh environments.
Specifications:
| SKU |
Controller |
Temperature Range |
Operating Temperature Range |
Plug Type |
Amperage |
Lead Length |
| TP0941-000 |
|
-40°C to 71°C (-40°F to 160°F) |
-40°F to 160°F |
NEMA 5-15R |
15 amps |
6 ft (1.8 m) |
| TP0942-000 |
|
-40°C to 71°C (-40°F to 160°F) |
-40°F to 160°F |
NEMA 6-15R |
15 amps |
6 ft (1.8 m) |
