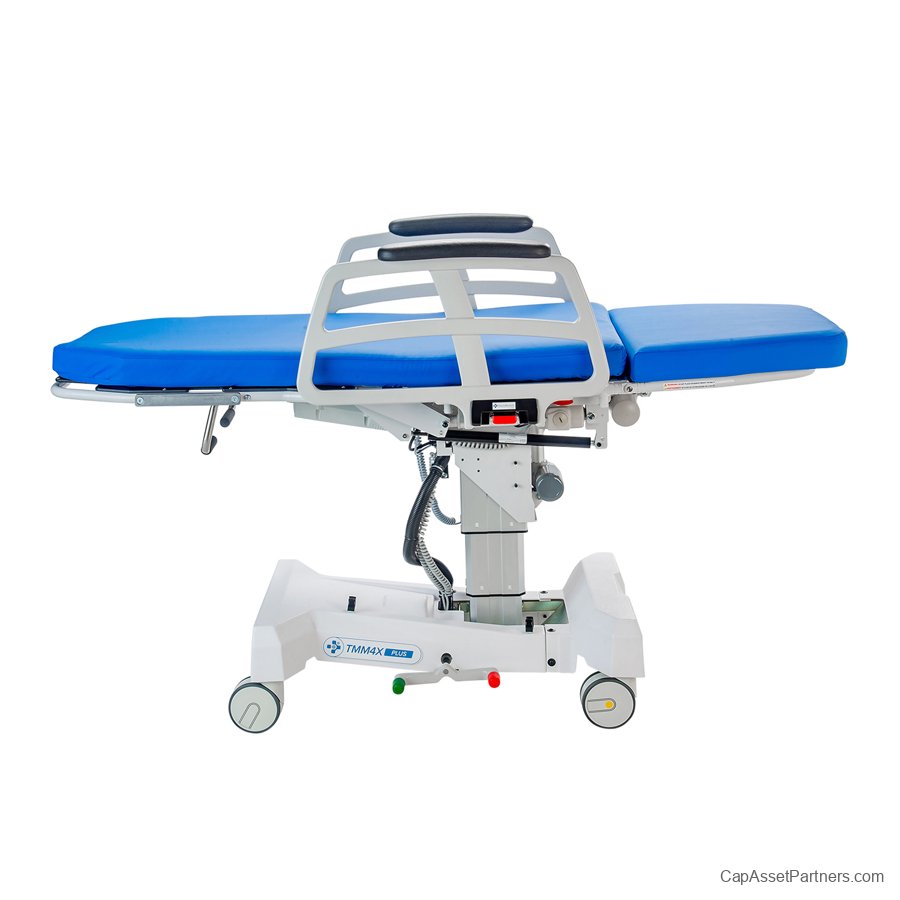

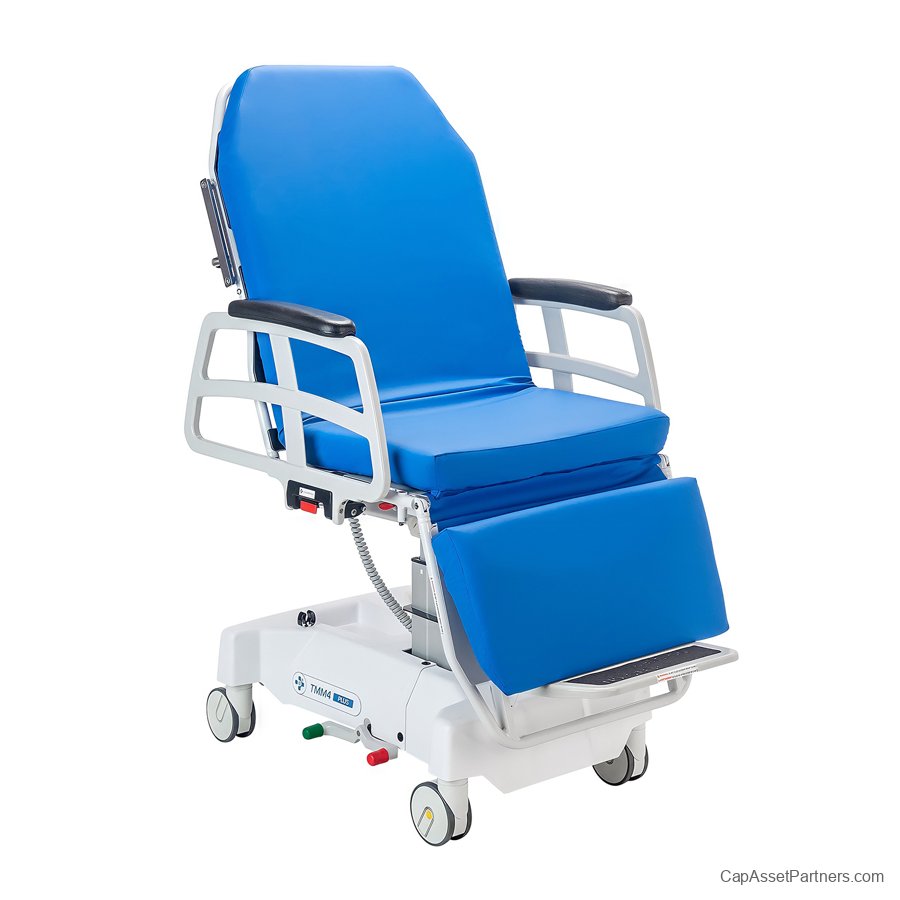

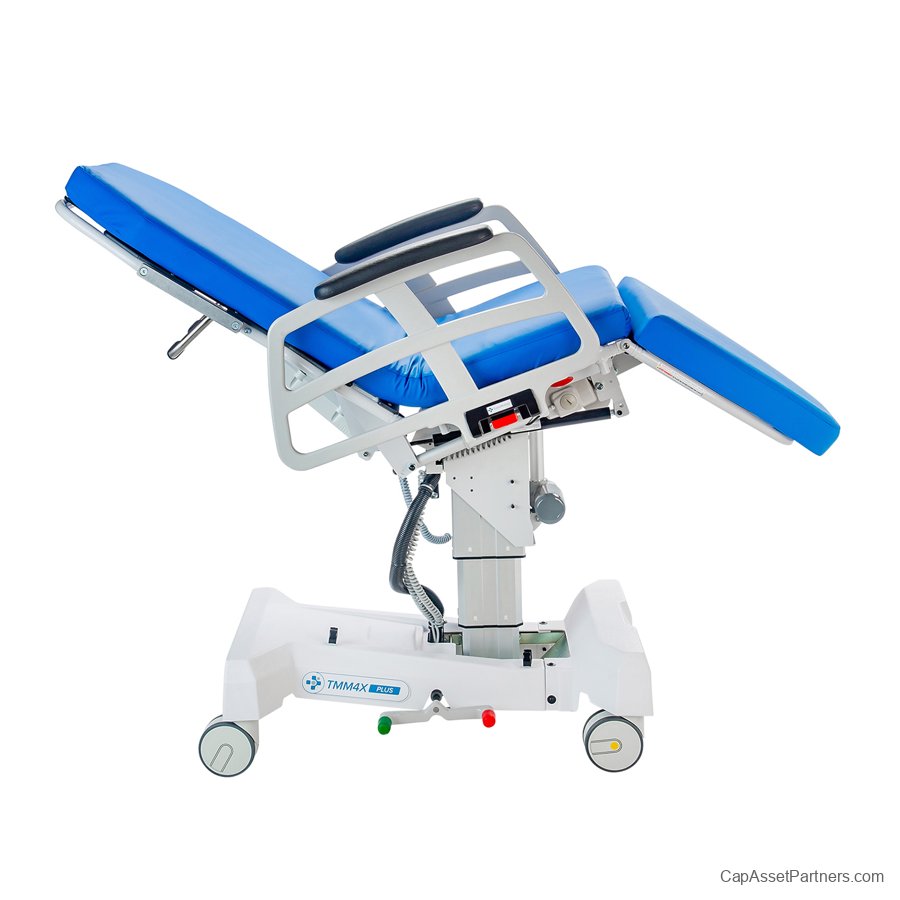

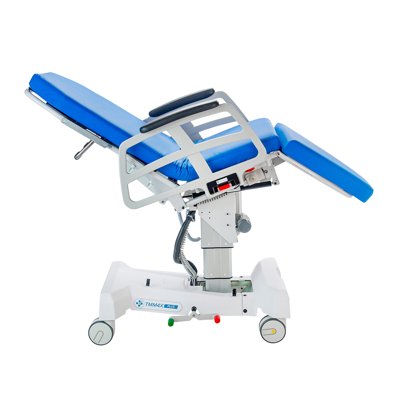

Transmotion TMM4 PLUS Multi-Purpose Stretcher-Chair

Introducing the Transmotion TMM4 PLUS Multi-Purpose Stretcher-Chair, an innovative solution designed to enhance patient care while prioritizing safety and efficiency. TransMotion Medical is dedicated to minimizing the risk of staff injuries and patient falls, all while improving workflow in medical settings.
This versatile stretcher-chair features handheld, pendant-controlled powered adjustments for the legs, back, and height, eliminating the need for hydraulic or manual positioning. This advanced design significantly reduces the risk associated with patient movements.
With the unique capability to seamlessly convert from a chair to a stretcher with just a push of a button, the TMM4 PLUS enables patients to move effortlessly from admission to procedure and discharge—all on one surface. This reduces the number of transfers needed, thereby minimizing risks for both patients and medical staff while optimizing the use of equipment throughout the care cycle.
Key features of the Transmotion TMM4 PLUS include:

• Exceptional powered patient positioning for safe handling

• User-friendly push-button pendant control for smooth operation

• Large radiolucent back section that facilitates imaging procedures

• Comfort-oriented memory foam cushions that enhance patient relaxation

• Swing-and-tuck side rails that promote safer and easier patient ingress and egress

• Manual quick-release back for added flexibility

• Space-saving footprint for efficient use of medical facility space

• Quick-change battery and wall-mount charger for uninterrupted operation

Choose the Transmotion TMM4 PLUS Multi-Purpose Stretcher-Chair for an unparalleled combination of safety, efficiency, and patient comfort in your healthcare practice.

Transmotion TMM4 PLUS Multi-Purpose Stretcher-Chair Specifications:

• Height Range: 25" - 33" (63.5 cm - 83.8 cm)

• Overall Width: 30" (76.2 cm)

• Surface Length: 77" (196 cm)

• Weight Capacity: 500 lbs (227 kg)

• Chair Weight: 205 lbs (93 kg)

• Maximum Patient Weight: 500 lbs (227 kg)

• Seat Height - Low: 24.3" (61.7 cm)

• Seat Height - High: 32.2" (81.8 cm)

• Back Height: 33.75" (85.7 cm)

• Side Rail Height - Up: 13.5" (34.3 cm)

• Overall Chair Height, Low: 54" (137 cm)

• Overall Chair Height, High: 62" (157 cm)

• Seat Width: 24" (61 cm)

• Overall Width (rails up): 30" (76 cm)

• Overall Width (rails down): 24" (61 cm)

• Patient Surface Length (without “F” option): 72" (183 cm)

• Side Rail Length: 27.6" (70.1 cm)

• Backrest Articulation Range: 0° - 86°

• Trendelenburg: 20° / 5° Reverse

• Radiolucent Window (width x height): 20" x 25.5" (51 cm x 65 cm)

• Wheelbase (length x width): 33" x 20" (84 cm x 51 cm)
