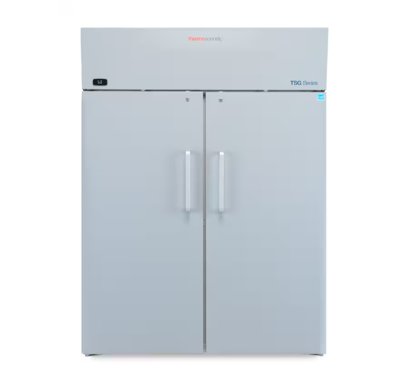

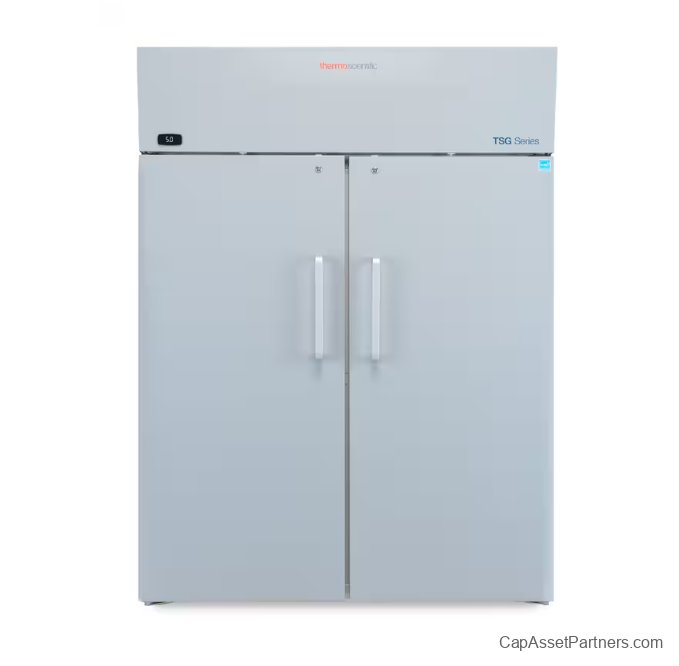

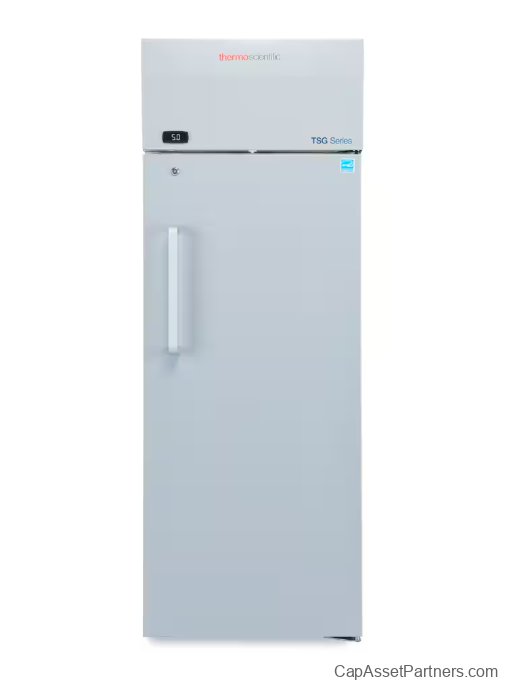

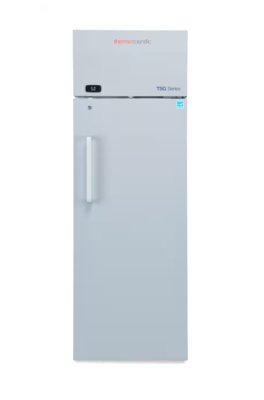

TSG Series General Purpose Solid Door Refrigerators
The TSG Series Solid Door Laboratory Refrigerators are designed to deliver quiet and efficient operation, making them ideal for clinical and research environments. Engineered for reliability and sustainability, these refrigerators utilize SNAP and F-Gas compliant hydrocarbon refrigerants, ensuring optimal temperature performance while minimizing energy consumption.
Key Features
- Purpose-built for clinical and research laboratory applications.
- Operates at a noise level of less than 53dB for a serene working environment.
- Heat-free defrost mode, eliminating excess heat during defrost cycles.
- Robust insulated solid doors to ensure temperature stability.
- Mobility enhanced with four 2-inch casters, including lockable front casters.
- Self-closing doors feature a 90° stop for added convenience.
- Bright LED interior lighting for clear visibility of stored contents.
- Integrated alarms for Hi/Lo temperature, door ajar, and power failure notifications.
- 12-hour backup battery for the controller ensures peace of mind during power outages.
- Rear access port for easy connections and maintenance.
- Keyed door locks, compatible with popular E-lock adapters for enhanced security.
- Provision for remote alarm contacts to alert users of any irregularities.
Certifications
- cULus certified for safety.
- ENERGY STAR certified for energy efficiency.
Specifications
SKU |
Door Type |
Operating Temperature Range |
Certification |
Warranty |
Hinge |
TSG3005SA |
Solid Swing Door |
2°C to 8°C |
cULus, ENERGYSTAR |
4 Year Parts & Labor + 1 Year Compressor |
Right |
TSG1205SD |
Solid Swing Door |
2°C to 8°C |
cULus, ENERGYSTAR |
4 Year Parts & Labor + 1 Year Compressor |
Right |
TSG3005SD |
Solid Swing Door |
2°C to 8°C |
cULus, ENERGYSTAR |
4 Year Parts & Labor + 1 Year Compressor |
Right |
TSG2305SA |
Solid Swing Door |
2°C to 8°C |
cULus, ENERGYSTAR |
4 Year Parts & Labor + 1 Year Compressor |
Right |
TSG5005SA |
Dual Solid Swing Door |
2°C to 8°C |
cULus, ENERGYSTAR |
4 Year Parts & Labor + 1 Year Compressor |
Left and Right |
TSG2305SD |
Solid Swing Door |
2°C to 8°C |
cULus, ENERGYSTAR |
4 Year Parts & Labor + 1 Year Compressor |
Right |
TSG1205SA |
Solid Swing Door |
2°C to 8°C |
cULus, ENERGYSTAR |
4 Year Parts & Labor + 1 Year Compressor |
Right |
TSG5005SD |
Dual Solid Swing Door |
2°C to 8°C |
cULus, ENERGYSTAR |
4 Year Parts & Labor + 1 Year Compressor |
Left and Right |
Additional Information
SKU |
External Dimensions |
Internal Dimensions |
Electrical Information |
Refrigerant |
Controller |
Plug Type |
TSG3005SA |
37.9 in x 34 in x 78.5 in |
28.5 in x 30 in x 58 in |
115V |
R290 |
Capacitive Touch |
NEMA 5-15 |
TSG1205SD |
31.1 in x 24 in x 73 in |
21.8 in x 20 in x 52.4 in |
208-230V |
R290 |
Capacitive Touch |
NEMA 6-15 |
TSG3005SD |
37.9 in x 34 in x 78.5 in |
28.5 in x 30 in x 58 in |
208-230V |
R290 |
Capacitive Touch |
NEMA 6-15 |
TSG2305SA |
37.9 in x 28 in x 78.5 in |
28.5 in x 24 in x 58 in |
115V |
R290 |
Capacitive Touch |
NEMA 5-15 |
TSG5005SA |
37.9 in x 56.5 in x 78.5 in |
28.5 in x 52.5 in x 58 in |
115V |
R290 |
Capacitive Touch |
NEMA 5-15 |
TSG2305SD |
37.9 in x 28 in x 78.5 in |
28.5 in x 24 in x 58 in |
208-230V |
R290 |
Capacitive Touch |
NEMA 6-15 |
TSG1205SA |
31.1 in x 24 in x 73 in |
21.8 in x 20 in x 52.4 in |
115V |
R290 |
Capacitive Touch |
NEMA 5-15 |
TSG5005SD |
37.9 in x 56.5 in x 78.5 in |
28.5 in x 52.5 in x 58 in |
208-230V |
R290 |
Capacitive Touch |
NEMA 6-15 |
