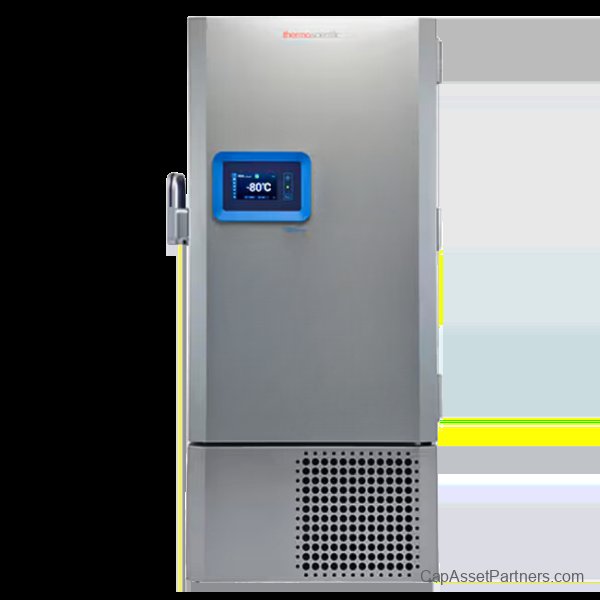

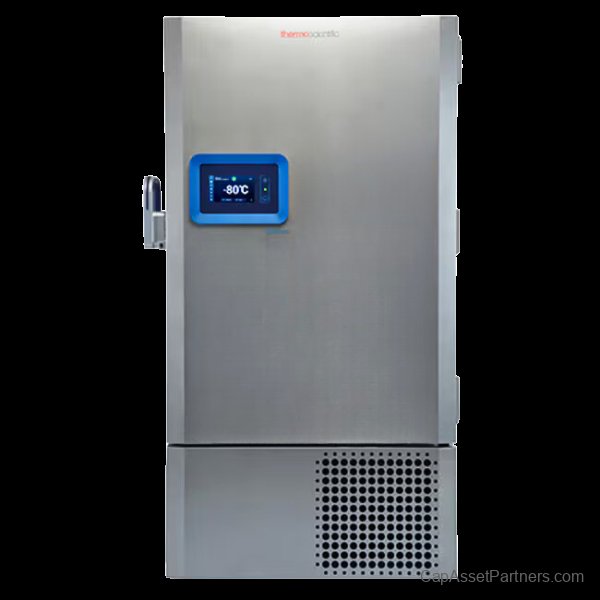

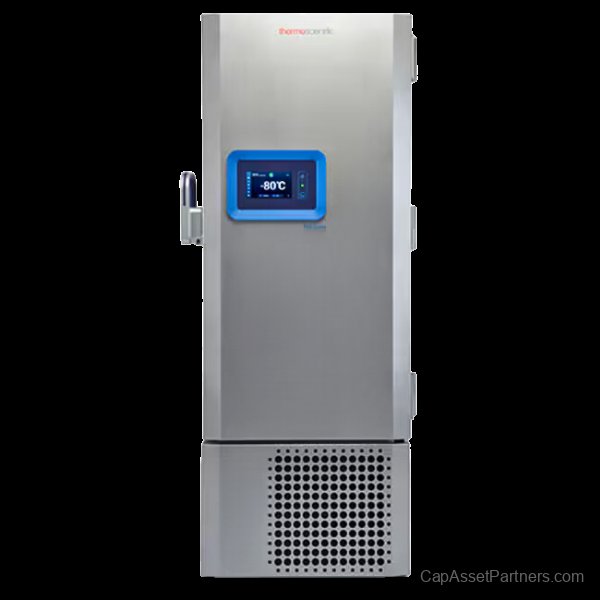

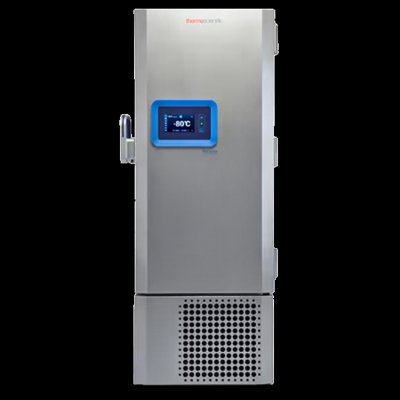

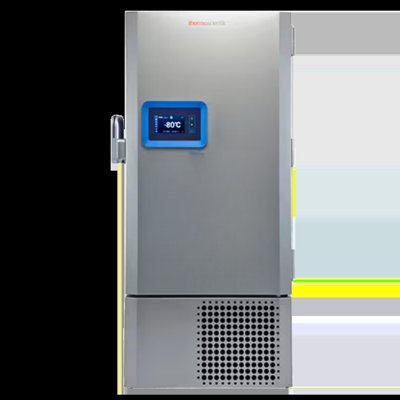

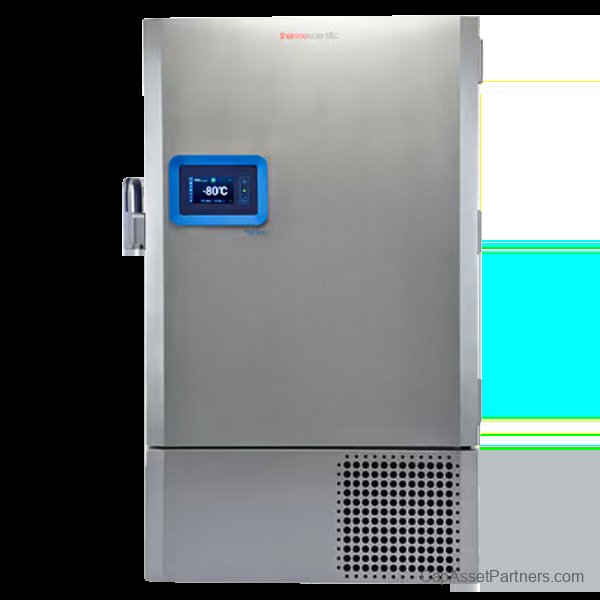

TSX Series Universal FDA Class 2 Ultra-Low Freezers
The TSX Series Universal Ultra-Low Freezers provide unparalleled protection for sensitive samples with minimal temperature fluctuations throughout the entire cabinet space. Designed for laboratory environments, these ultra-low temperature (ULT) freezers operate quietly, maintaining noise levels below 44 dBA, allowing them to be conveniently placed directly in the lab.
Equipped with advanced V-drive technology, these freezers utilize an adaptive controller that intelligently monitors usage patterns, such as door openings and periods of stability. This innovation facilitates significant energy savings without compromising sample safety and integrity.
Key Features:
- Universal V-Drive technology for optimized performance and efficiency
- User-friendly touchscreen LCD interface that operates seamlessly, even with gloves
- Compatibility with Thermo Scientific Instrument Connect for enhanced monitoring
- Fast recovery time to maintain consistent temperature
- Audible and visual alarms for high and low temperatures, along with wireless alert capabilities
- Environmental and connectivity alarms to ensure operational integrity
- Two rear probe access ports for easy monitoring
- Stainless steel shelves designed for durability and cleanliness
- Security features including standard key locks and padlock loops
- Capacity for a variety of CryoBoxes, depending on the specific unit
Certifications:
- ENERGYSTAR Certified for energy-efficient operation
- ACT labeled for sustainable technology
- UL 61010, CE, and ISO 13485 certified for safety and quality
- ISO 5.5 Cleanroom compliant for contamination-free storage
Holding Capacity:
- TSX40086LA: Holds up to 400 CryoBoxes
- TSX50086LA: Holds up to 500 CryoBoxes
- TSX60086LA: Holds up to 600 CryoBoxes
- TSX70086LA: Holds up to 700 CryoBoxes
Specifications:
| SKU |
Shelf Type |
# of Shelves |
Door Type |
Operating Temperature Range |
Certification |
| TSX40086LA |
1 Fixed, 3 Adjustable |
4 Shelves |
Solid Swing Door, 4 Inner Doors |
-40°C to -86°C |
ENERGYSTAR, ACT Labeled |
| TSX50086LA |
1 Fixed, 3 Adjustable |
4 Shelves |
Solid Swing Door, 4 Inner Doors |
-40°C to -86°C |
ENERGYSTAR, ACT Labeled |
| TSX60086LA |
1 Fixed, 3 Adjustable |
4 Shelves |
Solid Swing Door, 4 Inner Doors |
-40°C to -86°C |
ENERGYSTAR, ACT Labeled |
| TSX70086LA |
1 Fixed, 3 Adjustable |
4 Shelves |
Solid Swing Door, 4 Inner Doors |
-40°C to -86°C |
ENERGYSTAR, ACT Labeled |
Additional Information:
| SKU |
Electrical Information |
Dimensions |
Refrigerant |
Plug Type |
| TSX40086LA |
100-230V, 50/60Hz, 1-PH |
37.6 in x 28.3 in x 78.0 in |
R290 (1st Stage), R170 + R290 Mix (2nd Stage) |
NEMA 5-15 |
| TSX50086LA |
100-230V, 50/60Hz, 1-PH |
37.6 in x 34.0 in x 78.0 in |
R290 (1st Stage), R170 + R290 Mix (2nd Stage) |
NEMA 5-15 |
| TSX60086LA |
100-230V, 50/60Hz, 1-PH |
37.6 in x 39.6 in x 78.0 in |
R290 (1st Stage), R170 + R290 Mix (2nd Stage) |
NEMA 5-15 |
| TSX70086LA |
100-230V, 50/60Hz, 1-PH |
37.6 in x 45.2 in x 78.0 in |
R290 (1st Stage), R170 + R290 Mix (2nd Stage) |
NEMA 5-15 |
