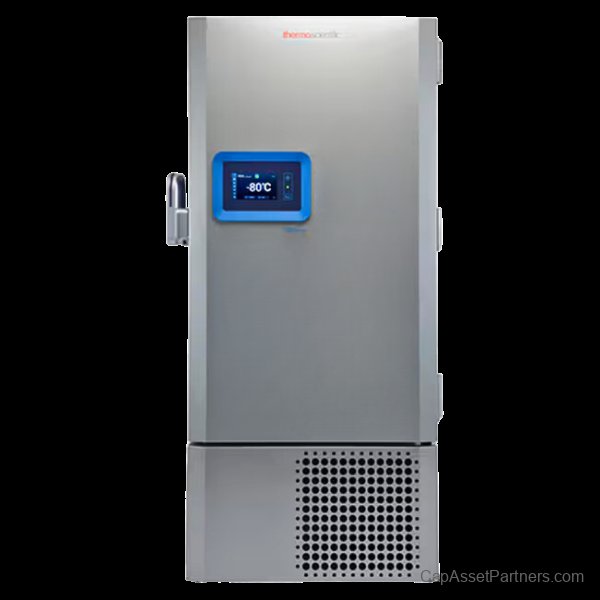

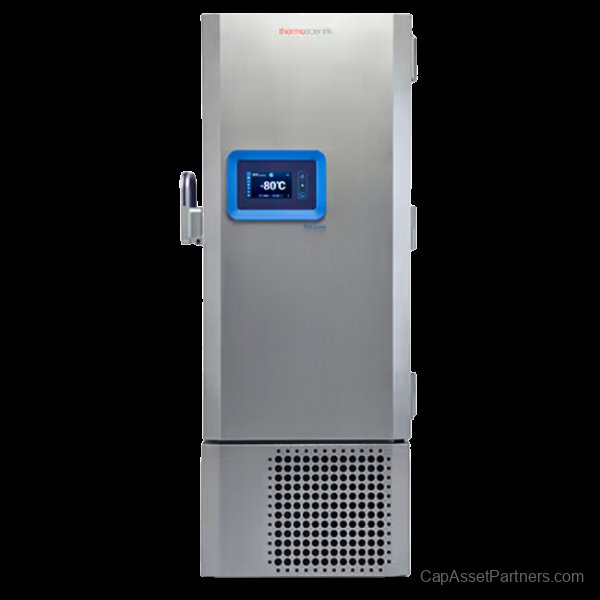

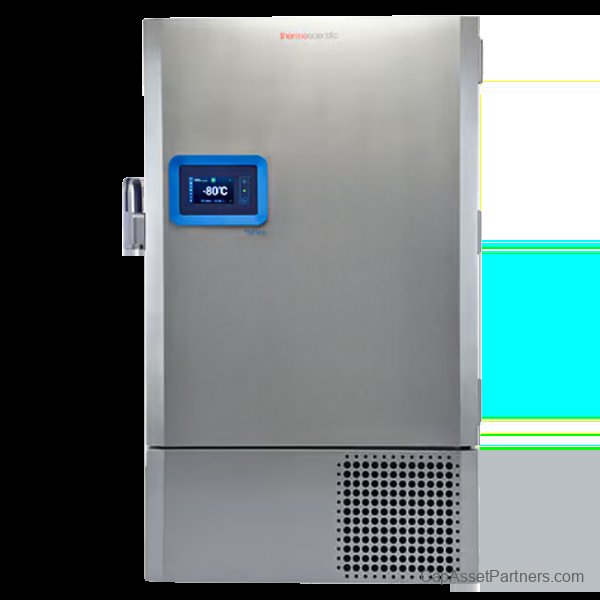

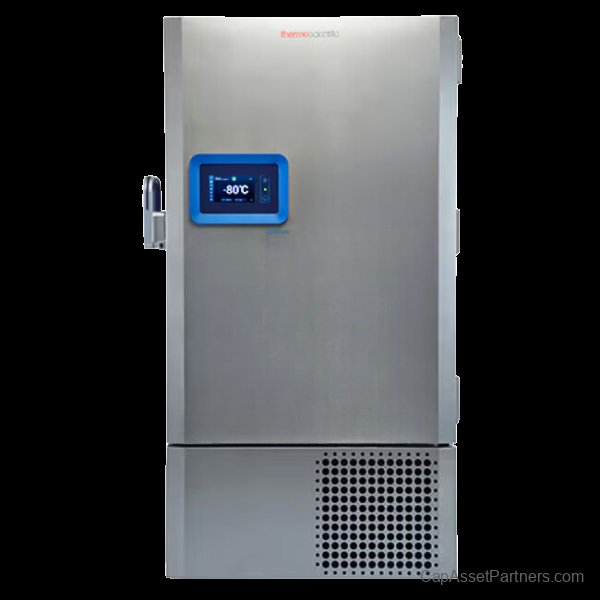

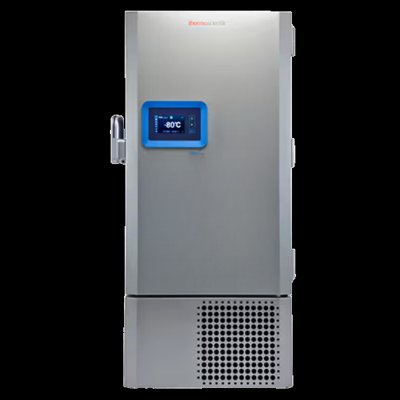

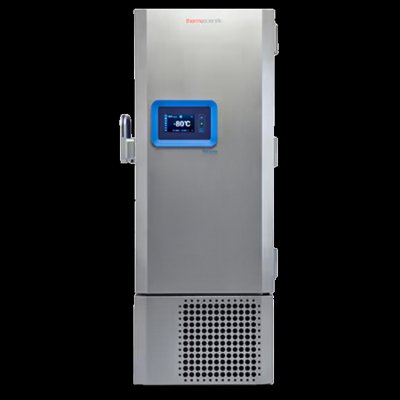

TSX Series Universal Ultra-Low Freezers With LN2 Back-Up
Introducing the TSX Series Universal Ultra-Low Freezers, engineered to provide unparalleled sample protection and storage with minimal temperature variations across the entire cabinet space. These ULT freezers operate quietly, boasting a noise level of less than 44 dBA, suitable for placement directly in laboratory environments. The advanced V-drive technology, paired with an adaptive controller, detects user behavior—such as door openings and periods of stability—allowing for optimized energy savings while ensuring reliable sample protection.
Key Features
- Innovative Universal V-Drive technology for energy efficiency
- Intuitive touchscreen LCD for ease of use
- Compatible with Thermo Scientific™ Instrument Connect for streamlined operation
- Rapid recovery time after door openings
- Audible and visual alarms for temperature extremes, wireless connectivity available
- Comprehensive system, environmental, and connectivity alarms
- Two rear probe access ports for enhanced monitoring
- Low peak variation to maintain sample integrity
- Durable stainless steel shelves for maximum longevity
- Standard key lock and padlock loop for added security
- Touch-screen interface designed for use with latex gloves
- Minimum of 16 open-air probes for precise temperature monitoring
- Featuring a single solid exterior swing door with two inner doors for efficient access
Included in Package
- LN2 back-up system for enhanced sample protection
- Two sliding drawer racks for optimized space management
Certifications
- ENERGYSTAR Certified for energy efficiency
- ACT labeled for environmental sustainability
- Meets UL 61010, CE, and ISO 13485 certifications
- ISO Class 5.5 Cleanroom compliant for controlled environments
Storage Capacity
- Compatible with CryoBoxes™ (quantity varies by unit model):
- 400 CryoBoxes™ - TSX40086FARAKLN*
- 500 CryoBoxes™ - TSX50086FARAKLN*
- 600 CryoBoxes™ - TSX60086FARAKLN*
- 700 CryoBoxes™ - TSX70086FARAKLN*
Specifications
| SKU |
Shelf Type |
# of Shelves |
Door Type |
Operating Temperature Range |
Warranty |
Certification |
| TSX40086FARAKLN |
1 Fixed, 3 Adjustable |
4 Shelves |
Solid Swing Door, 4 Inner Doors |
-40°C to -86°C |
5 Year |
ENERGYSTAR, ACT Labeled |
| TSX50086FARAKLN |
1 Fixed, 3 Adjustable |
4 Shelves |
Solid Swing Door, 4 Inner Doors |
-40°C to -86°C |
5 Year |
ENERGYSTAR, ACT Labeled |
| TSX60086FARAKLN |
1 Fixed, 3 Adjustable |
4 Shelves |
Solid Swing Door, 4 Inner Doors |
-40°C to -86°C |
5 Year |
ENERGYSTAR, ACT Labeled |
| TSX70086FARAKLN |
1 Fixed, 3 Adjustable |
4 Shelves |
Solid Swing Door, 4 Inner Doors |
-40°C to -86°C |
5 Year |
ENERGYSTAR, ACT Labeled |
Additional Information
| SKU |
Electrical Information |
Dimensions |
Refrigerant |
Plug Type |
| TSX40086FARAKLN |
100-230V, 50/60Hz, 1-PH |
37.6 in x 28.3 in x 78.0 in |
R290 (1st Stage), R170 + R290 Mix (2nd Stage) |
NEMA 5-15 |
| TSX50086FARAKLN |
100-230V, 50/60Hz, 1-PH |
37.6 in x 34.0 in x 78.0 in |
R290 (1st Stage), R170 + R290 Mix (2nd Stage) |
NEMA 5-15 |
| TSX60086FARAKLN |
100-230V, 50/60Hz, 1-PH |
37.6 in x 39.6 in x 78.0 in |
R290 (1st Stage), R170 + R290 Mix (2nd Stage) |
NEMA 5-15 |
| TSX70086FARAKLN |
100-230V, 50/60Hz, 1-PH |
37.6 in x 45.2 in x 78.0 in |
R290 (1st Stage), R170 + R290 Mix (2nd Stage) |
NEMA 5-15 |
Note: CryoBoxes™ dimensions are 5 in x 5 in x 2 in.
