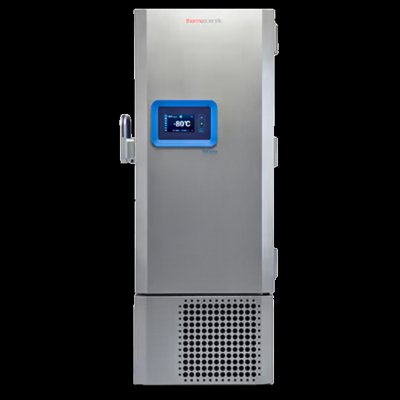

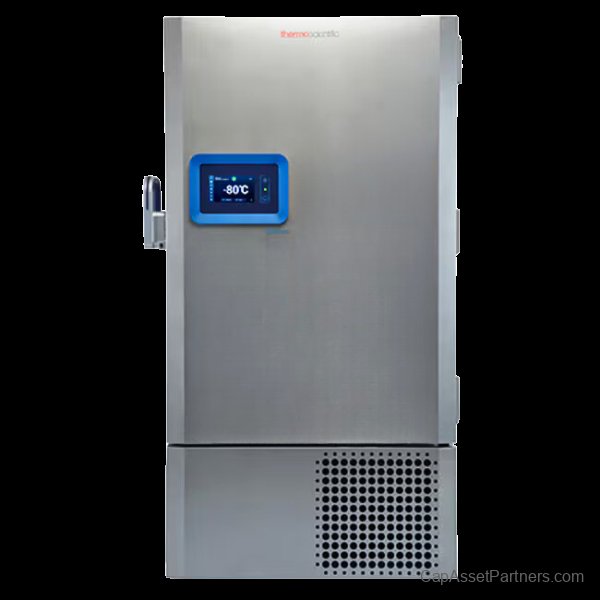

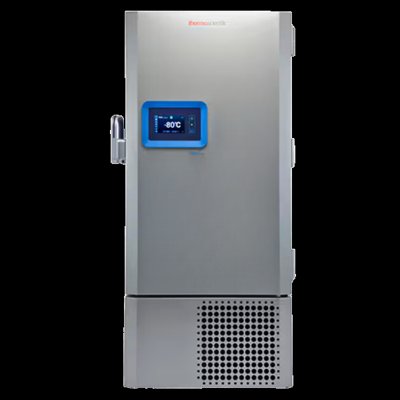

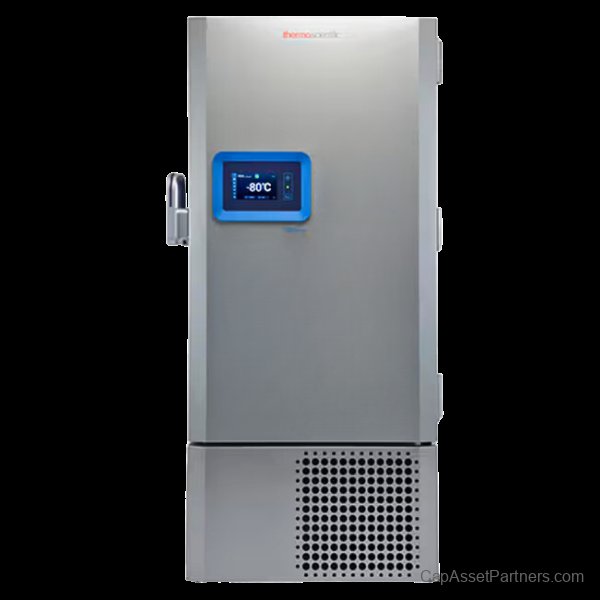

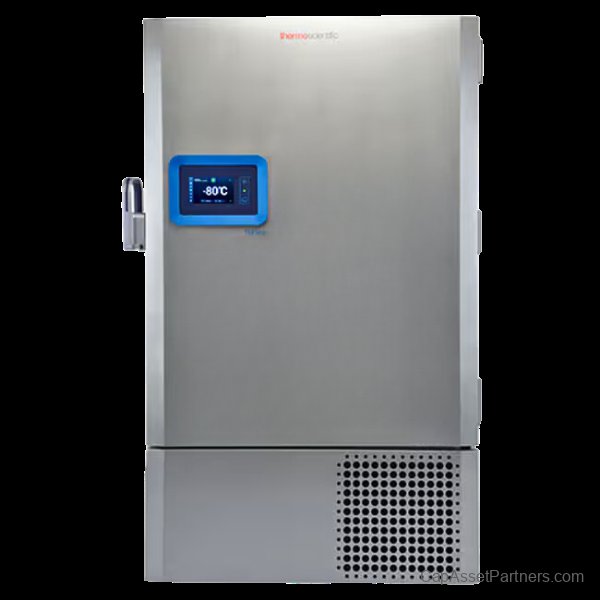

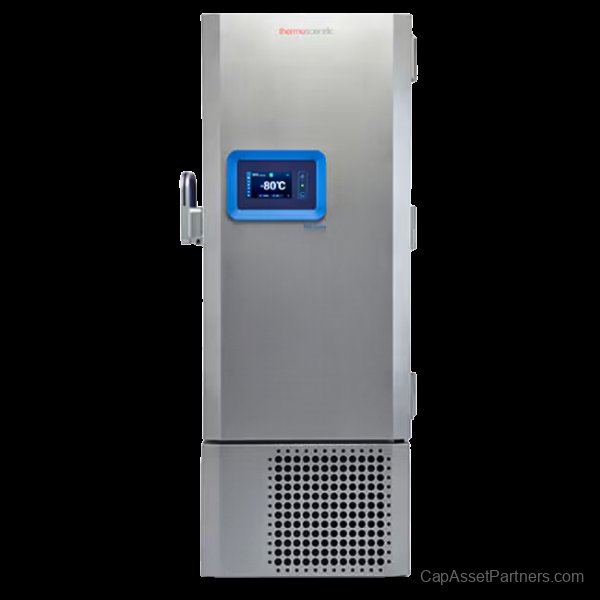

TSX Series Universal Ultra-Low Freezers with Sliding Drawer Racks
The TSX Series Universal Ultra-Low Freezers are engineered to provide exceptional protection for your valuable samples, ensuring minimal temperature fluctuations throughout the entire cabinet. Designed for quiet operation at less than 44 dBA, these ultra-low freezers can be easily integrated into laboratory environments without disruption. Featuring advanced V-Drive technology, the adaptive controller intelligently monitors usage patterns, enhancing energy efficiency while maintaining uncompromised sample safety.
Key Features
- Universal V-Drive technology for optimized performance
- User-friendly touchscreen LCD interface, operable with gloves
- Compatible with Thermo Scientific™ Instrument Connect for monitoring
- Rapid recovery times after door openings
- Audible and visual high and low-temperature alarms, equipped with wireless capabilities
- Comprehensive system, environmental, and connectivity alarm notifications
- Convenient rear probe access ports for easy monitoring
- Low peak variation ensures stable temperature conditions
- Durable stainless steel shelves built for longevity
- Enhanced security with standard key lock, padlock loop, and parameter lock features
- Accommodates a minimum of 16 open-air probes for versatile usage
- Compact, single solid exterior swing door with two inner doors for easy access
Certifications
- ENERGYSTAR Certified for energy efficiency
- ACT labeled for sustainability
- Compliant with UL 61010, CE, and ISO 13485 standards
- Designed for ISO 5.5 Cleanroom environments
Sample Capacity
Designed to hold a variety of CryoBoxes™, with capacity depending on the unit:
- 400 CryoBoxes™ - TSX40086FARAK
- 500 CryoBoxes™ - TSX50086FARAK
- 600 CryoBoxes™ - TSX60086FARAK
- 700 CryoBoxes™ - TSX70086FARAK
Specifications
| SKU |
Shelf Type |
# of Shelves |
Door Type |
Operating Temperature Range |
Certification |
| TSX40086FARAK |
1 Fixed, 3 Adjustable |
4 Shelves |
Solid Swing Door, 4 Inner Doors |
-40°C to -86°C |
ENERGYSTAR, ACT Labeled |
| TSX50086FARAK |
1 Fixed, 3 Adjustable |
4 Shelves |
Solid Swing Door, 4 Inner Doors |
-40°C to -86°C |
ENERGYSTAR, ACT Labeled |
| TSX60086FARAK |
1 Fixed, 3 Adjustable |
4 Shelves |
Solid Swing Door, 4 Inner Doors |
-40°C to -86°C |
ENERGYSTAR, ACT Labeled |
| TSX70086FARAK |
1 Fixed, 3 Adjustable |
4 Shelves |
Solid Swing Door, 4 Inner Doors |
-40°C to -86°C |
ENERGYSTAR, ACT Labeled |
Electrical Information
| SKU |
Electrical Information |
Dimensions (inches) |
Refrigerant |
Plug Type |
| TSX40086FARAK |
100-230V, 50/60Hz, 1-PH |
37.6 x 28.3 x 78.0 |
R290 (1st Stage), R170 + R290 Mix (2nd Stage) |
NEMA 5-15 |
| TSX50086FARAK |
100-230V, 50/60Hz, 1-PH |
37.6 x 34.0 x 78.0 |
R290 (1st Stage), R170 + R290 Mix (2nd Stage) |
NEMA 5-15 |
| TSX60086FARAK |
100-230V, 50/60Hz, 1-PH |
37.6 x 39.6 x 78.0 |
R290 (1st Stage), R170 + R290 Mix (2nd Stage) |
NEMA 5-15 |
| TSX70086FARAK |
100-230V, 50/60Hz, 1-PH |
37.6 x 45.2 x 78.0 |
R290 (1st Stage), R170 + R290 Mix (2nd Stage) |
NEMA 5-15 |
