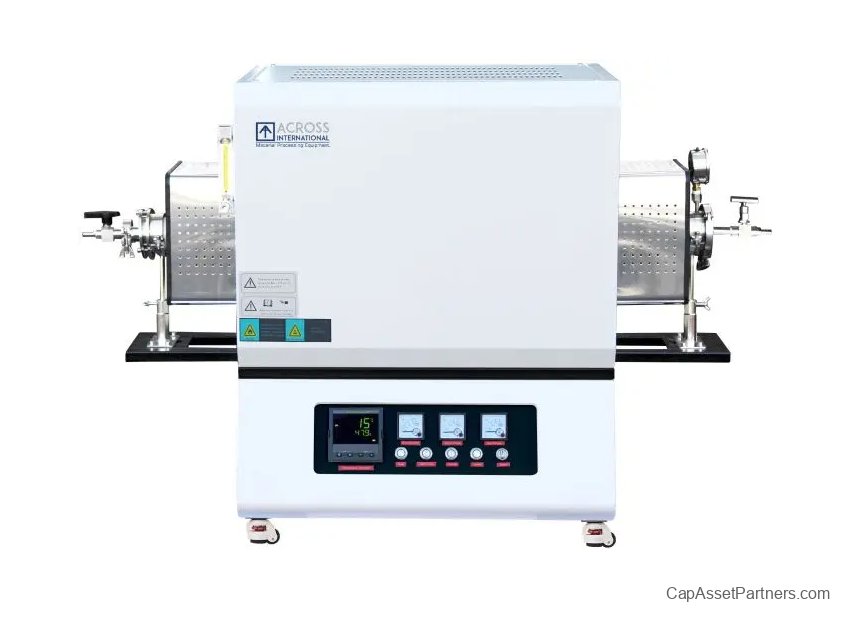

Tube Furnace with Eurotherm Controller - TF1750 Series
The TF1750 series tube furnace is expertly designed for precision and efficiency, featuring a chamber constructed with high-quality Mitsubishi 1900 grade alumina fiber insulation and 1900 grade molybdenum silicide heating elements. Its innovative double-walled steel internal housing minimizes heat loss, making it an excellent choice for laboratories and research facilities.
Key Features:
- Compact & Portable: Lightweight design ensures easy transportation without compromising on performance.
- Superior Sealing: Dual flanges support enhances sealing capabilities, prolonging tube life.
- Smart Control: Microprocessor-based self-tuning PID control optimizes thermal processes with minimal overshoot.
- Versatile Atmosphere Processing: Allows multiple atmosphere processes in a single cycle (e.g., binder burn out in air and sintering under vacuum or inert gas).
- Monitoring & Troubleshooting: Built-in ammeter and dual voltmeters facilitate easy monitoring of the unit's performance.
- Computer Connectivity: Integrated computer interface enables further control options for enhanced user interaction.
- Long-lasting Thermocouple: Equipped with a durable type B thermocouple for precise temperature measurement.
- CE Compliance: Meets stringent European safety and performance standards.
Safety Features:
- Overheat Protection: Automatically shuts down the furnace if temperatures exceed safe limits or if the thermocouple fails.
- Power Failure Resilience: The furnace resumes operation immediately after power is restored, ensuring minimal downtime.
- Warning: Ensure the furnace is never filled with explosive gases such as Hydrogen, Carbon Monoxide, or Methane.
Included in the TF1750 Series:
| Quantity |
Product |
| 1 set |
Stainless steel vacuum sealing flange set with pressure meter |
| 1 piece |
Alumina tube 80mm OD x 1000mm length |
| 1 piece |
Thermocouple |
| 1 piece |
Flow meter |
| 2 pieces |
Spare heating element (SiC) |
| 1 piece |
Stainless steel hook |
| 4 pieces |
Alumina ceramic thermal block |
| 1 pair |
Thermal gloves |
| 2 pieces |
Spare fuse |
| 5 pieces |
Crucible |
| 1 set |
USB/RS485 Computer interface kit |
| 2 pieces |
Furnace and Eurotherm or Shimaden controller manual |
Specifications:
| SKU |
Temperature Accuracy |
Max Vacuum |
Power Requirement |
| TF1750.80 |
±1°C |
Pressure: 0.001 Pa / 0.0075 millitorr / 0.00001 mbar |
208-240VAC, 50/60 Hz, Single Phase |
Additional Information:
| SKU |
Dimensions |
| TF1750.80 |
25" x 19" x 27" |
