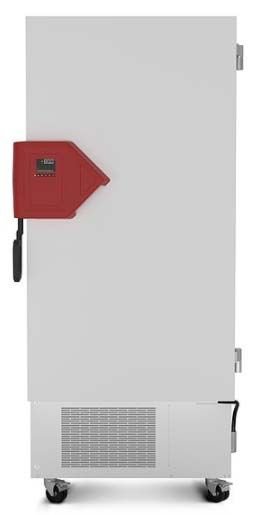

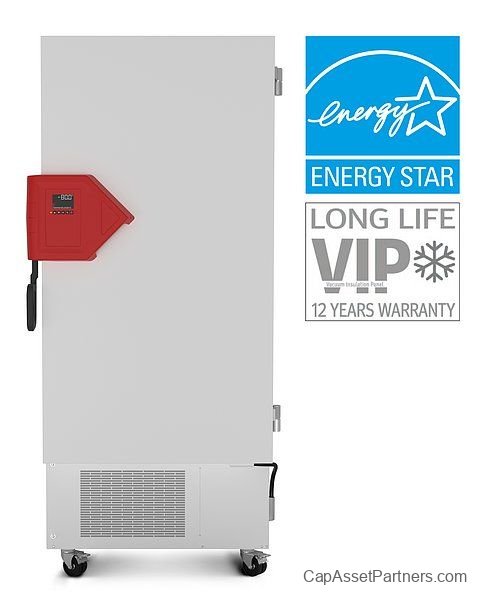

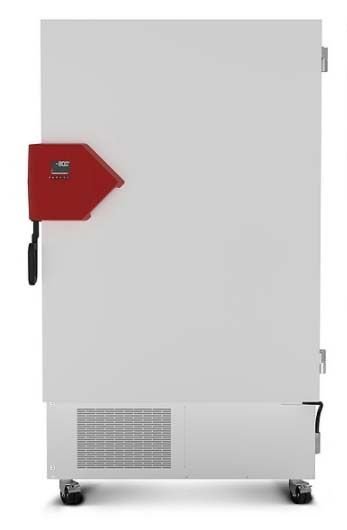

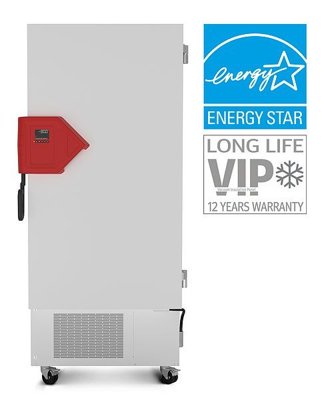

UFV Series Ultra-Low Temperature Freezers
The UFV Series Ultra-Low Temperature Freezers are engineered for the optimal storage of sensitive samples at temperatures as low as -90°C. Designed with climate-neutral refrigerants, these freezers marry exceptional environmental responsibility with low energy consumption, ensuring your vital samples are preserved without compromising sustainability.
Key Features:
- Temperature Range: -90°C to -40°C
- Energy Efficiency: Lowest energy consumption in its class
- Cooling System: Powerful cascade compressor cooling unit
- Refrigerants: Environmentally friendly refrigerants R-290 and R-170
- Insulation: Advanced thermal insulation with long-life vacuum insulation panels (VIPs)
- Ice Prevention: Innovative door gasket concept minimizes ice buildup
- Ergonomics: Easy-to-use ergonomic door handle

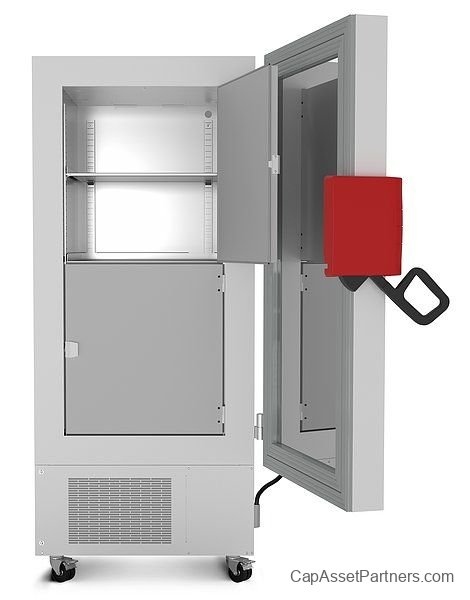

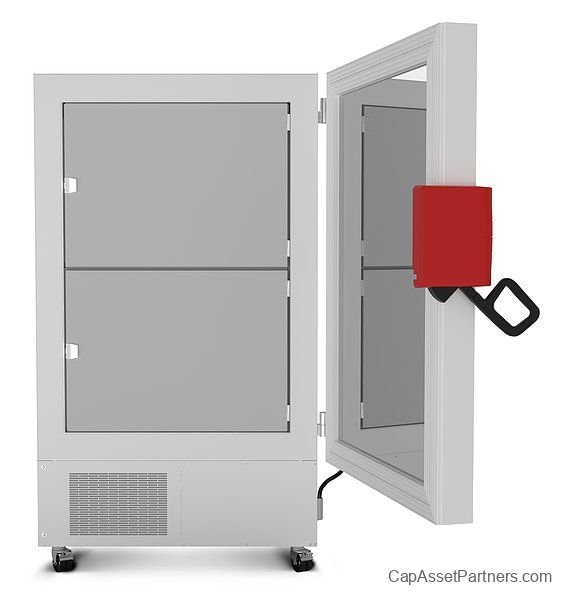

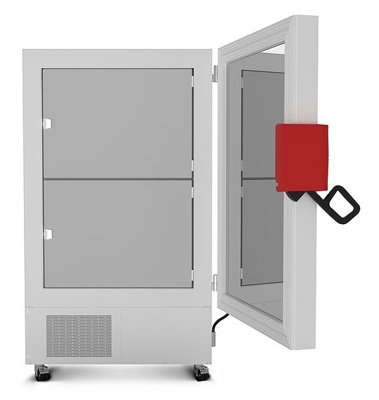

- Interior: Rust-proof stainless steel interior with detachable inner doors
- Shelving: Flexible placement with three adjustable stainless-steel shelves
- Cooling Options: Water cooling available (depending on version)
- Alarm System: Zero-voltage alarm contact for integration into in-house alarm systems
- Data Logging: Built-in internal data logger for easy measurement retrieval via USB
- Networking: Ethernet interface for enhanced connectivity
- Access Ports: Two rear access ports (28 mm)
Benefits:
- Significantly reduced energy consumption, leading to cost savings
- Utilization of eco-friendly refrigerants R-290 and R-170 for a lower carbon footprint
- Exceptional insulation technology enhances temperature stability and energy efficiency
- Durable and hygienic design with a fully stainless steel interior ensures longevity and ease of maintenance
Specifications:
| SKU |
Operating Temperature Range |
Temperature Fluctuation |
Temperature Variation |
Hinge |
| 9020-0351 |
-40°C to -90°C |
± 1.5 at -80°C |
± 2.5 at -80°C |
Right |
| 9020-0352 |
-40°C to -90°C |
± 1.5 at -80°C |
± 2.5 at -80°C |
Right |
| 9020-0353 |
-40°C to -90°C |
± 1.5 at -80°C |
± 2.5 at -80°C |
Right |
| 9020-0354 |
-40°C to -90°C |
± 1.5 at -80°C |
± 2.5 at -80°C |
Right |
Additional Information:
| SKU |
Max. # of Shelves |

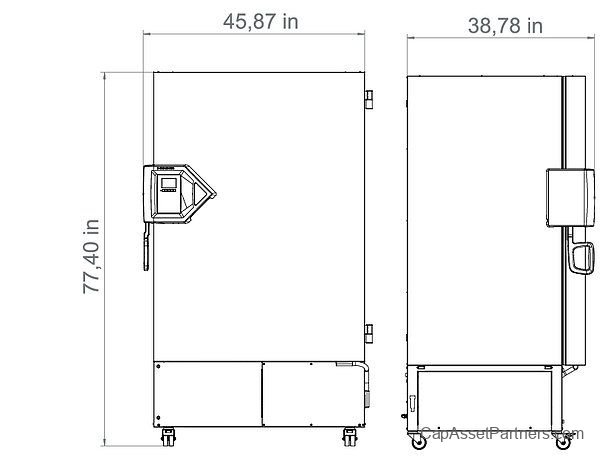

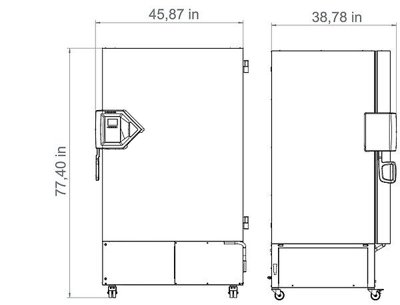

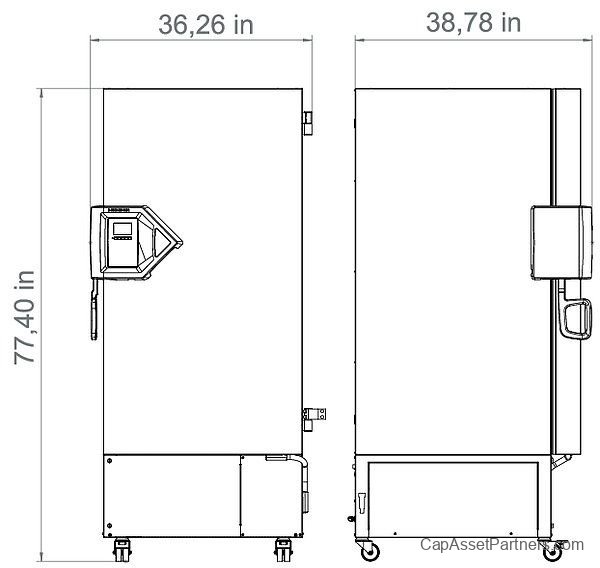

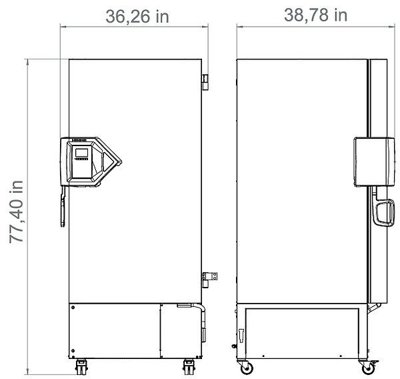

Dimensions |
Power Requirement |
Refrigerant |
| 9020-0351 |
13 Shelves |
36.96 in x 32.54 in x 77.5 in |
120V, 60Hz |
R-290 & R-170 |
| 9020-0352 |
13 Shelves |
36.96 in x 43.7 in x 77.5 in |
120V, 60Hz |
R-290 & R-170 |
| 9020-0353 |
13 Shelves |
36.96 in x 32.54 in x 77.5 in |
120V, 60Hz |
R-290 & R-170 |
| 9020-0354 |
13 Shelves |
36.96 in x 43.7 in x 77.5 in |
120V, 60Hz |
R-290 & R-170 |
