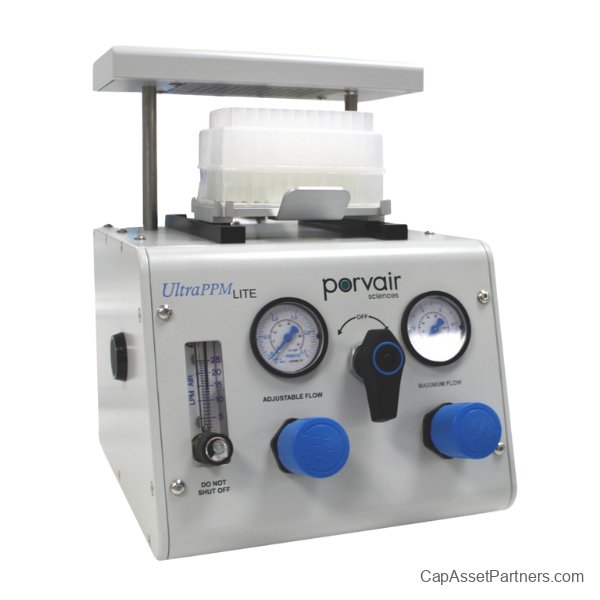

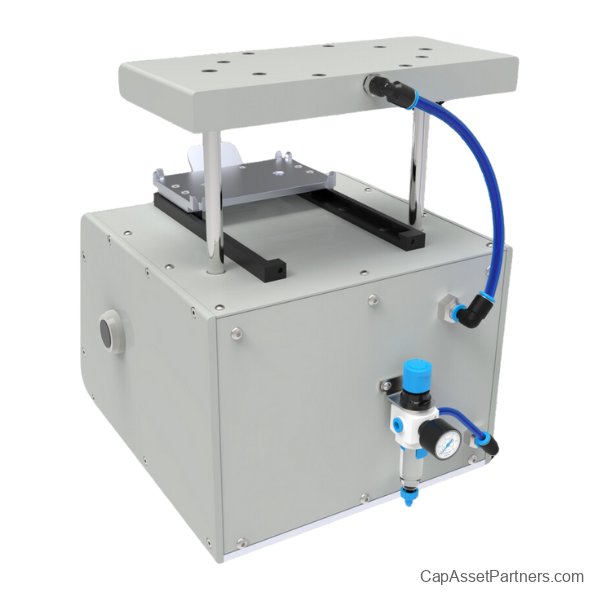

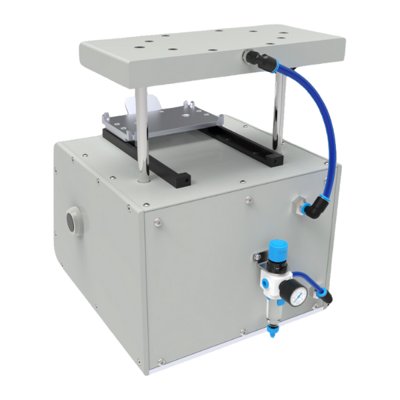

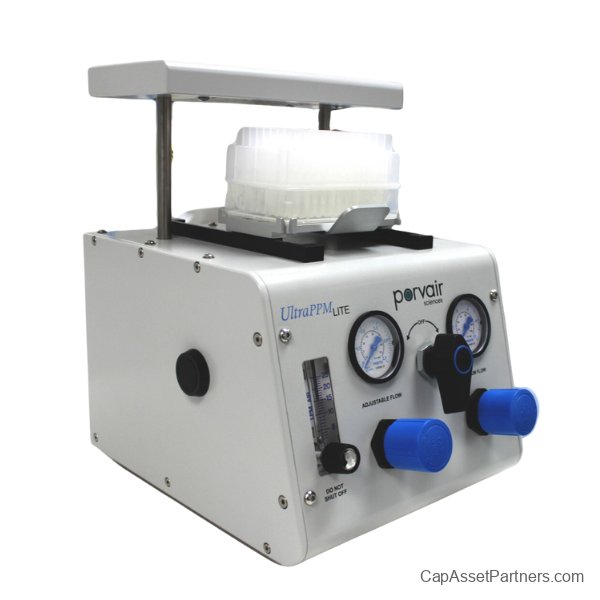

Ultra Positive Pressure Manifold LITE Filtration Systems

The Ultra Positive Pressure Manifold Filtration System (UltraPPM LITE) is the pinnacle of advanced manifold engineering, designed to inspire confidence in chromatography workflows by ensuring optimal sample processing. This innovative system maintains a uniform pressure across all filter wells, paving the way for seamless sample flow and maximal analyte recovery. With an adaptable design that allows for precise adjustment of settings, the UltraPPM LITE affords users the confidence to process samples effortlessly, making downstream procedures simpler and more reliable.

Key Features:

• Dual Range Controls: Fine-tune both flow and pressure settings with ease.
• User-Friendly Operation: Effortless to secure and operate, designed for efficiency.
• Robust Performance: Perfectly suited for processing challenging and viscous samples.
• Uniform Airflow Delivery: Achieves precise and steady airflow from the manifold head.
• Lockable Pressure Mechanism: Guarantees consistent extraction results, sample after sample.
• Real-Time Flow Confirmation: Open design allows for immediate visual verification of sample flow.
• Safety Features: 2-button operation for enhanced user safety.
• Versatile Compatibility: Works with all process plates up to 110 mm in height.
• Interchangeable Microplate Heads: Compatible with 24, 48, 96, and 384 well microplates.
• Gas Supply Pressure: 5.5-7 bar (80-100 PSI) for optimal operation.
• Gas Regulator Details:
  • Gas regulator pressure: 0.3-1 MPa / 3-10 bar / 43-145 PSI
  • Low pressure regulator: 0-0.1 MPa / 0-1 bar / 0-14.5 PSI
  • High pressure regulator: 0-0.4 MPa / 0-4 bar / 0-60 PSI
  • Gas flow meter: 3-12 L/min
• Operating Temperature: Designed to operate efficiently at room temperature.

Applications:

• Volatile Samples: Perfect for samples requiring boiling elimination.
• Sensitive Compounds: Utilizes clean, moisture-free gas for enhanced preservation.
• Viscous Liquids: High pressure capabilities allow for effective processing of thick samples.

Specifications:

Note: Well heads are sold separately. For further details, please contact our support team.
