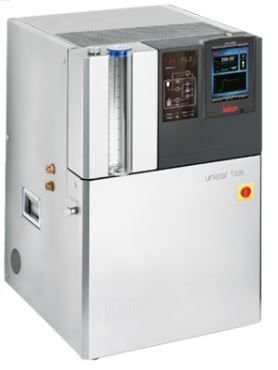

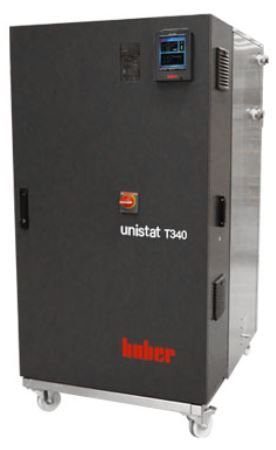

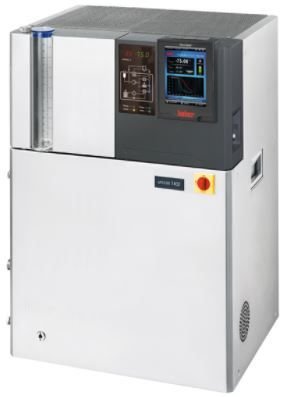

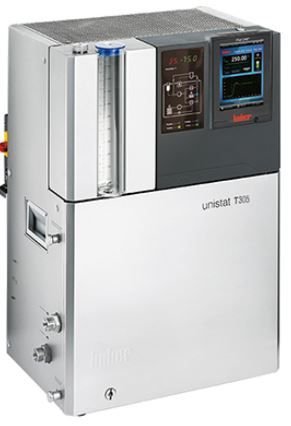

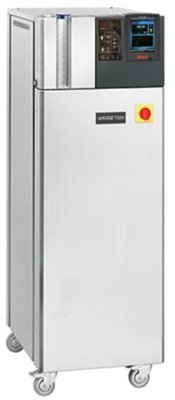

Unistat T Series Dynamic Temperature Control Systems
The Unistat T Series Dynamic Temperature Control Systems are engineered with cutting-edge technology that ensures economic efficiency and reduced operational costs. These advanced systems are hydraulically sealed, significantly extending the service life of the temperature control fluid by preventing loss through vapors and oxidation, thus promoting resource conservation. Designed with comprehensive safety features, these units are perfectly suited for unsupervised continuous operation.
Key Features:
- Precise and reproducible temperature control results.
- Wide temperature range capabilities without requiring fluid changes.
- Pilot ONE controller equipped with a user-friendly touch screen navigation menu.
- Adaptive temperature control for optimal performance.
- Highly efficient circulation pump for effective temperature management.
- Equipped with RS232, Ethernet, and two USB interfaces for versatile connectivity.
- Designed for efficient operation, saving both time and costs.
- Proven functionality tailored for the process industry.
- Your setup includes the E-grade "Professional" for enhanced performance.
Specifications:
| SKU |
Pump Max |
Power Requirement |
Controller |
Safety |
| 1003.0031.01 |
0.9 bar |
400 V/60 Hz |
Pilot ONE |
III/FL |
| 1003.0033.01 |
0.9 bar |
400 V/60 Hz |
Pilot ONE |
III/FL |
| 1003.0035.01 |
0.9 bar |
400 V/60 Hz |
Pilot ONE |
III/FL |
| 1083.0008.01 |
3.5 bar |
400 V/60 Hz |
Pilot ONE |
III/FL |
| 1083.0007.01 |
1.5 bar |
400 V/50 Hz |
Pilot ONE |
III/FL |
| 1004.0044.01 |
2.5 bar |
380-400 V/60 Hz |
Pilot ONE |
III/FL |
| 1024.0025.01 |
2.5 bar |
360-460 V/60 Hz |
Pilot ONE |
III/FL |
| 1038.0006.01 |
0.9 bar |
400 V/60 Hz |
Pilot ONE |
III/FL |
Additional Information:
| SKU |
Width |
Depth |
Height |
| 1003.0031.01 |
16.73 in |
9.84 in |
24.84 in |
| 1003.0033.01 |
16.73 in |
9.84 in |
24.84 in |
| 1003.0035.01 |
16.73 in |
9.84 in |
24.84 in |
| 1083.0008.01 |
21.26 in |
26.69 in |
28.31 in |
| 1083.0007.01 |
21.26 in |
26.69 in |
28.31 in |
| 1004.0044.01 |
21.26 in |
26.69 in |
46.22 in |
| 1024.0025.01 |
31.50 in |
41.73 in |
62.99 in |
| 1038.0006.01 |
19.88 in |
15.75 in |
30.12 in |
Heat Transfer Fluids:
Utilizing Huber Heat Transfer Fluids ensures optimal thermodynamic performance while remaining environmentally conscious. Selecting the appropriate fluid is crucial for effective heat transfer, ensuring consistent, reliable operation and optimal temperature control. Please consult our compatibility chart when selecting your fluid during checkout. For further inquiries, feel free to reach out for assistance.
